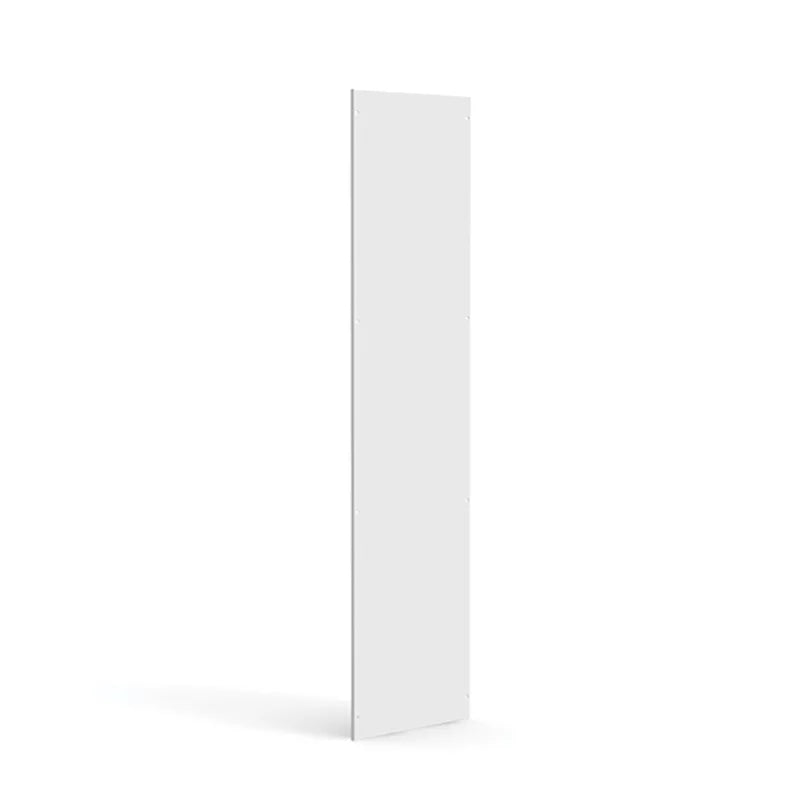

Hoffman SPM2006R5 | Side Panel, SPM, 1964x19x562mm, Light Gray, Mild Steel
Easy one man assembly. Sealed by an extruded, one piece polyurethane gasket and mounted with 8 screws. Can be replaced by the side door DNS.
Hoffman - SPM2006R5 - Features
- These side panels will ensure that the ingress protection is maintained, which means that the electrical components will operate without any disturbances and protect personnel from injuries.
- Feature: a set of two panels to close the sides of single or bayed combinable floor standing enclosures
- Advantage: provides ingress protection for enclosure configurations
- Benefit: ensures that the installed electrical components are safe
- Protection rating of IP66, NEMA Type 4, 12 when used in combination with MSC-HP.
- BULLETIN NUMBER: FCY
Specifications
Specifications
Hoffman - SPM2006R5 - Product Categories
- Industrial
- Industrial Enclosure Accessories
- IEC Enclosure Accessories
Hoffman - SPM2006R5 - Specifications
| Brand Name | Hoffman |
|---|---|
| Manufacturer Part Number | SPM2006R5 |
| Item Description | Side Panel, SPM, 1964x19x562mm, Light Gray, Mild Steel |
| Height | 77.32 in / 1964 mm |
| Width | 0.75 in / 19 mm |
| Depth | 22.13 in / 562 mm |
| Protection Rating | NEMA Type 4; NEMA Type 12; IP66 |
| Material | Mild Steel |
| Finish | Powder Coated |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Thickness | 16 ga / 1.5 mm |
| Package Quantity | 2 |
| Weight | 59.75 lb |
