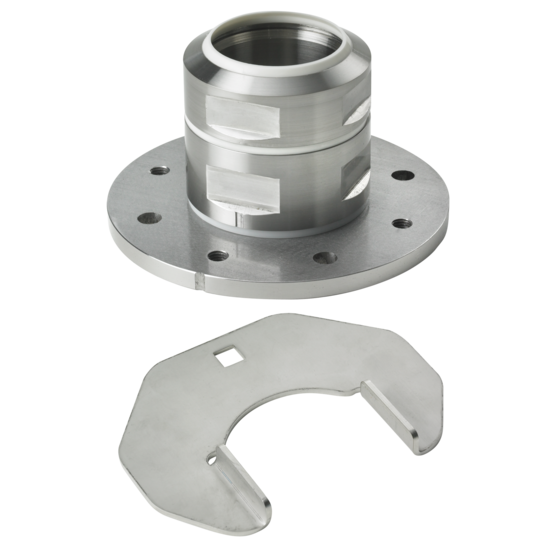

Hoffman SSBBSS | Syspend Sanitary HMI Swivel Base Bracket, SS Type 304
Regular price
$1,702.65
Unit price
Brand: Hoffman
|
SKU:
654767
Regular price
$1,702.65
Unit price
Description
Description
Syspend Sanitary HMI Swivel Base Bracket provides a means of attaching tube to the floor or a machine. Arm can be rotated or turned 330 degrees. Syspend-Lok attachment method prevents tubes from turning and pulling out of fittings and provides a water-tight connection.
Main Features
- Type 304 polished stainless steel
- Includes 4 set screws that provide means of leveling the entire suspension system
- Surface mounting fasteners are not provided
- Syspend-Lok Wrench Head for attaching base bracket to tubes is included
- Strap wrench or spanner wrench that opens to 80 mm or greater can also be used
- Not compatible with Syspend Sanitary HMI Base Bracket Cover
Specifications
Specifications
Specifications
| Height | 3.52 in / 89.408 mm |
|---|---|
| Width | 6.5 in / 165.1 mm |
| Depth | 6.5 in / 165.1 mm |
| Protection Rating | IP54; IP66; IP69K |
| Material | Stainless Steel 304 |
| Color | Unpainted |
| Finish | Polished |
| Thickness | 0.45 in / 11.4 mm |
| Weight | 7.9 lb |
| BULLETIN NUMBER | VM9 |
