Hoffman ST1016414 | IP54 Thin 10" Filter Fan, 115V, RAL 7035
Regular price
$188.07
Unit price
Brand: Hoffman
|
SKU:
646771
Regular price
$188.07
Unit price
Description
Description

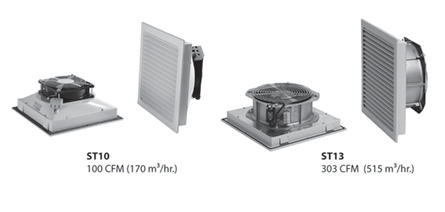

Hoffman ST1016414 | IP54 Thin 10" Filter Fan, 115V, RAL 7035
IP54 Thin 10" Filter Fan 115V 7035, Bulletin MCLF (Filter Fans), Size/Dims: 9.84x9.84x4.02
Hoffman - ST1016414 - Features
- Thin depth to minimize cabinet intrusion
- Terminal wire connections
- Similar cut-out sizes as other filter fan manufacturers
- Optional thermostat available to save energy and extend service life
- Standard foam-in-place gasket
- Click-fit design quickly installs into enclosure wall; no tools or screws required
- ST13 has reverse airflow option available to push/pull air through higher static pressure
- Enclosure side wall mounting
- Simple snap-open grille for easy filter replacement
- Applications
- Package handling equipment
- Industrial automation
- Wind energy systems
- Food and beverage process controls
- Automotive assembly
- Finish
- RAL 7035 light-gray UV-resistant plastic standard
- RAL 9011 black UV-resistant plastic optional
- Accessories
- Thermostat
- Replacement filters
- Rain shroud
- Specifications
- Operating temperature range of -4 F / -20 C to 149 F / 65 C
- Free airflow from 100 CFM (170 m3/hr.) to 303 CFM (515 m3/hr.)
- Service life hours range from 40000 to 57500
Specifications
Specifications
Hoffman - ST1016414 - Product Categories
- Enclosures
- Enclosures
- Thermal Management
- Filter Fans
Hoffman - ST1016414 - Technical Information
| Amperage | 0.2 Amp |
|---|---|
| Applications | Industrial |
| Current | 0.2 Amp |
| Frequency | 50/60 Hz |
| Max Temperature | 131 degrees F |
| Min Temperature | 14 degrees F |
| Number of Phases | 1 Phase |
| Size | 9.84x9.84x4.02 in |
| Standard | CE,CSA (fan Motor Only),IP54 Standard,IP55 Optional,Type 12,UL/cUL Recognized |
| Type | ST10 100 CFM (170 M3/hr.) Thin Side-Mount Filter Fan |
| Voltage | 115 Volt |
Hoffman - ST1016414 - General Specifications
| Brand | nVent Hoffman |
|---|---|
| Sub Brand | Hoffman |
| 12-Digit UPC | 783510200251 |
| Finish | Gray |
| GTiN | 00783510200251 |
| Product UPC | 78351020025 |
| Weight | 2.54 lb |
