Hoffman ST1316414 | IP54 Thin 13" Filter Fan, 115V, RAL 7035
Regular price
$351.51
Unit price
Brand: Hoffman
|
SKU:
646788
Regular price
$351.51
Unit price
Description
Description
Hoffman ST1316414 | IP54 Thin 13" Filter Fan, 115V, RAL 7035
Click-fit design quickly installs into enclosure wall; no tools or screws required. Simple snap open grille for easy filter replacement. Enclosure side wall mounting. Reverse airflow option on SF13 models available to push/pull air through higher static pressure. Standard foam in place gasket. Similar cut out sizes as other filter fan manufacturers. Terminal wire connections. Optional thermostat available to save energy and extend service life.
Hoffman - ST1316414 - Features
- Simple snap-open grille for easy filter replacement
- Enclosure side wall mounting
- Standard foam-in-place gasket
- Thin depth to minimize cabinet intrusion
- Click-fit design quickly installs into enclosure wall; no tools or screws required
- Similar cut-out sizes as other filter fan manufacturers
- ST13 has reverse airflow option available to push/pull air through higher static pressure
- Optional thermostat available to save energy and extend service life
- Terminal wire connections
- Applications
- Food and beverage process controls
- Wind energy systems
- Package handling equipment
- Industrial automation
- Automotive assembly
- Finish
- RAL 7035 light-gray UV-resistant plastic standard
- RAL 9011 black UV-resistant plastic optional
- Accessories
- Thermostat
- Replacement filters
- Rain shroud
- Specifications

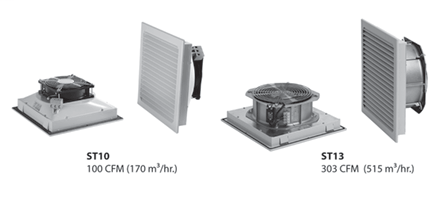

- Free airflow from 100 CFM (170 m3/hr.) to 303 CFM (515 m3/hr.)
- Service life hours range from 40000 to 57500
- Operating temperature range of -4 F / -20 C to 149 F / 65 C
Specifications
Specifications
Hoffman - ST1316414 - Product Categories
- Enclosures
- Enclosures
- Thermal Management
- Filter Fans
Hoffman - ST1316414 - Technical Information
| Amperage | 0.7 Amp |
|---|---|
| Applications | Industrial |
| Current | .70 Amp |
| Frequency | 50/60 Hz |
| Max Temperature | 131 degrees F |
| Min Temperature | 14 degrees F |
| Number of Phases | 1 Phase |
| Size | 12.72x12.72x4.80 in |
| Standard | CE,CSA (fan Motor Only),IP54 Standard,IP55 Optional,Type 12,UL/cUL Recognized |
| Type | ST13 303 CFM (515 m3/hr.) Thin Side-Mount Filter Fan |
| Voltage | 115 Volt |
Hoffman - ST1316414 - General Specifications
| Brand | nVent Hoffman |
|---|---|
| Sub Brand | Hoffman |
| 12-Digit UPC | 783510200565 |
| Finish | Gray |
| GTiN | 00783510200565 |
| Product UPC | 78351020056 |
| Weight | 7.50 lb |
