Brand: Hoffman
|
SKU:
646789

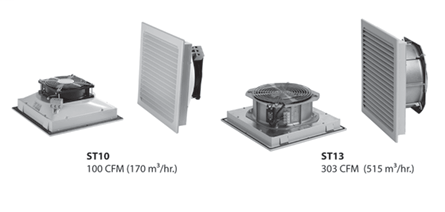

Hoffman ST1316414R | IP54 Thin 13" Reverse Filter Fan, 115V, RAL 7035
Regular price
$368.15
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman ST1316414R | IP54 Thin 13" Reverse Filter Fan, 115V, R...
Regular price
$368.15
Unit price
Description
Description
Hoffman ST1316414R | IP54 Thin 13" Reverse Filter Fan, 115V, RAL 7035
IP54 Thin 13" Rvrs Filter Fan 115V 7035, Bulletin MCLF (Filter Fans), Size/Dims: 12.72x12.72x4.80
Hoffman - ST1316414R - Features
- Standard foam-in-place gasket
- ST13 has reverse airflow option available to push/pull air through higher static pressure
- Optional thermostat available to save energy and extend service life
- Enclosure side wall mounting
- Terminal wire connections
- Click-fit design quickly installs into enclosure wall; no tools or screws required
- Thin depth to minimize cabinet intrusion
- Similar cut-out sizes as other filter fan manufacturers
- Simple snap-open grille for easy filter replacement
- Applications
- Food and beverage process controls
- Wind energy systems
- Automotive assembly
- Package handling equipment
- Industrial automation
- Finish
- RAL 9011 black UV-resistant plastic optional
- RAL 7035 light-gray UV-resistant plastic standard
- Accessories
- Rain shroud
- Replacement filters
- Thermostat
- Specifications
- Operating temperature range of -4 F / -20 C to 149 F / 65 C
- Free airflow from 100 CFM (170 m3/hr.) to 303 CFM (515 m3/hr.)
- Service life hours range from 40000 to 57500
Specifications
Specifications
Hoffman - ST1316414R - Product Categories
- Heat, Ventilation & Builder Products
- Exhaust & Ventilation
- Air Filters
Hoffman - ST1316414R - Technical Information
| Amperage | 0.7 Amp |
|---|---|
| Applications | Industrial |
| Current | .70 Amp |
| Frequency | 50/60 Hz |
| Max Temperature | 131 degrees F |
| Min Temperature | 14 degrees F |
| Number of Phases | 1 Phase |
| Size | 12.72x12.72x4.80 in |
| Standard | CE,CSA (fan Motor Only),IP54 Standard,IP55 Optional,Type 12,UL/cUL Recognized |
| Type | ST13 303 CFM (515 m3/hr.) Thin Side-Mount Filter Fan |
| Voltage | 115 Volt |
Hoffman - ST1316414R - General Specifications
| Brand | nVent Hoffman |
|---|---|
| Sub Brand | Hoffman |
| 12-Digit UPC | 783510200626 |
| Finish | Gray |
| GTiN | 00783510200626 |
| Product UPC | 78351020062 |
| Weight | 7.50 lb |
