Brand: Hoffman
|
SKU:
654815
Hoffman T10S3RSS | Fan Shroud Kits, Type 3R, fits 10in fan, SS Type 304
Regular price
$1,157.92
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman T10S3RSS | Fan Shroud Kits, Type 3R, fits 10in fan, SS Type...
Regular price
$1,157.92
Unit price
Description
Description

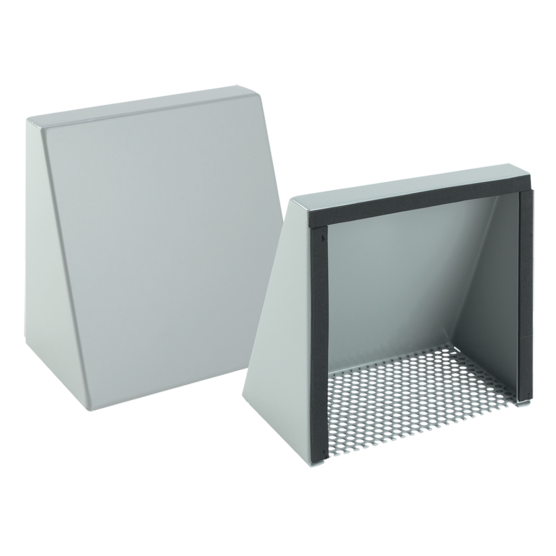

Fan Shroud Kit, Type 3R, protects enclosure openings from rain, sleet and snow. It comes with a gasket, ventilation screen, and is available in both painted mild steel and stainless steel.
Main Features
- Two fan shrouds per package
- Perforated ventilation screen
- Pressure-sensitive adhesive-backed gasket and mounting hardware
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 3R; File No. E61997
- cUL Listed per CSA C22.2 No 94; Type 3R; File No. E61997
- Maintains UL/cUL Type 3R rating when properly installed on UL/cUL Type 3R enclosure.
- NEMA/EEMAC Type 3R
- IEC 60529, IP22
Specifications
| Height | 12 in / 304.8 mm |
|---|---|
| Width | 12 in / 304.8 mm |
| Depth | 4.71 in / 119.634 mm |
| Protection Rating | NEMA Type 3R |
| Material | Stainless Steel 304 |
| Finish | Brushed #4 |
| Color | Unpainted |
| Thickness | 16 ga / 1.59 mm |
| Dimensions | 12.00 x 12.00 in / 305 x 305 mm |
| Weight | 10.5 lb |
| BULLETIN NUMBER | D85 |
