Brand: Hoffman
|
SKU:
646837

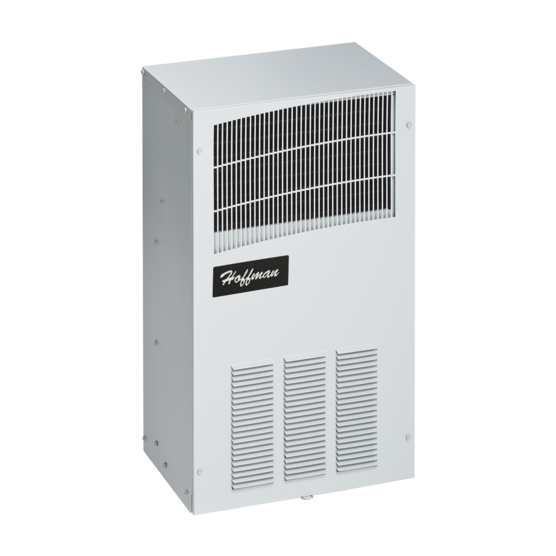

Hoffman T290426G100 | T-Series Mid-Size Outdoor without Heat, T29 4000 BTU 230v
Regular price
$5,562.56
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman T290426G100 | T-Series Mid-Size Outdoor without Heat, T29 4...
Regular price
$5,562.56
Unit price
Description
Description
T-Series Mid-Size Air Conditioners keep equipment cool at a range of heat loads. Their discreet design helps them to blend into blend into rugged factory or outdoor environments. Each unit is equipped with corrosion-resistant components, compressor heaters and head pressure controls for optimal outdoor performance.
Main Features
- Compact footprint to minimize real estate and maximize capacity
- Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
- R134A or R-407C refrigerant
- Models for 115, 230 and 460 VAC power input
- Outdoor model operating temperature range from -40 F/-40 C to 131 F/55 C
- Reliable mechanical thermostat on enclosure side of the unit
- Dual condenser-side air movers for performance redundancy
- Painted galvanized sheet-metal or stainless steel cover for rugged factory and outdoor environments
- Easy-mount flanges for simple installation
- Every unit functionally tested before shipping
- Exterior and fully recessed mounting options on many models
- Standard Outdoor Air Conditioner models include: telcordia GR-487 capable, thermostat, corrosion-resistant components, malfunction switch, compressor heater, head pressure control and enclosure heater
- Mounting hardware, gaskets and user manual furnished with the unit
Specifications
Specifications
Industry Standards
- UL/cUL Listed; Type 12, 3R, 4; 4X optional; File No. SA6453
- UR/cUR Recognized
- UR/cUR Recognized on select models, reference performance data tables.
- CE
- EAC
- Telcordia GR-487 capable
Specifications
| Height | 29 in / 736.6 mm |
|---|---|
| Width | 17 in / 431.8 mm |
| Depth | 11.3 in / 287.02 mm |
| Nominal Capacity Btu/h | 4000 Btu/h |
| Nominal Capacity Watts | 1172 W |
| Nominal Voltage | 230 V |
| Number of Phases | 1 |
| Voltage AC | 200 V |
| Operating Temperature | -40 to 131 °F / -40 to 55 °C |
| Max Current | 6.8 A |
| Protection Rating | NEMA Type 4; NEMA Type 3R |
| Remote Access Control | No |
| BULLETIN NUMBER | MCL |
