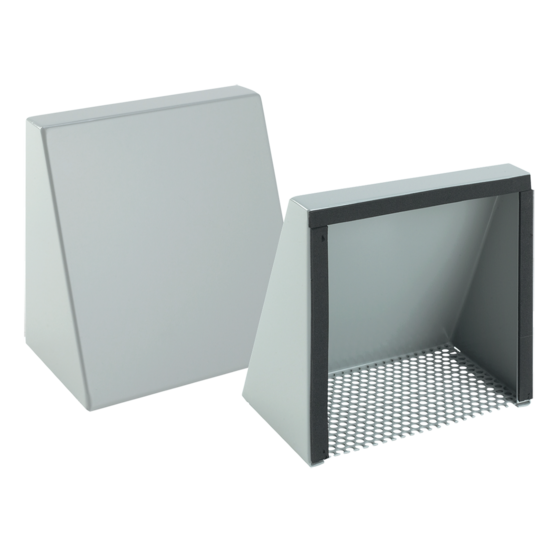

Hoffman T4S3RSS | Fan Shroud Kits, Type 3R, fits 4in fan, SS Type 304
Regular price
$700.25
Unit price
Brand: Hoffman
|
SKU:
654817
Regular price
$700.25
Unit price
Description
Description
Fan Shroud Kit, Type 3R, protects enclosure openings from rain, sleet and snow. It comes with a gasket, ventilation screen, and is available in both painted mild steel and stainless steel.
Main Features
- Two fan shrouds per package
- Perforated ventilation screen
- Pressure-sensitive adhesive-backed gasket and mounting hardware
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 3R; File No. E61997
- cUL Listed per CSA C22.2 No 94; Type 3R; File No. E61997
- Maintains UL/cUL Type 3R rating when properly installed on UL/cUL Type 3R enclosure.
- NEMA/EEMAC Type 3R
- IEC 60529, IP22
Specifications
| Height | 6 in / 152.4 mm |
|---|---|
| Width | 6 in / 152.4 mm |
| Depth | 4.69 in / 119.126 mm |
| Protection Rating | NEMA Type 3R |
| Material | Stainless Steel 304 |
| Finish | Brushed #4 |
| Color | Unpainted |
| Thickness | 16 ga / 1.59 mm |
| Dimensions | 6.00 x 6.00 in / 152 x 152 mm |
| Weight | 3.9 lb |
| BULLETIN NUMBER | D85 |
