Hoffman T706026G150 | T-Series Large Capacity Outdoor with Heat, T7...
Description
Description

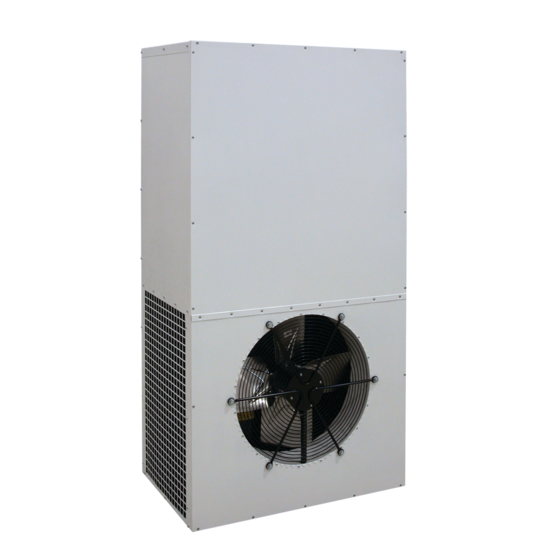

T-Series Large Capacity Air Conditioners keeps equipment cool even at peak heat loads. Their discreet design helps them to blend into rugged factory or outdoor environments. Each unit is equipped with corrosion-resistant components, compressor heaters and head pressure controls for optimal outdoor performance.
ProAir A/C may be more appropriate. Refer to ProAir A/C Chapter. Consult the Factory for availability and catalog number.
Main Features
- Compact footprint to minimize real estate and maximize capacity
- Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
- R-407C refrigerant
- Models for 230 and 460 VAC power input
- Operating temperature range from -40 F/-40 C to 131 F/55 C
- Reliable mechanical thermostat on enclosure side of the unit
- Dual condenser-side air movers for performance redundancy
- Painted galvanized sheet-metal cover for rugged factory and outdoor environments
- Exterior and fully recessed mounting options on many models
- Easy-mount flanges for simple installation
- Every unit functionally tested before shipping
- Standard Outdoor Air Conditioner models include telcordia GR-487 capable, thermostat, corrosion-resistant components, malfunction switch, compressor heater, head pressure control and enclosure heater
- Mounting hardware, gaskets and user manual furnished with the unit
Specifications
Specifications
Industry Standards
- UL/cUL Listed; Type 12, 3R, 4; 4X optional; File No. SA6453
- CE
- EAC
- Telcordia GR-487 capable
- CE
- EAC
- Telcordia GR-487 capable
Specifications
| Height | 69.77 in / 1772.158 mm |
|---|---|
| Width | 35.86 in / 910.844 mm |
| Depth | 22.94 in / 582.676 mm |
| Nominal Capacity Btu/h | 60000 Btu/h |
| Nominal Capacity Watts | 17584 W |
| Nominal Voltage | 230 V |
| Number of Phases | 1 |
| Voltage AC | 200 V |
| Operating Temperature | -40 to 122 °F / -40 to 50 °C |
| Max Current | 40 A |
| Protection Rating | NEMA Type 4 |
| Remote Access Control | No |
| BULLETIN NUMBER | MCL |
