Hoffman TEC24VCNTLRN | Thermoelectric Temperature Controller, 24v
Regular price
$474.27
Unit price
Brand: Hoffman
|
SKU:
646933
Regular price
$474.27
Unit price
Description
Description

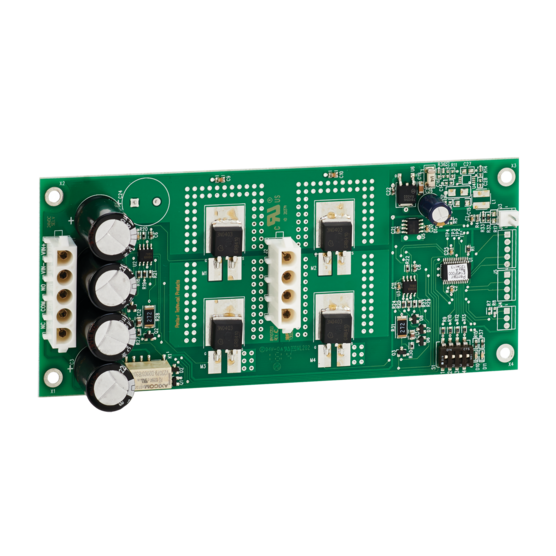

Thermoelectric Temperature Controller printed circuit board provides PWM (Pulse-Width-Modulation) regulation of cooling and heating output for TEC units.
Main Features
- Provides PWM (Pulse-Width-Modulation) regulation of cooling and heating output for TEC units
- Automatically switches between cooling and heating
- 4 cooling temperature set points range from 22.5 C to 35 C (35 C Factory Setting)
- 3 heating temperature set points range from -5 C to 15 C (15 C Factory Setting)
- Heating function can be easily disabled if desired
- On-board LEDS indicate low temp, high temp alarm, and overall system status
- Dry contact relay output provides for external alarm indication
Specifications
Specifications
Industry Standards
- UL Recognized; File No. E351017
Specifications
| Height | 3.19 in / 81.026 mm |
|---|---|
| Width | 6.5 in / 165.1 mm |
| Depth | 0.05 in / 1.27 mm |
| Weight | 1.7 lb |
| BULLETIN NUMBER | MCLT |
