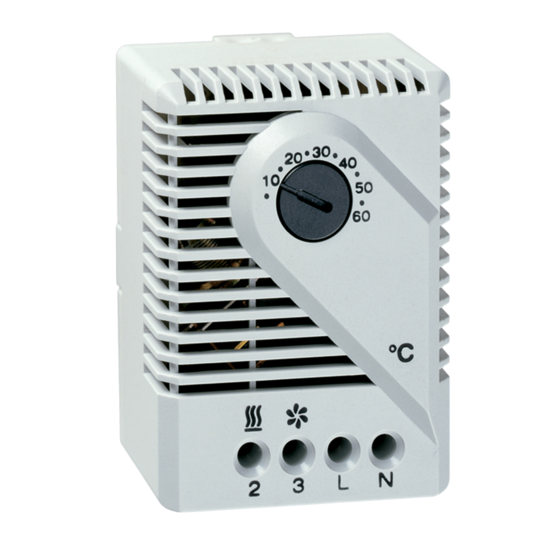

Hoffman THERM16C | Thermostat Controller, 115V, Celcius
Description
Description
Mechanical thermostat for controlling filter fans and heaters
The contact system of the regulator is subjected to environmental influences and contact restistance may change which can lead to a voltage drop and/or self-heating of contacts
If the Normally Closed contact is used, the switch temperature difference could be reduced by connecting terminal "N" (RF heating resistor). It causes thermal feedback which is subject to surrounding conditions and thus has to be determined for each individual application.
Voltage only needs to be specified if the optional use of the RF resistor is desired
Main Features
- Registers surrounding air and can switch inductive and resistive loads via snap-action contact
- Clips for vertically mounting on 35 mm DIN rail (EN 60715)
- An integrated resistor (RF) can be connected to improve the switch temperature difference
Specifications
Specifications
Industry Standards
- cURus; File No. E164102
- CE
Specifications
| Height | 2.64 in / 67.056 mm / 67 mm |
|---|---|
| Width | 1.97 in / 50.038 mm / 50 mm |
| Depth | 1.5 in / 38.1 mm / 38 mm |
| Material | Plastic |
| Voltage AC | 115 V |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Finish | Smooth Matte |
| Weight | 0.1 lb |
| BULLETIN NUMBER | MCLA |
