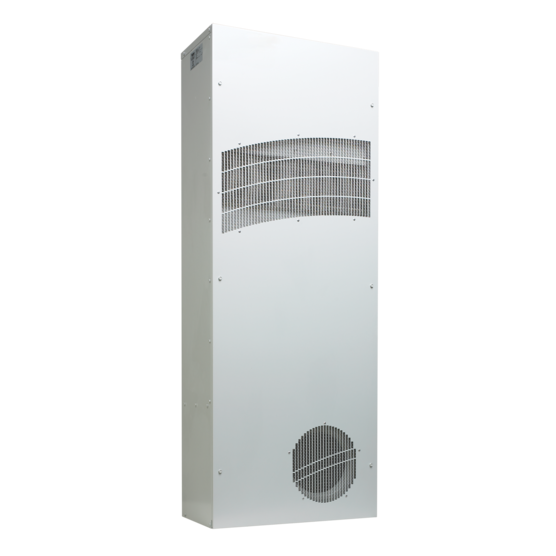

Hoffman TX528348100 | ClimaGuard Air-to-Air Heat Exchanger Outdoor, X52 83w/F 48v
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman TX528348100 | ClimaGuard Air-to-Air Heat Exchanger Outdoor,...
Description
Description
nVent Hoffman’s ClimaGuard Outdoor Heat Exchangers offer reliable closed-loop cooling while sealing out harsh environments including temperature extremes, dirt, dust, corrosive elements and wind-driven rain. This robust heat exchanger features a double-crimped and dip-sealed core, allowing efficient thermal transfer while ensuring maximum protection against leaks. With ClimaGuard Outdoor Heat Exchangers providing a tight seal against air and water infiltration, units can be simply surface- or recess-mounted to an enclosure with no loss of enclosure integrity.
Main Features
- Unique counterflow aluminum core for high efficiency and high performance heat transfer
- Engineered for temperature extremes, corrosive environments and wind driven rain
- Operating temperature range from -40 F/-40 C to 149 F/65 C
- Models for 24 VDC, 48 VDC, 115 VAC and 230 VAC power supplies
- Variable speed blowers standard on DC powered units for quiet running
- Filterless design for low maintenance and easy cleaning
- Low-carbon mild-steel sheet-metal cover for rugged factory environments
- Easy-mount flanges for simple installation
- Surface or recessed mount capable
- Every unit functionally tested before shipping
- Mounting hardware, gaskets and user manual furnished with the unit
Specifications
Specifications
Industry Standards
- UL/cUL Listed; Type 12, 4; 4X optional; File No. SA7402
- UR/cUR Recognized
- UR/cUR Recognized on select models, reference performance data tables.
- CE
- EAC
- Telcordia GR-487 capable
Specifications
| Height | 52 in / 1320.8 mm |
|---|---|
| Width | 19.7 in / 500.38 mm |
| Depth | 10.1 in / 256.54 mm |
| Capacity Watts Per °C | 150 W |
| Capacity Watts Per °F | 83 W |
| Nominal Voltage | 48 V |
| Voltage DC | 48 V |
| Max Current | 7.8 A |
| Operating Temperature | -40 to 149 °F / -40 to 65 °C |
| Max Watts Per °F | 83 W |
| Max Watts Per °C | 150 W |
| Protection Rating | NEMA Type 4 |
| BULLETIN NUMBER | MCLHE |
