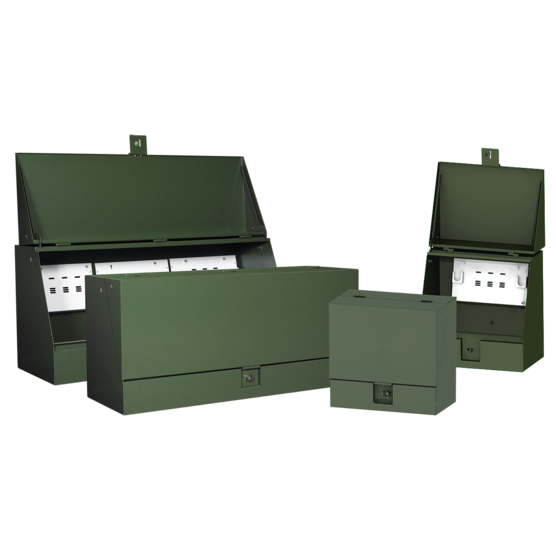

Hoffman UJP2SSOFF | Utility Junction (UJ) Panel, 11.66x21.50, Style D, 2 Parking Stands, 304 SS
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman UJP2SSOFF | Utility Junction (UJ) Panel, 11.66x21.50, Style...
Description
Description
Utility Junction (UJ) Cabinet provides sectionalizing and tap-point functionality for underground distribution systems. Available in a wide variety of single- and three-phase models, these enclosures are rated 15 and 25 KV at 200 or 600 amperes and will accept two-, three- and four-way junctions from all manufacturers.
UJ303018A, UJ306018A and UJ306723A aluminum models are .125-inch (3.3mm) thick.
Catalog weights and dimensions are careful estimates but not guaranteed.
Main Features
- Recessed stainless steel penta-head bolt with padlock security system standard on all models
- 5/8-11 threaded lifting provisions
- Wind stop standard on all models (two stops provided if B dimension is greater than or equal to 42-inch (1067mm))
- Ground nut for each phase
- Full range of modifications available on request
- When ordering UJ cabinets, customer may specify multiple mounting panel options, including mild steel, galvanized and stainless steel (panels must be purchased separately)
- ANSI C57.12.28 Pad-Mounted Equipment Enclosure Integrity RUS Approved
Specifications
Specifications
Specifications
| Height | 11.66 in / 296.164 mm |
|---|---|
| Width | 21.5 in / 546.1 mm |
| Material | Stainless Steel 304 |
| Finish | Powder Coated |
| Color | White |
| Thickness | 12 ga / 2.78 mm |
| Style | D |
| Parking Stand Quantity | 2 |
| Weight | 11 lb |
| BULLETIN NUMBER | UJ |
