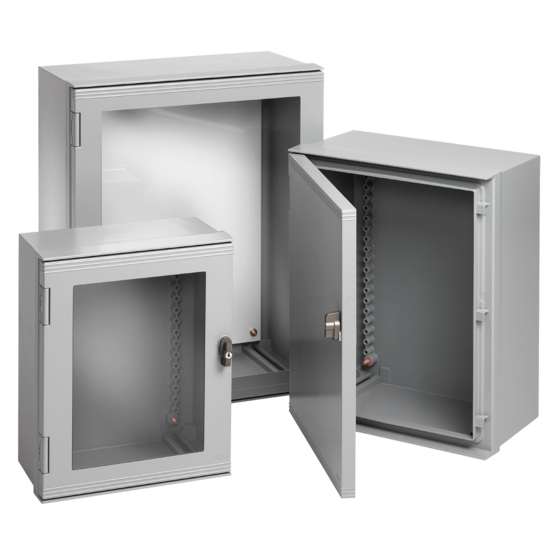

Hoffman UU606040 | Ultrx, Type 4X, 600x600x400mm, Fiberglass
Description
Description
Providing outstanding protection against corrosion and the elements, the clean lines and molded, embossed design of Ultrx fiberglass enclosures make them the most stylish and aesthetically pleasing of their class.
Purchase panels separately
When installing enclosures in a right-hand hinge application that involves vibration, HOFFMAN recommends the use of pad-locking or key-locking quarter-turn latch accessories for door securement (UUHPL, UUHKL).
For CALIFORNIA residents only - WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Please note that by posting this Proposition 65 warning, we are notifying you that one or more of the Proposition 65 listed chemicals may be present in this product. With HOFFMAN's products, the exposure to these chemicals may be of no significant risk to you, but out of caution and to ensure your well-being, we have elected to place this warning on our site to make sure our customers are informed. You can find more information at http://www.oehha.ca.gov/proposition-65/about-proposition-65.
Features and Benefits
- Compression-molded fiberglass material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties, including high-impact resistance
- Fiberglass is easily punched, drilled, filed or sawed
- Seamless foam-in-place gasket assures water-tight and dust-tight seal
- Enclosure may be rotated 180 degrees for left and right hinging
- Molded-in drip shields are standard with each enclosure
- Impact-resistant polycarbonate window is permanently bonded in place
- Fiberglass mounting brackets and stainless steel attachment screws are provided with each enclosure
- Unique hinge design allows for standard 180 degree door opening with a maximum opening of 270 degrees
- Door hinges are replaceable
- Type 316 stainless steel quarter-turn latch
- Optional keylocking or padlocking handle available
- Molded-in DIN bosses
- Molded bosses on door provide additional mounting provisions
- Integral mounting rails provide infinite panel adjustment front to back
- Optional data pocket is high-impact thermoplastic
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E61997
- cUL Listed per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12, 13; File No. E619977
- Enclosure flammability evaluated per UL 508A
- Window flammability evaluated per UL 508A
- Mounting brackets required to meet UL/CSA external mounting requirements.
- NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13
- CSA File No. 42186: Type 3, 3R, 4, 4X, 12, 13
- IEC 60529, IP66
- Meets NEMA Type 3RX requirements
Related Accessories
- Catalog #: TE121024011
- Catalog #: A24P24
- Catalog #: A24P24G
- Catalog #: A24P24AL
- Catalog #: A24P24SS6
- Catalog #: UU6060SP
- Catalog #: UU6060SF
- Catalog #: UUGK
Specifications
| Height | 24.61 in / 625 mm |
|---|---|
| Width | 24.09 in / 612 mm |
| Depth | 16.89 in / 429 mm |
| Protection Rating | NEMA Type 12; NEMA Type 13; NEMA Type 4; NEMA Type 4X; NEMA Type 3; IP66 |
| Material | Fiberglass |
| External Dimensions | 625 x 612 mm / 24.61 x 24.09 in |
| Internal Dimensions | 608 x 595 x 421 mm / 23.94 x 23.43 x 16.57 in |
| Door Style | Solid |
| Panel | A24P24 |
| Conductive Panel | A24P24G |
| Panel Size | 20.98 x 20.98 in / 533 x 533 mm |
| Mounting | 21.85 x 22.36 in / 555 x 568 mm |
| BULLETIN NUMBER | UX1 |
