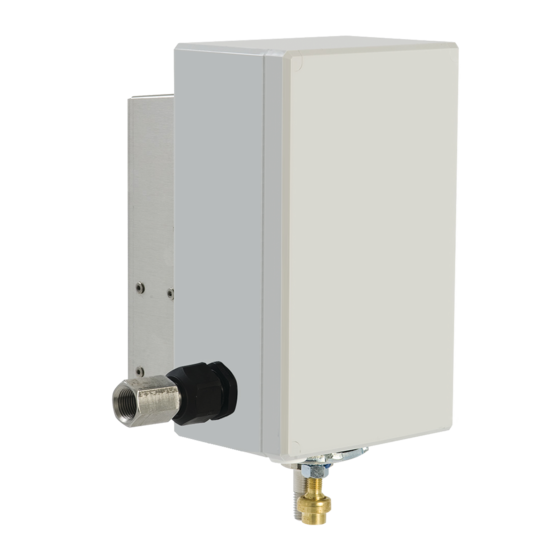

Hoffman VA151604X | Quiet Vortex Cooler, Type 4X 1500 BTU
Regular price
$2,839.80
Unit price
Brand: Hoffman
|
SKU:
646970
Regular price
$2,839.80
Unit price
Description
Description
Vortex A/C Enclosure Coolers keep enclosures cool, clean and protected even in the harshest environments. Offering flexible installation, these enclosure coolers are ideal in space-restrictive areas where compressed air is readily available. With almost no moving parts, these enclosure coolers are highly reliable and virtually maintenance free.
Main Features
- Quieter operation with noise level of 60-75 dB
- Top, side, and front mount allows for versatile installation in confined areas
- Operates in environments up to 175 F (80 C)
- Cooling capacities up to 5000 BTU/Hr. (1465 W)
- Mechanical thermostat reduces energy consumption
- NEMA Type 4,4X models are polycarbonate and stainless steel exterior; aluminum and brass internal components
- NEMA Type 12 models are polycarbonate and aluminum exterior; aluminum and brass internal components
- Supplied with five-micron, automatic drain compressed air filter, cold ducting kit, and cold air muffler
Specifications
Specifications
Industry Standards
- Maintains UL/cUL Type 4, 4X when properly installed on a UL/cUL Type 4, 4X enclosure. (Type 4, 4X Models)
- UL508 Listed; Type 4, 4X; File No. E249700 (Type 4, 4X Models)
- Maintains UL/cUL Type 12 when properly installed on a UL/cUL Type 12 enclosure. (Type 12 Models)
- UL508 Listed; Type 12; File No. E249700 (Type 12 Models)
- NEMA Type 4,4X Models:
- IP66
- NEMA Type 12 Models:
- IP54
Related Accessories
- Catalog #: VAAF15
- Catalog #: VCOF17
- Catalog #: VAGK15
- Catalog #: VADK124X
Specifications
| Height | 8 in / 203.2 mm |
|---|---|
| Width | 4.75 in / 120.65 mm |
| Depth | 5.38 in / 136.652 mm |
| Nominal Capacity Btu/h | 1500 Btu/h |
| Nominal Capacity Watts | 440 W |
| Protection Rating | NEMA Type 12; NEMA Type 4; NEMA Type 4X |
| Material | Polycarbonate |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Finish | Smooth Matte |
| Weight | 7.1 lb |
| BULLETIN NUMBER | MCLV |
