Brand: Hoffman
|
SKU:
654898

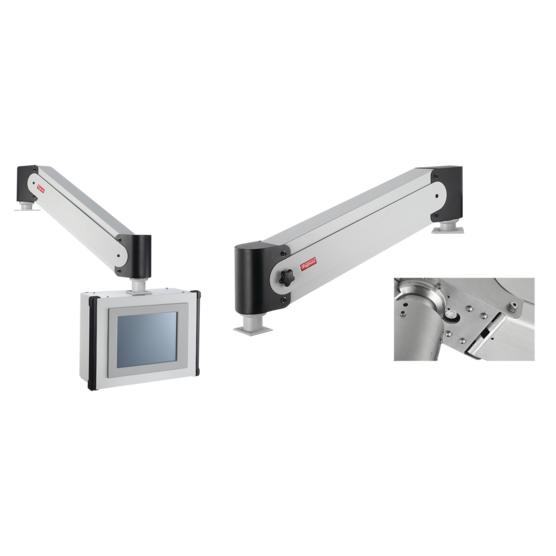

Hoffman VHD36 | Syspend VHD-Motion Arm Type 4, 10.18x40.65x4.86, Lt. Gray, Steel
Regular price
$5,658.61
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman VHD36 | Syspend VHD-Motion Arm Type 4, 10.18x40.65x4.86, Lt...
Regular price
$5,658.61
Unit price
Description
Description
Syspend VHD-Motion Arm is a heavy-duty vertical motion pendant arm to effortlessly lift, lower and reposition HMI enclosure. It lets you easily field-adjust the lifting force as needed to accommodate user configurations and equipment changes up to 125-lb. load. No release handle is required to operate the arm; enclosure stays in place after repositioning.
Main Features
- 26-in. arm supports loads of 45-125 lb. with 13-in. of vertical height adjustment
- 36-in. arm supports loads of 25-75 lb. with 20-in. of vertical height adjustment
- Field-adjustable gas spring counterbalance allows the user to adjust lifting force by turning an adjustment mechanism under the arm
- Angle of gas springs is adjustable (not the pressure); allows lifting force to be increased or decreased at any time for changes in load
- Tension adjustment at front of the arm provides additional fine-tuning of lifting force
- Easily attach to an HMI enclosure using a 60-x-60-mm enclosure mounting pattern (enclosure must be ordered separately)
- 1.3-in. internal cable pathway maintains NEMA Type 4 and 12 enclosure rating and protects wires and cables
- Gasketed mounting surfaces at both ends of arm maintain seal integrity
- Enclosure and arm can be swiveled 330 degrees with swivel stops available in 30-degree increments
- Standard models are available with machine-top mounting (wall-mount and post-mount adapters sold separately)
- Optional floorpost available
Specifications
Specifications
Specifications
| Height | 10.18 in / 258.572 mm |
|---|---|
| Width | 40.65 in / 1032.51 mm |
| Depth | 4.86 in / 123.444 mm |
| Protection Rating | NEMA Type 12; NEMA Type 4 |
| Material | Mild Steel |
| Wall-Mount Adapter | VHDWALL |
| Post-Mount Adapter | VHDPOST |
| Load Capacity | 25-75 lb / 11-37 kg |
| Arm Length | 27 mm |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Finish | Powder Coated |
| BULLETIN NUMBER | VM2 |
