Brand: Hoffman
|
SKU:
10263345

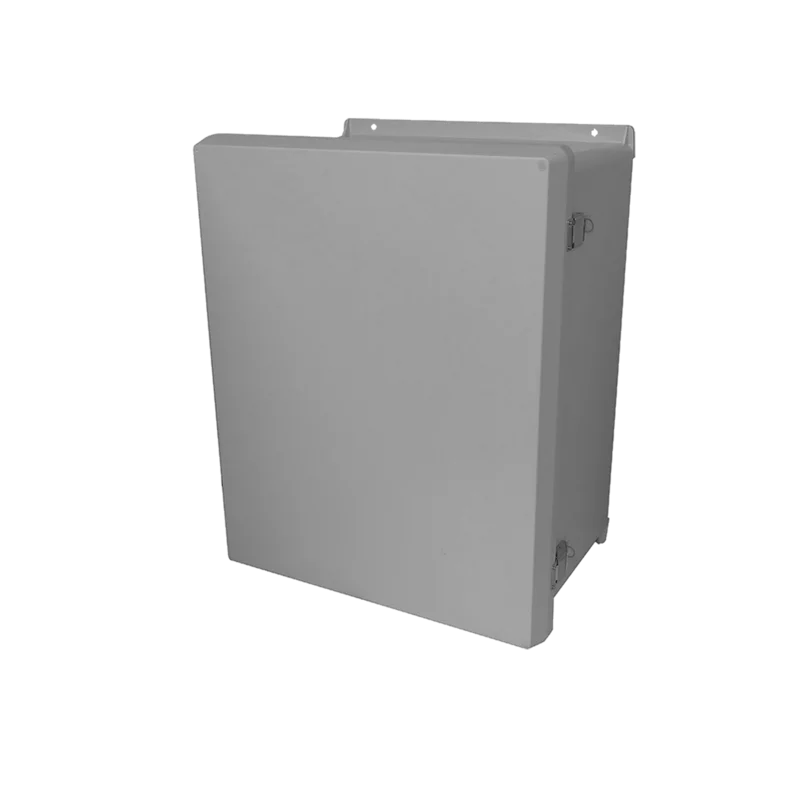

Hoffman VJ1412HWPL2 | VJ Flat Opaque Cover Type 4X, 15.32x13.32x6.6, Lt Gray, FRP, HWPL
Regular price
$274.33
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman VJ1412HWPL2 | VJ Flat Opaque Cover Type 4X, 15.32x13.32x6.6...
Regular price
$274.33
Unit price
Description
Description
Hoffman VJ1412HWPL2 | VJ Flat Opaque Cover Type 4X, 15.32x13.32x6.6, Lt Gray, FRP, HWPL
VJ enclosures are designed for use as electrical junction boxes in highly corrosive environments and provide protection for equipment and operators from indirect electrical contact.
Hoffman - VJ1412HWPL2 - Features
- Available sized from 6x6 (152x152mm) to 30x24 (762x610mm)
- All VJ enclosures were designed to meet the Joint Industrial Council (JIC) standards in the United States
- Enclosures are maintenance free and corrosion resistant
- Made from hot compression molded halogen free, self extinguishing fiberglass reinforced polyester (FRP)
- Withstand continuous temperatures from 58°F to 302°F (-50°C to 150°C) and momentary exposure to temperatures up to 392°F (200°C)
- Polyurethane foam-in-place gasket
- Molded mounting flanges and cover corner ribs increase enclosure strength
- Enclosures can be modified to customer specifications
- BULLETIN NUMBER: VJ
- Industry Standards:
- UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E192121
- cUL Listed per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12, 13; File No. E192121
- Enclosure flammability per UL 508A
- NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13
- IEC 60529, IP66
- Meets NEMA Type 3RX requirements
Specifications
Specifications
Hoffman - VJ1412HWPL2 - Product Categories
- Industrial
- Wall Mounted Industrial Enclosures
- Fiberglass and Thermoplastic Wall Mounted Industrial Enclosures
Hoffman - VJ1412HWPL2 - Specifications
| Brand Name | Hoffman |
|---|---|
| Manufacturer Part Number | VJ1412HWPL2 |
| Item Description | VJ Flat Opaque Cover Type 4X, 15.32x13.32x6.6, Lt Gray, FRP, HWPL |
| Style | Stainless steel continuous hinge with padlock latches |
| Height | 15.32 in / 389 mm |
| Width | 13.32 in / 338 mm |
| Depth | 6.6 in / 168 mm |
| Protection Rating | NEMA Type 3; NEMA Type 3R; NEMA Type 4; NEMA Type 4X; NEMA Type 12; NEMA Type 13; IP66 |
| Material | Fiberglass |
| Finish | Smooth Matte |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Weight | 8.6 lb |
