Brand: Hoffman
|
SKU:
9890211

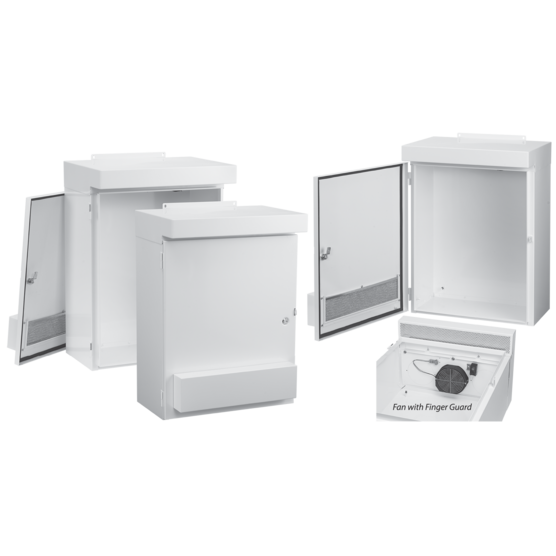

Hoffman WF100LP | WeatherFlo with Fan Type 3R, 67.00x36.00x16.00, White, Aluminum
Regular price
$5,384.50
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman WF100LP | WeatherFlo with Fan Type 3R, 67.00x36.00x16.00, W...
Regular price
$5,384.50
Unit price
Description
Description
WeatherFlo Enclosures feature a forced-air ventilation system for cooling drives or other high-heat producing equipment in outdoor applications.
Purchase panels separately.
WF75LP and WF100LP are constructed of aluminum .100 inch (2.5mm) thick.
Main Features
- White polyester powder finish with low solar absorption
- Integrated solar shield top and intake cover
- Gasket and filter
- Adjustable thermostat; 70-140 F (21-60 C)
- Active cooling ventilation system with factory-installed fan and filter (115 VAC)
- Terminal power connection for fan
- Easily accessible and washable metal filter
- Top front hood exhaust and door
- Lift-off hinged door
- Quarter-turn latch
- External mounting brackets
- Collar studs provided to mount the optional panel
- Grounding provision on door and body
- Gasketed door
- Enclosures are finished with paint over plated surfaces
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 3R; File Number E61997
- cUL Listed per CSA C22.2 No 94; Type 3R; File Number E61997
- NEMA/EEMAC Type 3R
- IEC 60529, IP32
Related Accessories
- Catalog #: APWK53NFSS
- Catalog #: AS050
Specifications
| Height | 67 in / 1702 mm |
|---|---|
| Width | 36 in / 914 mm |
| Depth | 16 in / 406 mm |
| Protection Rating | NEMA Type 3R; IP32 |
| Material | Aluminum |
| Finish | Galvanized; Powder Coated / Galvanized; Powder Coated |
| Color | Signal White |
| Color Code | RAL 9003 |
| Thickness | 11 ga / 2.3 mm |
| Panel Size | 57.00 x 33.00 in / 1448 x 838 mm |
| Panel | A60P36 |
| Mounting Holes | 67.94 x 27.00 in / 1726 x 686 mm |
| BULLETIN NUMBER | A3RD |
Documents and Downloads
Documents and Downloads
- Hoffman WF100LP Declaration of Compliance
- Hoffman WF100LP CE-00010
- Hoffman WF100LP CERT-00068
- Hoffman WF100LP WeatherFlo Fan Wiring Schematic Instruction Manual
- Hoffman WF100LP Current Transformer Cabinets, 400-800 Amp, Type 3R Instruction Manual
- Hoffman WF100LP WeatherFlo Mounting Feet Instruction Manual
- Hoffman WF100LP WeatherFlo Replacement Gasket Instruction Manual
