Brand: Hoffman
|
SKU:
9890212

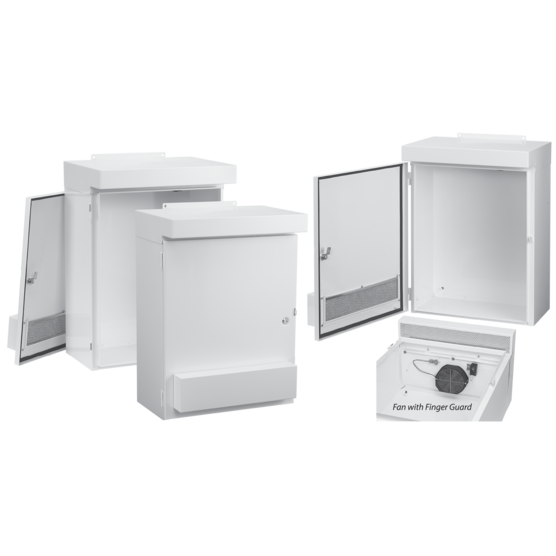

Hoffman WF10LP | WeatherFlo with Fan Type 3R, 35.00x24.00x12.00, White, Steel
Regular price
$2,175.54
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman WF10LP | WeatherFlo with Fan Type 3R, 35.00x24.00x12.00, Wh...
Regular price
$2,175.54
Unit price
Description
Description
WeatherFlo Enclosures feature a forced-air ventilation system for cooling drives or other high-heat producing equipment in outdoor applications.
Purchase panels separately.
WF75LP and WF100LP are constructed of aluminum .100 inch (2.5mm) thick.
Main Features
- White polyester powder finish with low solar absorption
- Integrated solar shield top and intake cover
- Gasket and filter
- Adjustable thermostat; 70-140 F (21-60 C)
- Active cooling ventilation system with factory-installed fan and filter (115 VAC)
- Terminal power connection for fan
- Easily accessible and washable metal filter
- Top front hood exhaust and door
- Lift-off hinged door
- Quarter-turn latch
- External mounting brackets
- Collar studs provided to mount the optional panel
- Grounding provision on door and body
- Gasketed door
- Enclosures are finished with paint over plated surfaces
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 3R; File Number E61997
- cUL Listed per CSA C22.2 No 94; Type 3R; File Number E61997
- NEMA/EEMAC Type 3R
- IEC 60529, IP32
Related Accessories
- Catalog #: APWK53NF
- Catalog #: AS050
Specifications
| Height | 35 in / 889 mm |
|---|---|
| Width | 24 in / 610 mm |
| Depth | 12 in / 305 mm |
| Protection Rating | NEMA Type 3R; IP32 |
| Material | Mild Steel |
| Finish | Galvanized; Powder Coated / Galvanized; Powder Coated |
| Color | Signal White |
| Color Code | RAL 9003 |
| Thickness | 14 ga / 1.9 mm |
| Panel Size | 27.00 x 21.00 in / 686 x 533 mm |
| Panel | A30P24 |
| Mounting Holes | 35.94 x 13.00 in / 913 x 330 mm |
| BULLETIN NUMBER | A3RD |
