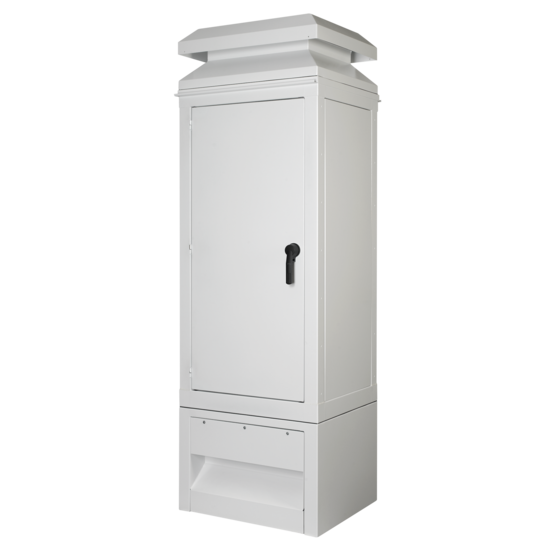

Hoffman WFHD3E726830 | WeatherFlo HD Enclosures, 74.14x68.56x30.00, White, Aluminum
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman WFHD3E726830 | WeatherFlo HD Enclosures, 74.14x68.56x30.00,...
Description
Description
nVent HOFFMAN excels at modifying and customizing products to your specifications. Modification options for WeatherFlo HD include: size changes, custom paint, and holes and cut-outs. Contact your local HOFFMAN sales office or distributor for complete information.
WeatherFlo HD Enclosures are designed to protect and cool 100-500 HP variable frequency drives. These enclosures provide an integrated cooling solution for your VFD application needs.
Catalog weights and dimensions are careful estimates but not guaranteed.
Main Features
- Optional impeller packages provide 840 actual CFM per impeller
- Easy-to-install back panel with flexible installation methods
- Painted white polyester powder finish with low solar absorption
- Selectable bases and tops, designed to meet your specific needs
- Gangable enclosures can be joined to one another
- Easy-to-change filter (not included)
- Frames, bases and gland plates constructed of .125-in. aluminum
- Tops and fan housing constructed of .080-in. aluminum
- Sides and standard rear cover constructed of .100-in. aluminum
- Gasketed door, top and base
- Panels and heavy-duty rear cover constructed of 12 gauge mild steel
- Three-point latches operated by patented padlocking handle
- Grounding provisions on door and body
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 3R; File Number E61997
- cUL Listed per CSA C22.2 No 94; Type 3R; File Number E61997
- NEMA/EEMAC Type 3R
- IEC 60529, IP22
Related Accessories
- Catalog #: APWK53NFSS
- Catalog #: AS050
Specifications
| Height | 74.14 in / 1883 mm |
|---|---|
| Width | 68.56 in / 1741 mm |
| Depth | 30 in / 762 mm |
| Protection Rating | NEMA Type 3R; IP32 |
| Material | Aluminum |
| Color | Signal White |
| Color Code | RAL 9003 |
| Finish | Powder Coated |
| Thickness | 0.125 in / 3.2 mm |
| Weight | 249 lb |
| BULLETIN NUMBER | A3RHD |
