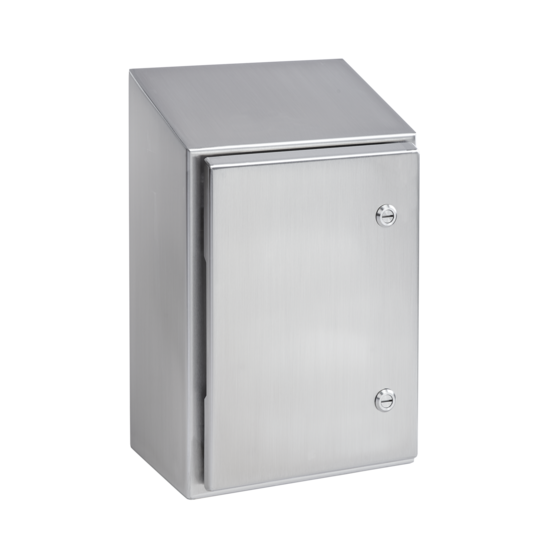

Hoffman WS363016SS | WaterShed, 304 SS, Wallmount Sloped Top, 1/4 Turn Latch, Type 4X, 36x30x16
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman WS363016SS | WaterShed, 304 SS, Wallmount Sloped Top, 1/4 T...
Description
Description
Specifically designed for use in sanitary washdown production environments, particularly food and beverage manufacturing. HOFFMAN WaterShed Enclosures feature a sloped top, sloped door edges, bullet-style hinges and additional unique features that facilitate washdown runoff.
WS080604SS, WS100804SS, WS121006SS and WS141208SS do not accept print pockets.
Purchase panels separately. Optional stainless steel, conductive or aluminum panels are available.
WS603616SS back is 10 gauge stainless steel.
Main Features
- Seams continuously welded and ground smooth
- Smooth Type 304 stainless steel lift-off bullet-style hinges
- Hinges are shielded by door
- Hinged side of door has provisions to allow direct flushing of hinge area
- 20-degree sloped top facilitates runoff of water and cleaning solutions and prohibits the placement of objects on the top of the enclosure
- 170-degree door opening
- Door edges are sloped 20-degrees at top and bottom edges to facilitate runoff
- Slanted flange trough collar prohibits pooling of fluids along the top edge of the enclosure opening
- Stainless steel quarter-turn latches furnished with flush slotted insert
- Seamless foam-in-place gasket
- Self-grounding latch system with double seal
- Bonding provision on door; grounding stud on body
- Enclosures with 'A' dimension of 16.00 in. (406mm) or greater utilize NEMA style panels; models with 'A' dimension less than 16.00 in. (406mm) utilize Junction Box style panels
- Mounting holes in back of body for direct mounting optional stand-off kit or mounting bracket kit
- Furnished hardware kit consists of panel mounting fasteners grounding hardware and sealing washers for wall-mounting hole
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 4, 4X, 12; File Number E61997
- cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12; File Number E61997
- Mounting brackets required to meet UL/cUL external mounting requirement.
- NSF 169
- NEMA/EEMAC Type 4, 4X, 12
- IEC 60529, IP66
Related Accessories
- Catalog #: AS050SS
- Catalog #: N280416G051
- Catalog #: A36P30
- Catalog #: A36P30G
- Catalog #: A36P30SS6
- Catalog #: CMFKSS
- Catalog #: WSSOK1SS
- Catalog #: WSSOK2SS
Hoffman On Demand Alternatives
- Catalog #: WS603616SS
- Catalog #: WS483616SS
- Catalog #: WS363612SS
- Catalog #: WS363012SS
- Catalog #: WS303008SS
- Catalog #: WS302412SS
- Catalog #: WS242412SS
- Catalog #: WS242408SS
Specifications
| Height | 36 in / 914 mm |
|---|---|
| Width | 30 in / 762 mm |
| Depth | 16 in / 406 mm |
| Protection Rating | NEMA Type 12; NEMA Type 4; NEMA Type 4X; IP66 |
| Material | Stainless Steel 304 |
| Panel | A36P30 |
| Conductive Panel | A36P30 |
| Stainless Steel Panel | A36P30SS6 |
| Latch Quantity | 5 |
| Color | Unpainted |
| Finish | Brushed #4 |
| Thickness | 14 ga / 2 mm |
| BULLETIN NUMBER | WS1 |
