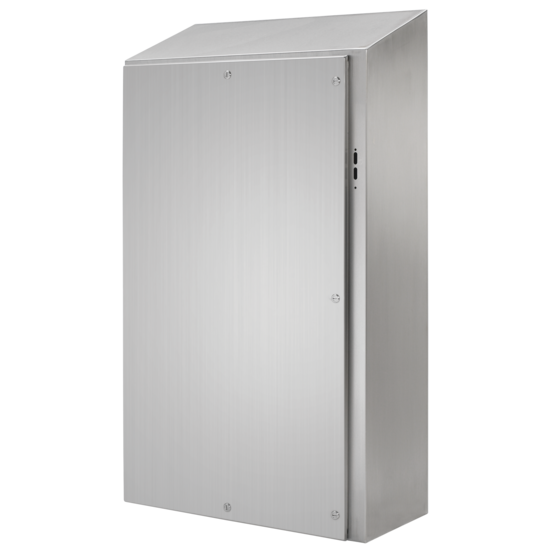

Hoffman WS36HS3108SS | WaterShed Wallmount Disconnect Enclosure Type 4X, 36x31x8, SS Type 304
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman WS36HS3108SS | WaterShed Wallmount Disconnect Enclosure Typ...
Description
Description
Specifically designed for disconnect applications in sanitary washdown production environments, such as food and beverage manufacturing. nVent HOFFMAN WaterShed Disconnect Enclosures feature a sloped top, sloped door edges, bullet-style hinges and additional unique features that facilitate washdown runoff.
Purchase panels separately.
Optional Stainless steel, composite and aluminum panels available for most sizes.
NOTE: nVent HOFFMAN cannot guarantee compatibility of disconnect configurations with third-party latching.
Main Features
- Specifically designed for type 4x food & beverage industry, indirect contact zone applications.
- Seams continuously welded and ground smooth
- Smooth Type 304 stainless steel lift-off bullet-style hinges
- Hinges are shielded by door edges
- Hinged side of door has provisions to allow direct flushing of hinge area
- 20-degree sloped top
- 170-degree door opening
- Door edges are sloped 20 degrees at top and bottom
- Slanted flange trough collar along the top edge of the enclosure opening
- Stainless steel quarter-turn latches with flush slotted insert
- Seamless foam-in-place gasket
- Self-grounding latch system
- Bonding provision on door; grounding stud on body
- Panel studs fit optional NEMA size panels
- Adjustable door interlock bracket fastened to door
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 4, 4X, 12; File Number E61997
- cUL Listed per CSA C22.2 No. 94; Type 4, 4X, 12; File No. E61997
- Mounting brackets required to meet UL/cUL external mounting requirement.
- NSF 169
- NEMA/EEMAC Type 4, 4X, 12
- IEC 60529, IP66
Related Accessories
- Catalog #: T150116G152
Specifications
| Height | 36 in / 914 mm |
|---|---|
| Width | 31 in / 787 mm |
| Depth | 8 in / 203 mm |
| Protection Rating | NEMA Type 4X; IP66 |
| Material | Stainless Steel 304 |
| Conductive Panel | A36P30G |
| Panel | A36P30 |
| Latch Quantity | 5 |
| Color | Unpainted |
| Finish | Brushed #4 |
| Thickness | 14 ga / 1.98 mm |
| Weight | 85.5 lb |
| BULLETIN NUMBER | WS1D |
