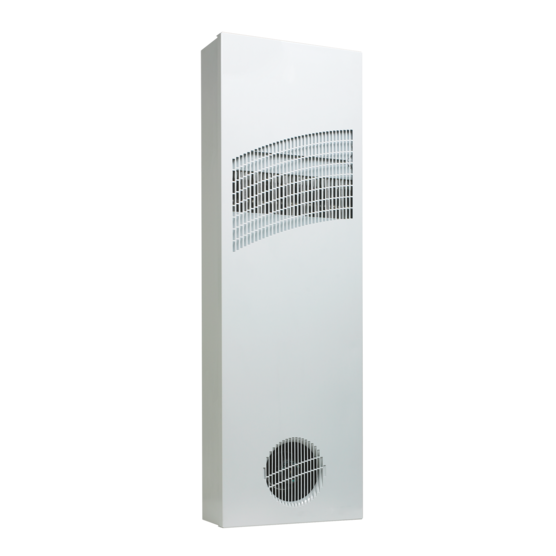

Hoffman XR473526012 | ClimaGuard Air-to-Air Heat Exchanger Indoor, XR47 35w/F 230v
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman XR473526012 | ClimaGuard Air-to-Air Heat Exchanger Indoor, ...
Description
Description
nVent Hoffman’s ClimaGuard Indoor Heat Exchangers offer reliable closed-loop cooling while sealing out temperature extremes, dirt, dust, corrosive elements and washdown water. This robust heat exchanger allows efficient thermal transfer while ensuring maximum protection against leaks. With ClimaGuard Indoor Heat Exchangers providing a tight seal against air and water infiltration, units can be simply surface-mounted to an enclosure with no loss of enclosure integrity.
Main Features
- Unique counterflow aluminum core for high-efficiency and high-performance heat transfer, except for the XR20 and XR29-08 which use a modified heat pipe core
- Streamlined aesthetics with no visible mounting rails; slim design allows for mounting to narrow or shallow enclosures
- Models for 115 and 230 VAC power input
- Operating temperature range from -20 F/-29 C to 140 F/60 C
- Low-carbon mild-steel sheet-metal cover for rugged factory environments
- Filterless design for low maintenance and easy cleaning
- Reliable top-quality bearing fans and impellers make these units run quietly and with increased reliability
- Easy-mount flanges for simple installation
- Every unit functionally tested before shipping
- Mounting hardware, gaskets and user manual furnished with the unit
- Four fasteners allow simple removal of front cover for easy access
Specifications
Specifications
Industry Standards
- UL/cUL Listed; Type 12; File No. SA7402
- UR/cUR Recognized
- Type 12 on XR20 and XR29-08 models
- Type 3R on XR29-18 and larger models when surface mounted vertically on an enclosure
- CE
- EAC
Specifications
| Height | 47.16 in / 1197.864 mm |
|---|---|
| Width | 15.24 in / 387.096 mm |
| Depth | 5.92 in / 150.368 mm |
| Capacity Watts Per °C | 63 W |
| Capacity Watts Per °F | 35 W |
| Nominal Voltage | 24 V |
| Voltage DC | 24 V |
| Max Current | 0.9 A |
| Operating Temperature | -20 to 140 °F / -29 to 60 °C |
| Max Watts Per °F | 35 W |
| Max Watts Per °C | 63 W |
| Protection Rating | NEMA Type 12; NEMA Type 3R |
| BULLETIN NUMBER | MCLHE |
