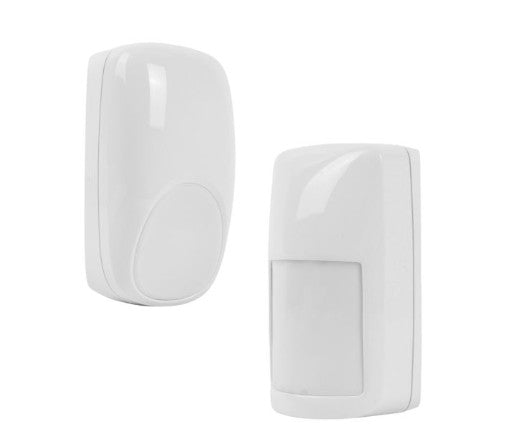

Honeywell Building Products DT8050AF24-SN | Dual Tec 24G Motion Sensor
Description
Description
Designed for mid to high-end commercial environments where a PIR andmicrowave radar sensor may be required, the new Honeywell DT8050AF24 orDT8050AF24-SN anti-mask motion sensor, or the DT8050F24 Dual Tec motionsensor without anti-mask, deliver reliable protection with improved false alarmimmunity through patented solutions. It includes DualCore™ signal processingwhich is ideal for areas that are difficult to protect with standard products andintegrates a total of five patented solutions to improve reliability and installation.
Engineered for effortless installation, installers will appreciate the sensor’sdesign which allows easy access to the connectors with its quick plug-in featureand mounting screws conveniently secured inside the detector rear housing.These motion sensors also offer integrated EOL resistors and an enhanced walktest feature further saving time on installation. With the DT8050AF24/DT8050AF24-SN/DT8050F24, optimum performance isachieved using K-Band microwave technology and Uniform Sensitivity Optics.
Honeywell Building Products - DT8050AF24-SN - Features
- Grade 2 and 3 intrusion motion detection sensors (DT8012 and DT8016 serues) have both Passive Infrared (PIR) and 24Ghz Radar/Microwave technology to precisely detect motion and reduce false alarms – required to comply with EU insurance regulations
- The new 24Ghz K-band radar allows the DT24G family to detect even slight movements with more precision than other motion detectors utilizing 10Ghz X-Band radar, while reducing unwanted overpenetration of the radar signal
- 24Ghz radar has worldwide frequency approval, making the Dual Tec 24G series of motion sensors suitable for installation in just about any project, in any jurisdiction
- Sleek and modern design in Pantone white blends in with any decor
- Target applications: banking, high end retail/big box stores, high end commercial or industrial locations, data centers
Specifications
Specifications
Honeywell Building Products - DT8050AF24-SN - Specifications
| Manufacturer Part Number | DT8050AF24-SN |
|---|---|
| Brand | Honeywell Building Products |
| Item Description | Dual Tec 24G Motion Sensor |
| Detection type | PIR (mirror) + Microwave |
| Range | 53 ft (16.15m) × 72 ft (21,94m) |
| Detection zones | 36 long range, 10 intermediate, 12 lower, 2 look down |
| Mounting height | 7 ft 6 in optimal |
| Power Requirements | 9.5 to 15 Vdc; max. 25 mA at 9.5 Vdc; max. 16 mA at 15 Vdc |
| Relative humidity | 5 % to 95 %, non-condensing |
| Dimensions | 11.86 cm (4.67 in.) H × 6.73 cm (2.65 in.) W × 4.64 cm (1.83 in.) |
| Weight | 93.7 g / 3.3 oz (net weight) |
