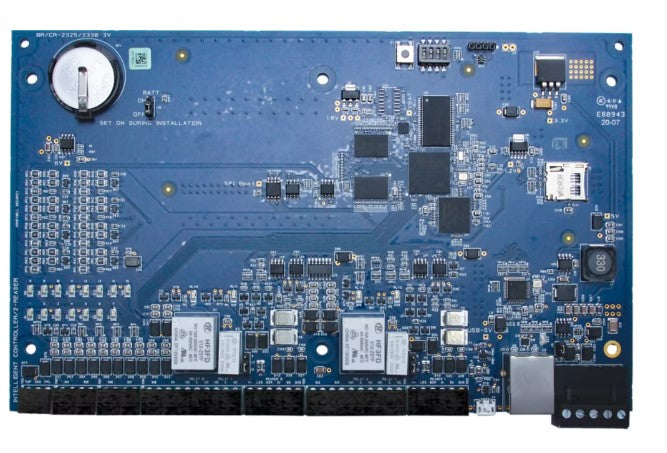

Honeywell Building Products PRO42IC | Pro4200 Intelligent Controller

[{"title":"Features","items":["Modular design fits a wide variety of applications","Up to 9 modules, power supply and battery can be accommodated by the PRO22ENC1, PRO22ENC2 and PRO22ENC5 (no battery) enclosures","User programmable relay outputs allow for specific control needs","User programmable alarm inputs offer flexible system configuration and control","RS485 communication to all modules","Analog to digital converter technology provides digital filtering and input conditioning","Dedicated cabinet tamper and power monitor inputs","Supports the choice of normally open, normally closed, supervised, and non-supervised circuits","Supports a wide range of reader technologies including OSDP and Wiegand","System off-line modes customizable per reader include secured access, locked (no access), and unlocked (full access)","Supports multiple reader and card formats for maximum flexibility and security options","Operating modes includes locked, unlocked, secure access, card only, card and PIN, card or PIN and PIN only","Any combination of 16 downstream I/0 or readers modules may be connected to the PRO42IC RS485 ports. 4,000 ft (1,250 m) total bus length per port","Supports over 50,000 transaction buffer"]}]
