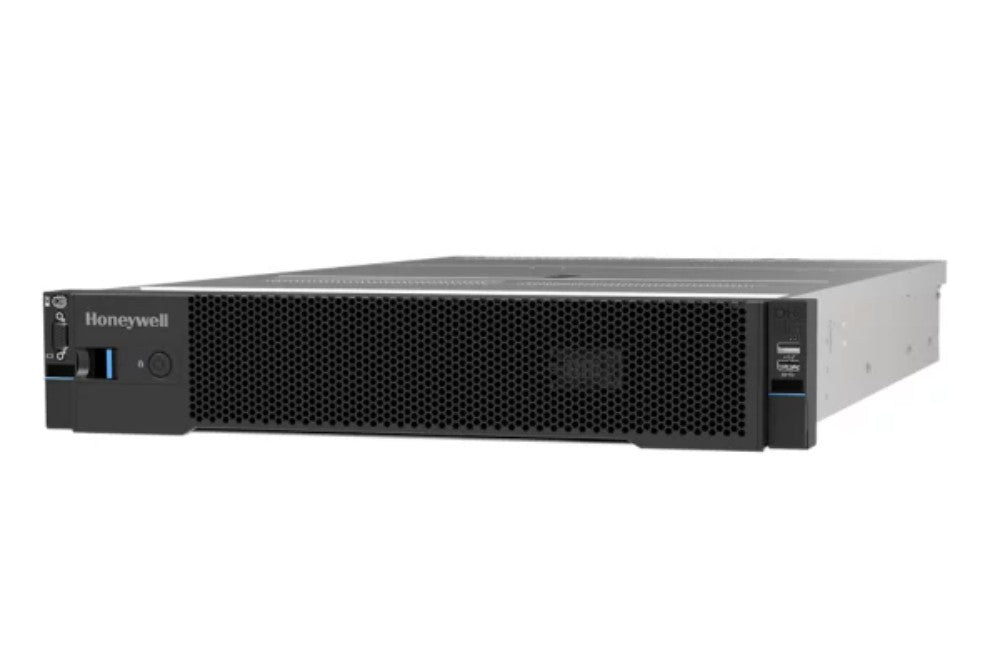

Honeywell HNMHE192E360T18 | MAXPRO NVR HE, 192 Channels, 20x18TB HDD, RAID 6
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Honeywell HNMHE192E360T18 | MAXPRO NVR HE, 192 Channels, 20x18TB HD...
Description
Description
MAXPRO® NVR HE (High Efficiency) is a flexible and scalable, open platform video surveillance system that supports device integrations with support for PSIA and ONVIF, real-time streaming protocol standard, and native device integrations. As an enterprise class NVR solution, it provides the processor and RAID enclosure in one chassis for space and cost savings along with easy-to-use desktop clients, Mac or PC browser web client, and mobile apps for remote connectivity and monitoring. Multiple NVR deployments for system expansion is easily managed via MAXPRO® VMS enterprise video management system and intelligent command.
Honeywell - HNMHE192E360T18 - Features
- 2U, 20 bay including rack mount kit, included
- Dual (2X) Intel Xeon Silver 4310 processors
- Includes quad 1GbE LAN Ports plus 2x 10Gbe LAN ports
- 64GB memory with 64 TB up to 440 TB internal raw storage capacity
- Multi-steam support for maximum 768 streams.
- Base software: Microsoft SQL Server 2019 Express; Windows 10 LTSC 2021; Windows Server 2022 (optional)
- 2 solid state drives with operating system and 12 bays for infield upgrade options of 4TB, 8TB, 12TB, 18 TB or 22TB SATA hard drives.
- Intuitive user interface offers feature-rich user experience as intelligence events captured from cameras.
- Ultrakey Keyboard control over ethernet
- Integrates to full line of Honeywell IP Cameras and HVE encoders
- Native device integrations: 4K resolution, H.265 video compression codec, 3D PTZ control, 360° camera and multi-imager cameras and advanced intelligence events.
- Simultaneous recording, live monitoring, search and system management for up to 256 IP cameras including high-definition formats
- Patented video surround feature tracks subjects of interest as they move between areas covered by adjacent cameras.
- 2-way audio, for specific IP camera models
- NDAA Section 889 compliant
- 5 Year Hardware Warranty
Specifications
Specifications
Honeywell - HNMHE192E360T18 - Certifications
- ONVIF Profile S, G, T
- PSIA
- Emissions: FCC Part 15B Class A
- Safety: ANSI/UL 62368-1, Canada ICES-003, issue 7, Class A/CSA C22.2 No. 62368-1
Honeywell - HNMHE192E360T18 - Specifications
| Database | Microsoft® SQL Server® 2019 Express |
|---|---|
| Image Compressions Supported | MJPEG, MPEG-4, H.264, H.265 |
| Processor | Dual (2X) Intel Xeon Silver 4310, 2.1 GHz |
| Memory | 64GB TruDDR4 3200 MHz RDIMM |
| POWER SUPPLY | 1+1 750W (230V/115V) Platinum Hot-Swap Power Supply |
| Network | Quad 1GbE LAN Ports, Dual 10Gbe LAN ports |
| RAID CARD | RAID Level 0, 1, 5, 6,or 10 |
| AUDIO | Line IN, Line Out and MIC In |
| Mouse and Keyboard | 2 x USB |
| Monitor Output | 1x VGA |
| Input Voltage | 110/220 VAC 50/60 Hz |
| Operating Voltage | 120/240V Auto-sensing |
| Dimensions (W X H X D) | 17.5 x 3.4 x 30 inches / 444.5 x 86.36 x 762 mm |
| Weight | 85.5 lbs / 38.8 kg (fully populated) |
