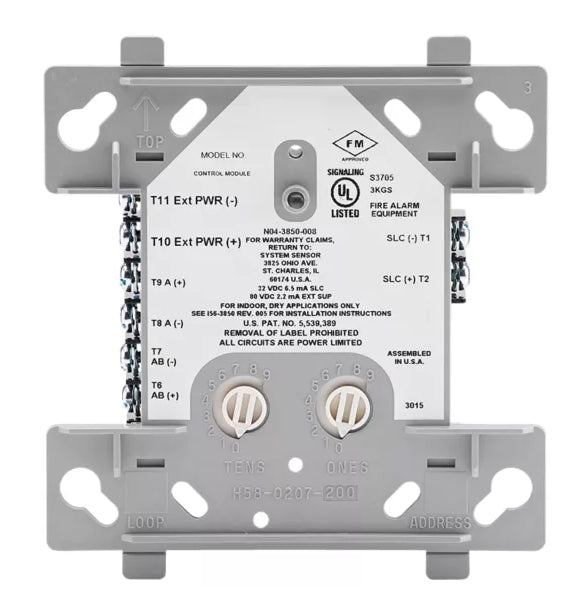

Honeywell IDP-CONTROL | Addressable Control Module, 15 to 32 VDC, For Farenhyt Series FACPs

The IDP-Control is an addressable notification module for Honeywell Farenhyt Series fire alarm control panels (FACP) . The IDP-Control gives you, the flexibility to add notification circuits. They are needed on an Farenhyt FACP signaling line circuit (SLC) loop. Provides supervised monitoring of wiring to load devices. That requires an external power supply, like bells, horns, and strobes. It is capable of Class B and Class A supervision. Upon command from the FACP, the IDP-Control will disconnect the supervision. And connect the external power supply across the load device. The disconnection of the supervision provides a positive indication to the panel that the control relay is turned on. The external power supply is always relayed isolated from the SLC loop. That a trouble condition on the power supply will never interfere with the rest of the system. Module mounts directly into a 4 in. square electrical box with a minimum depth of 2-1/8 in.Compatible with these Farenhyt Series FAC
