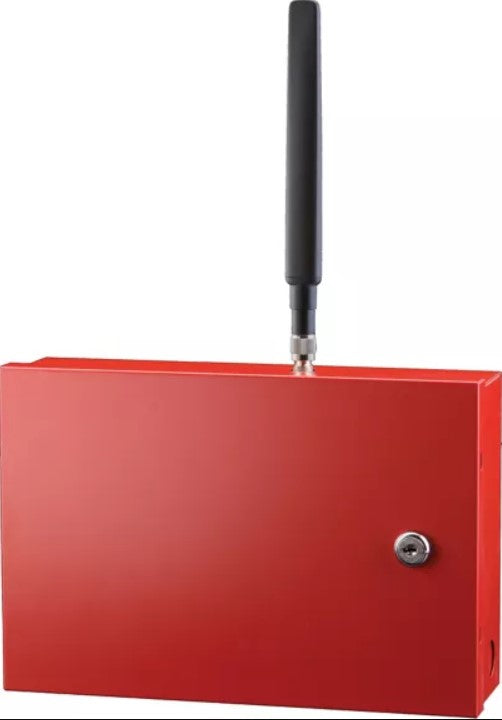

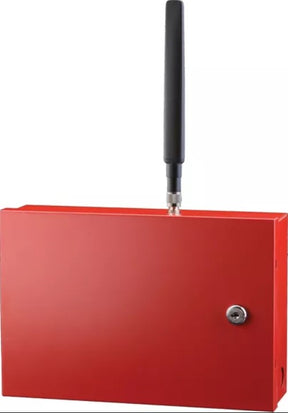

Honeywell Silent Knight HW-TG7LVF02 | Clss-Enabled Lte Commercial F...
Description
Description
The CLSS LTE Fire Communicator transmits alarm signals from the fire panel over the LTE networks of AT&T (HW-TG7LAF02) and Verizon (HW-TG7LVF02) to the designated monitoring station while leveraging connectivity with CLSS to enable powerful tools. Compliant with 2019 and earlier editions of NFPA 72, the CLSS LTE Fire Communicator can serve as the sole communication path. For existing installations, all landlines dedicated to the master control unit can be replaced with a single CLSS LTE Fire Communicator because of its 5 or 60-minute supervision modes.
Honeywell Fire Systems - HW-TG7LVF02 - Features
- Integration with CLSS enables monitoring of event transmission data & management of device inventory from the CLSS mobile app and web portal (available only when using Contact ID and point-based reporting)
- Alarm format support for contact ID, SIA2, pulse (3x1, 4x2), modem lle, IIIa, and DMP
- Certified for use on the AT&T and Verizon LTE networks
- Meets UL 864 requirements for sole primary or backup path communications
- Minimizes false alarms by providing dual paths for self-tests
- Falls back to 3G/4G if an LTE network is not available, for extended network coverage
- 60- or 5-minute cellular supervision available; 180-seconds available in Canada
- Telephone line monitor built-in, with standard line security
- Automatic self-test (daily or 6-hour)
- Available relay output for tripping the alarm control panel when a trouble condition occurs
Specifications
Specifications
Honeywell Fire Systems - HW-TG7LVF02 - Specifications
| UNSPSC Code | 46191505 |
|---|---|
| Power Consumption | 40 mA (Standby) 160 mA (Transmission) with link supervision enabled |
| Source | 12 VAC, 800mA UL listed plug-in transformer (included) |
| Dimensions | 7.5” (190.5 mm) H x 11.5" (292 mm) W x 3.5" (89 mm) D |
| Operating Environment | 32°F (0°C) to 122°F (50°C); up to 95% humidity (noncondensing) |
