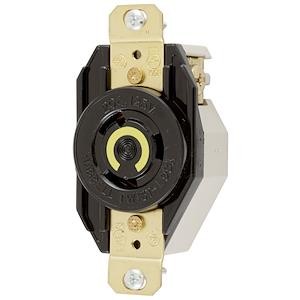

Hubbell Premise Wiring HBL2310 | Flush Receptacle, 20 A, 125 V, 2-Pole, 3-Wire, Black
Locking Devices, Twist-Lock, Industrial, Single Flush Receptacle, 2A 125V, 2-Pole 3-Wire Grounding, NEMA L5-2R, Screw Terminal, Nylon face, Back and side wired, Black
Hubbell Premise Wiring - HBL2310 - Features
- High-impact, abuse-resistant nylon face
- Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
- Face color coding by voltage facilitates locating and mating of proper devices
- All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
Specifications
Specifications
Hubbell Premise Wiring - HBL2310 - Product Categories
- Electrical Supplies and Lighting
- Electrical Supplies
- Locking Wiring Devices
- Locking Receptacles
Hubbell Premise Wiring - HBL2310 - Specifications
| Manufacturer Name | Hubbell Premise Wiring |
|---|---|
| Manufacturer Part Number | HBL2310 |
| Item Description | Flush Receptacle, 20 A, 125 V, 2-Pole, 3-Wire, Black |
| Amperage Rating | 20 A |
| Amperage | 20 |
| Base Material | Glass-Reinforced Thermoplastic Polyester |
| Color | Black |
| Conductor Size | 16 to 8 AWG |
| Connection Type | Screw Terminal |
| Contact Material | Brass |
| Dielectric Strength | 2000 V |
| Dielectric Voltage | 2000 |
| Face Material | Nylon |
| Face OD | 1.56 in |
| Ground | Grounding |
| Grounding Type | Grounding |
| HP Rating | 1 HP |
| Height | 1.23 |
| Horsepower | 1 |
| Length | 3.28 |
| Material | Nylon |
| Mounting Style | Screw Mount |
| Mounting Type | Screw |
| Mounting | Flush |
| NEMA Rating | L5-20R |
| Nema Configuration | L5-20R |
| Number Of Poles | 2P |
| Number Of Wires | 3 |
| Number of Poles | 2P |
| Number of Wires | 3 |
| Operating Temperature | -40 to +75 |
| Phase | 1 |
| Product Type | Single Flush Receptacle |
| Special Rating | UL Listed To UL 498; CSA Certified to Specification C22.2 No. 42 |
| Temperature Rating | -40 to +75 C |
| Terminal Type | Screw |
| Type | Single Locking |
| Voltage | 125 |
| Width | 1.7 |
| Wire Size - Maximum | 8 |
| Wire Size - Minimum | 16 |
