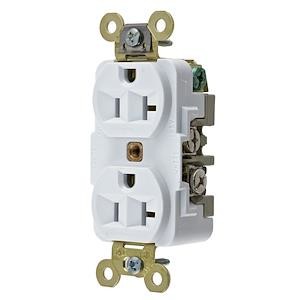

Hubbell Premise Wiring HBL5362W | Duplex Receptacle, 20 A, 125 V, 5-20R, White
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description
HBL extra heavy-duty max industrial series - Hubbell's commitment to quality continually reinforces a philosophy of unrivaled performance. No Hubbell device exemplifies this philosophy more than the HBL5262. While all Hubbell receptacles are designed and manufactured to withstand even the harshest environments, none match the total performance of the HBL5262. Whether in a factory, office building or school, the Hubbell HBL5262 is the receptacle of choice when people are depending on the safety and reliability of a receptacle. The safest, most reliable design for a low-resistance flow of fault currents. Oversized "bell" shaped ground contacts, along with nickel-plated steel retaining shields, help minimize damage to the grounding system during abrupt pull-out.
Hubbell Premise Wiring - HBL5362W - Features
- Back wired ground terminal allows faster, easier installation
- One-piece brass integral ground strap
- Finder Groove Face
- Deep body design with circuit ID face
Specifications
Specifications
Hubbell Premise Wiring - HBL5362W - Product Categories
- Electrical Supplies and Lighting
- Electrical Supplies
- Straight Blade Wiring Devices
- Straight Blade Receptacles
Hubbell Premise Wiring - HBL5362W - Specifications
| Manufacturer Name | Hubbell Premise Wiring |
|---|---|
| Manufacturer Part Number | HBL5362W |
| Item Description | Duplex Receptacle, 20 A, 125 V, 5-20R, White |
| Amperage | 20 A |
| Color | White |
| Ground Type | Grounding |
| Industry | Industrial |
| Mounting Location | Wall-mount |
| Mounting Type | Screw-mount |
| NEMA Configuration | 5-20R |
| Number of Poles | 2P |
| Number of Wires | 3 |
| Outlet Configuration | Duplex |
| Standards | UL, CSA |
| Voltage | 125 V |
| Wattage | 2500 W |
| Wire Size Maximum | 10 AWG |
| Wire Size Minimum | 12 AWG |
| Wiring Method | Back;Side |
