Brand: Hubbell Premise Wiring
|
SKU:
9998373

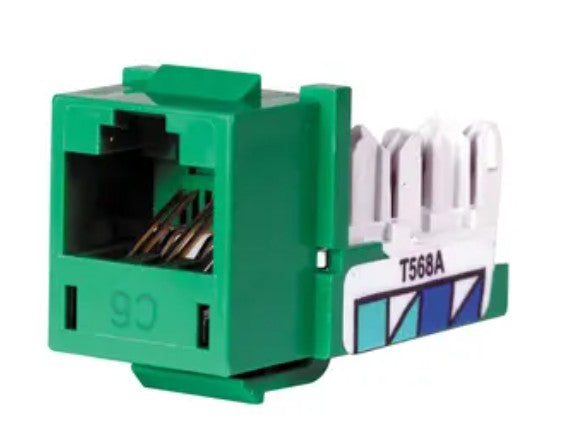

Hubbell Premise Wiring HXJ6GN24 | Modular Jack, Cat 6, IDC, UTP, RJ45 Jack, 1000VAC, Green
Regular price
$329.05
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hubbell Premise Wiring HXJ6GN24 | Modular Jack, Cat 6, IDC, UTP, RJ...
Regular price
$329.05
Unit price
Brand: Hubbell Premise Wiring
|
SKU:
9998373
Regular price
$329.05
Unit price
Shipping calculated at checkout.
Description
Description
Hubbell Premise Wiring HXJ6GN24 | Modular Jack, Cat 6, IDC, UTP, RJ45 Jack, 1000VAC, Green
The NEXTSPEED Category 6 system is designed to deliver headroom beyond 500MHz for dependable Multi-gigabit Ethernet applications. NEXTSPEED˜s extended bandwidth provides reliability with zero bit error rate performance for todays high speed digital communications.
Hubbell Premise Wiring - HXJ6GN24 - Features
- Third Party Verified Category 6 Component Compliant
- Exclusive 1-Punch Termination Reduces Termination Time by 75%
- Mating Cycles Exceed Industry Standard by Four Times
Specifications
Specifications
Hubbell Premise Wiring - HXJ6GN24 - Product Categories
- Network Cabling Infrastructure
- Copper Cabling Infrastructure
- Copper Connectivity
- Copper Jacks
Hubbell Premise Wiring - HXJ6GN24 - Specifications
| Manufacturer Name | Hubbell Premise Wiring |
|---|---|
| Manufacturer Part Number | HXJ6GN24 |
| Item Description | Modular Jack, Cat 6, IDC, UTP, RJ45 Jack, 1000VAC, Green |
| Application | Up to 5GBASE-T, 802.3bt POE |
| Body Material | High-impact thermoplastic (UL 94V-0) and Diecast Zinc |
| Category | Category 6 |
| Color | Green |
| Configuration | 8 Position |
| Connection | 1 Punch, IDC |
| Contact Point Material | Beryllium Copper with Gold Over Plating |
| Contact Resistance | 100 |
| Contact | Phosphor Bronze with 100 Micro-Inch Tin Over Plating |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Frequency | 60 |
| Height | 0.87 in. (22mm) |
| Length | 1.39 in. (35mm) |
| Material | Thermoplastic |
| Module Type | Telephone/Data Jack |
| Mounting Type | Snap-fit |
| Mounting | Keystone |
| Number of Ports | 1 |
| Operating Cycles | 2000 Plug |
| Product Type | Modular Jack |
| Shield Type | UTP |
| Size | Standard Sized Product |
| Temperature Rating | -40 to -75 |
| Termination | IDC |
| Voltage Rating | 1000 |
| Width | 0.67 in. (17mm) |
| Wiring | RJ45 Jack |
