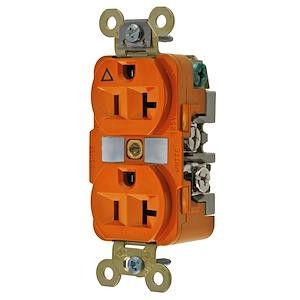

Hubbell Premise Wiring IG5362 | Isolated Ground Duplex Receptacle, 20 A, 125 V, 5-20R
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hubbell Premise Wiring IG5362 | Isolated Ground Duplex Receptacle, ...
Description
Description
Hubbell patented the first isolated ground receptacle. Today - when a clean, noise-free ground is more important than ever - Hubbell is still setting the standard. Hubbell uses insulation barrier construction on many models to isolate the ground contacts from the mounting strap. The green grounding screw is connected directly to the grounding contacts. In this way, ground contacts are separated from the mounting strap and also from the conventional grounding system. The isolated ground circuit is completed by running a dedicated insulated ground wire from the system ground buss to the green grounding screw.
Hubbell Premise Wiring - IG5362 - Features
- Triangle marking on face indicates isolated ground
- Slender compact design
- Finder Groove Face
Specifications
Specifications
Hubbell Premise Wiring - IG5362 - Product Categories
- Electrical Supplies and Lighting
- Electrical Supplies
- Straight Blade Wiring Devices
- Straight Blade Receptacles
Hubbell Premise Wiring - IG5362 - Specifications
| Manufacturer Name | Hubbell Premise Wiring |
|---|---|
| Manufacturer Part Number | IG5362 |
| Item Description | Isolated Ground Duplex Receptacle, 20 A, 125 V, 5-20R |
| Amperage | 20 A |
| Color | Orange |
| Ground Type | Isolated Ground |
| Industry | Commercial; Industrial |
| Material | Nylon |
| Mounting Location | Wall-mount |
| Mounting Type | Screw-mount |
| NEMA Configuration | 5-20R |
| Number of Poles | 2P |
| Number of Wires | 3 |
| Outlet Configuration | Duplex |
| Standards | CSA, Fed Spec, NEMA WD-6, UL |
| Voltage | 125 V |
| Wire Size Maximum | 10 AWG |
| Wire Size Minimum | 12 AWG |
| Wiring Method | Back;Side |
