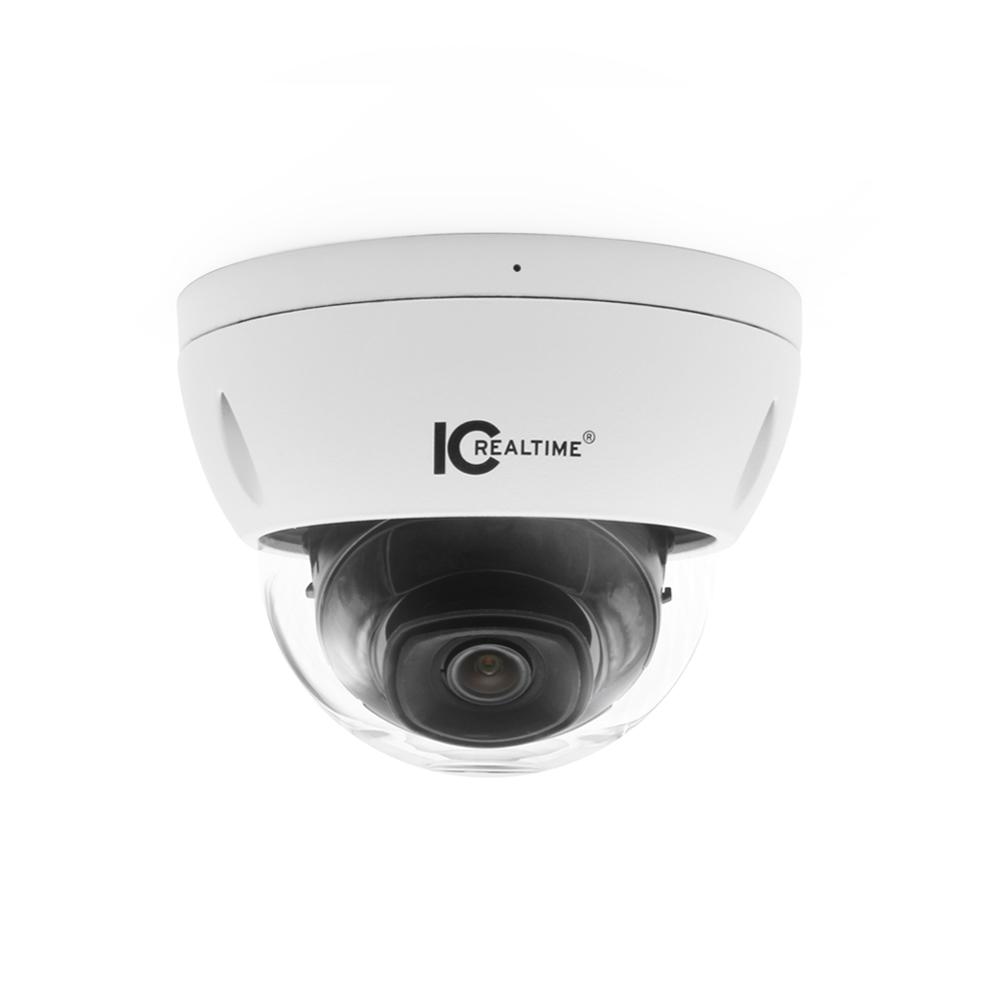

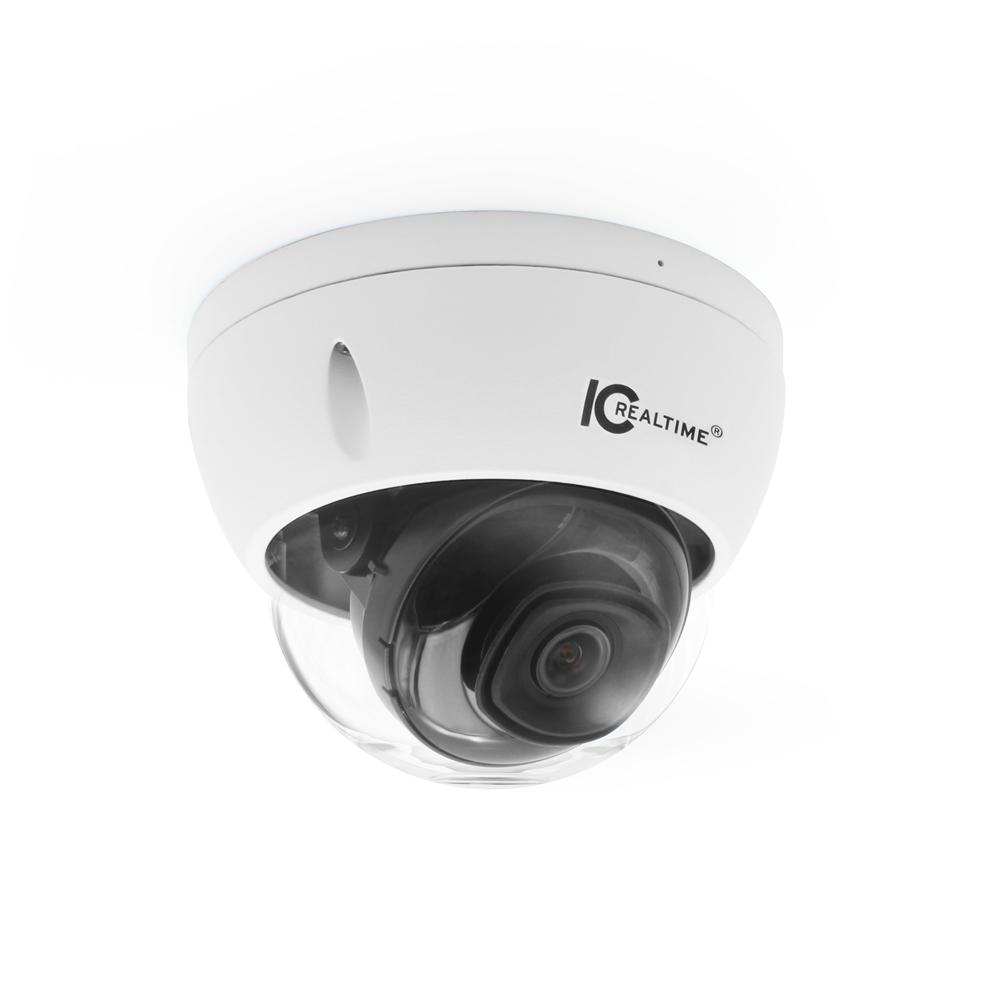

IC Realtime IPEG-D40F-IRW3 | 4MP IP Indoor/Outdoor Small-Size Vandal Dome Camera
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description
IC Realtime introduces the IPEG-D40F-IRW3, a rugged 4MP vandal-proof dome camera designed to deliver superior image quality and intelligent monitoring in a compact, durable form. Part of the cost-effective Edge lineup, this high-performance dome measures just 3.19 by 4.33 inches and features a metal housing built to withstand impact, weather, and time.
With a 1/2.9" CMOS sensor at its core, the IPEG-D40F-IRW3 captures 4MP video at a smooth 30 frames per second, delivering crystal-clear visuals and a wide 102° field of view through a fixed 2.8mm lens. Whether day or night, Smart IR with up to 98 feet of infrared range ensures visibility, while 120dB Wide Dynamic Range and Backlight Compensation help the camera adapt seamlessly to difficult lighting scenarios.
Designed for flexible installations and long-term reliability, the camera supports both Power over Ethernet and 12VDC power options. A built-in microphone captures audio, and onboard storage of up to 256GB via microSD provides local recording redundancy. Its IP67 weatherproof rating and IK10 vandal resistance make it ideal for high-risk or exposed locations, while H.265 compression keeps bandwidth and storage usage highly efficient.
The IPEG-D40F-IRW3 elevates situational awareness with intelligent motion detection enhanced by secondary filtering to accurately distinguish between human and motor vehicle activity. Advanced perimeter protection features such as virtual tripwire and intrusion detection deliver targeted alerts, and when paired with an IC Realtime NVR, enable powerful intelligent search capabilities for efficient incident review.
Fully integrated with the IC Now desktop platform and the IC View+ mobile app for iOS and Android, this camera ensures users can monitor and manage their system anytime, anywhere. Backed by a 7-year warranty and IC Realtime’s dedicated U.S.-based technical support team, the IPEG-D40F-IRW3 is built for professionals who demand smart, secure, and reliable performance from day one.
Durable, intelligent, and optimized for real-world protection-the IPEG-D40F-IRW3 redefines value in the Edge camera lineup.
IC Realtime - IPEG-D40F-IRW3 - Features
- 1/2.9" CMOS
- 4 MP@30 fps
- 2.8 mm Fixed
- 102° AoV
- Built In Mic | 256GB mSD | POE or 12VDC
- Max. IR LEDs Length 98ft | Built-in Mic
- IVS | Perimeter Protection | Intelligent Motion Detect
- 120dB WDR | BLC | PoE | IP67 | IK10
Specifications
Specifications
IC Realtime - IPEG-D40F-IRW3 - Specifications
| Image Sensor | 1/2.9" CMOS |
|---|---|
| Effective Pixels | 2688 (H) × 1520 (V) |
| RAM/Rom | 128 MB/ 128 MB |
| Scanning System | Progressive |
| Minimum Illumination | 0.006 lux@F1.6 (Color, 30 IRE); 0.0006 lux@F1.6 (B/W, 30 IRE); 0 lux (Illuminator on) |
| Illumination Distance | 98.43 ft (30 m) |
| Illumination On/Off Control | Auto;Manual |
| Illumination LEDs | 3 (IR LED) |
| Camera Illumination Type | IR |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm |
| Max. Aperture | F1.6 |
| Angle of View | H: 102°; V: 54° |
| Focus Control | Fixed |
| Close Focus Distance | 2.3 ft (1.1m) |
| DORI - Detect | 208 ft |
| DORI - Observe | 83 ft |
| DORI - Recognize | 41 ft |
| DORI - Identify | 21ft |
| Power Supply | 12 VDC/PoE |
| Power Consumption | Basic: 2.3 W (12 VDC); 2.9 W (PoE);Max. (ICR + H.265 + WDR + max. Illumination +;intelligence on): 5 W (12 VDC); 6 W (PoE) |
