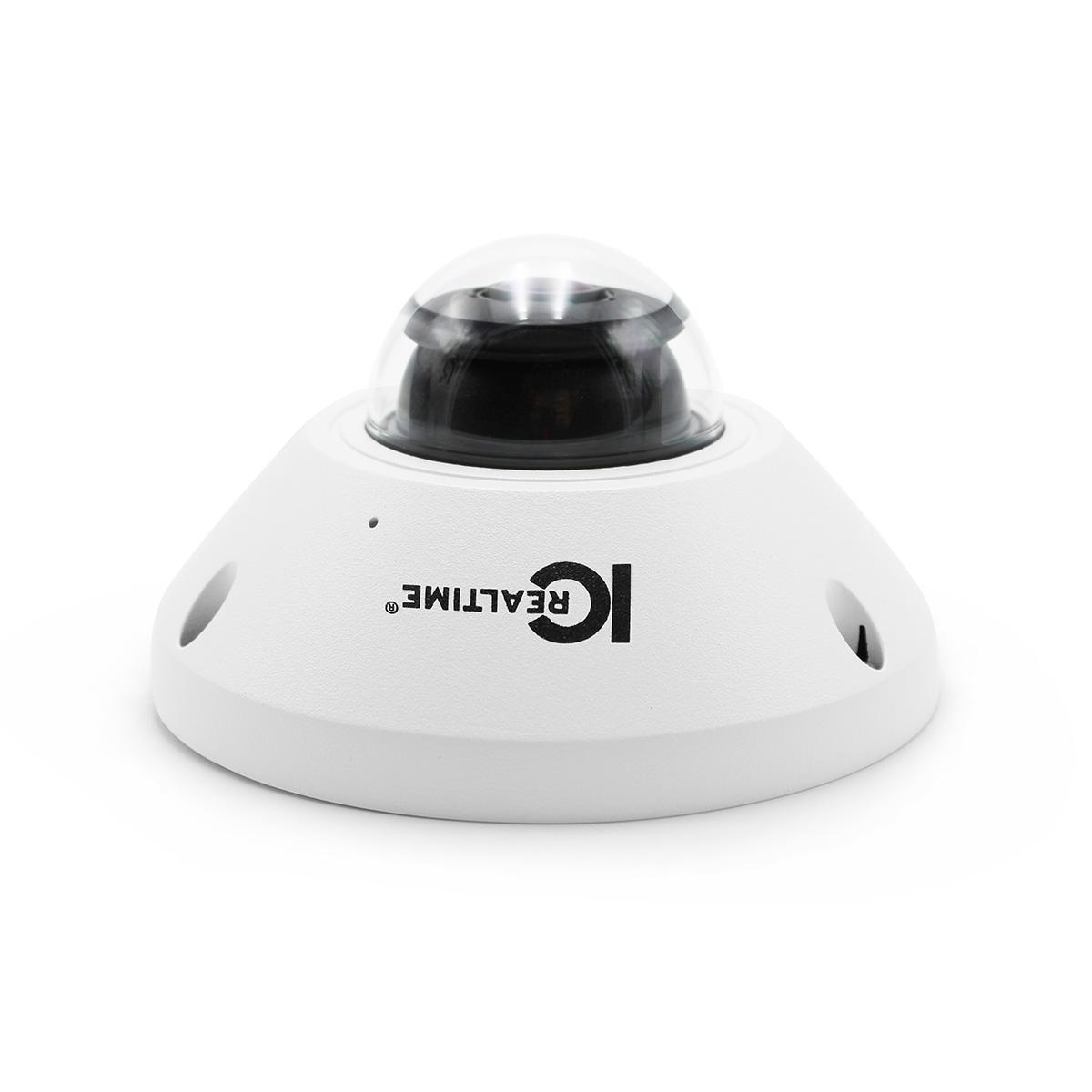

IC Realtime's latest generation 360° camera is here. The new IPEL-F50F-W2 is not only an awesome high definition "see & record everything all at once" 360-degree camera; it is an Artificial Intelligence-assisted human & vehicle detection & people data tool. The newest member of our ever-growing FlexSmartAi family, the F50F is the most advanced AI-enhanced 360° camera we have ever offered. Even if you have existing cameras, the F50F is the perfect addition to your system as a ceiling-mounted, heat mapping, people counting, motion detection human and vehicle intrusion video tool.
With the latest V2 model, the F50F joins the ranks of IC Realtime's most capable & flexible cameras. Its new FlexSmart in-camera skills enhance & complement IC Realtime's FlexSmartAi recorders to form the most advanced video detection and business intelligence system available today.
EXTREME HD & LOW-LIGHT VIDEO SENSOR 5MP (2592 × 1944) Starlight Video ChipsetIncredible low light & high definition performance with color to 0.006 Lux and 10X lower 0.0006 Lux for B/W video
OUR MOST ADVANCED VIDEO MANAGEMENT TOOLS - BUILT-IN 120dB WDR, 3D DNR, HLC, BLC, and court-admissible digital video watermarking.
BUILT-IN MIC PLUS EXTERNAL AUDIO The sensitive built-in audio mic adds sound to your video and can also be used as an audio sensor to trigger alerts. Can encode 2-way audio (Gate & door intercoms, remote mics) with the camera's video stream in PCM, G.711a & Mu, or G726 formats.
ADVANCED DETECTION & ALERTS Abnormality detection, Perimeter Protection, video tampering, scene changing, audio detection, SD card full/error, network disconnection, IP conflict, illegal access, and voltage issues.
FlexSmartAi HEAT MAPPING & NVR INTEGRATION In-camera FlexSmartAi Intelligent detection capabilities work with FlexSmartAi NVRs for unparalleled intrusion & tripwire features. Can customize heat map functions for people counting to adjust the number & time thresholds to generate an exportable heat map.
ALARM & AUDIO ACCESS Beyond excellent video resolution & low light full color, alarm system integration is a breeze with 1 in/ 1 out Alarm port leads on the pigtail for easy installation & integration.
H.265, SMART H.264+/H.265+ codecs High resolution & function can mean huge bandwidth requirements, but the F50F adapts for flexible bandwidth optimization.
ON-CAMERA SD SLOT & DUAL POWER OPTIONS Local video stream backup buffer can take up to a 256Gb Micro SD card. 6W Max 12V DC local or PoE power for installation flexibility
IP67 WEATHER & IK10 VANDAL RESISTANCE Smaller than 5" in diameter and less than 3" tall but with Full Metal case for a long weather-tight and vandal-resistant service life and wide –22°F to +131°F operating range,
NEXT LEVEL CYBERSECURITY Video encryption protocols, Digest; WSSE; account lockout; security logs; IP/MAC filtering generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot, execution & upgrade.
------------To see a live demo of the new IPEL-F50F-W2 and how this amazing camera can change the way you see video system capabilities, call us today at 866-997-9009 or see the whole IC Realtime video ecosystem anytime at www.icrealtime.com. -----------------
IC Realtime - IPEL-F50F-W2 - Features
- 1/2.7 CMOS
- 5MP
- 30fps@5MP
- 1.4mm fixed
- AoV 180
- IR Sensitive, No IR LEDs
- 1ch audio in 1ch audio out | Built in mic | 1ch alarm in 1ch alarm out | 64GB mSD
- IP67 | IK10 | 12VDC or PoE | Max. 6W
- IVS | AGC | WDR | HLC | BLC | 3DNR
Specifications
Specifications
IC Realtime - IPEL-F50F-W2 - Specifications
| Image Sensor | 1/2.7 5 Megapixel progressive scan CMOS |
|---|---|
| Effective Pixels | 2592(H) x 1944(V) |
| RAM/Rom | 128MB/ 512MB |
| Scanning System | Progressive |
| Minimum Illumination | 0.006 Lux@F2.0 (Color, 30IRE); 0.0006 Lux@F2.0 (B/W, 30IRE); 0 Lux (Illuminator on) |
| S/N Ratio | More than 50dB |
| Lens Type | Fixed |
| Mount Type | Board-in |
| Focal Length | 1.4mm |
| Max. Aperture | F2.0 |
| Angle of View | H: 180 degrees V: 180 degrees |
| Focus Control | Fixed |
| Close Focus Distance | 0.2 m (0.7 ft) |
| DORI - Detect | 92ft |
| DORI - Observe | 36ft |
| DORI - Recognize | 18ft |
| DORI - Identify | 9ft |
| Audio I/O | Built-in Microphone, 1 channel (RCA port) Input/ Output |
| Alarm I/O | 1/1 channel In/Out |
| Factory Reset | Yes |
| Memory Slot | Micro SD card 256GB |
