Description
Description

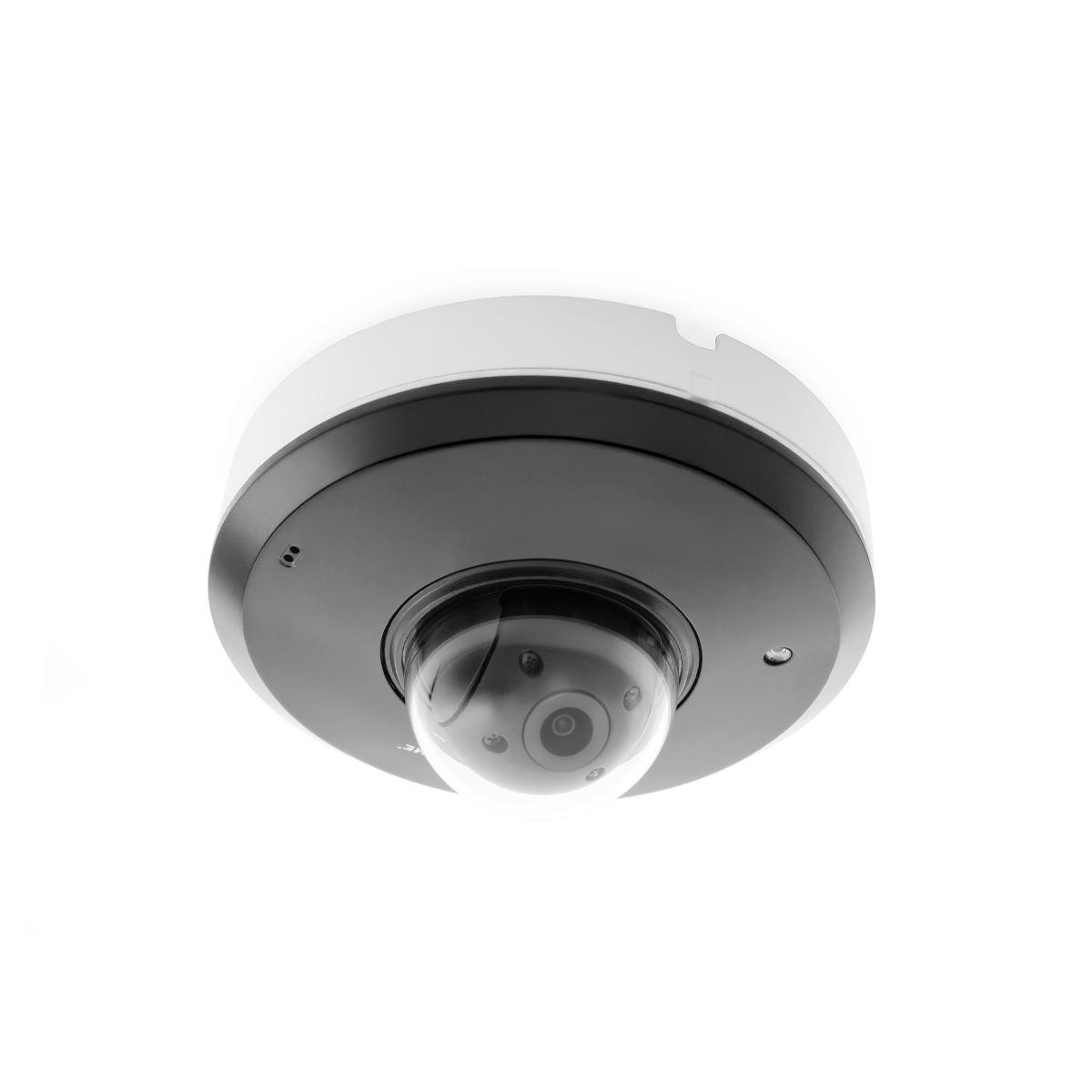

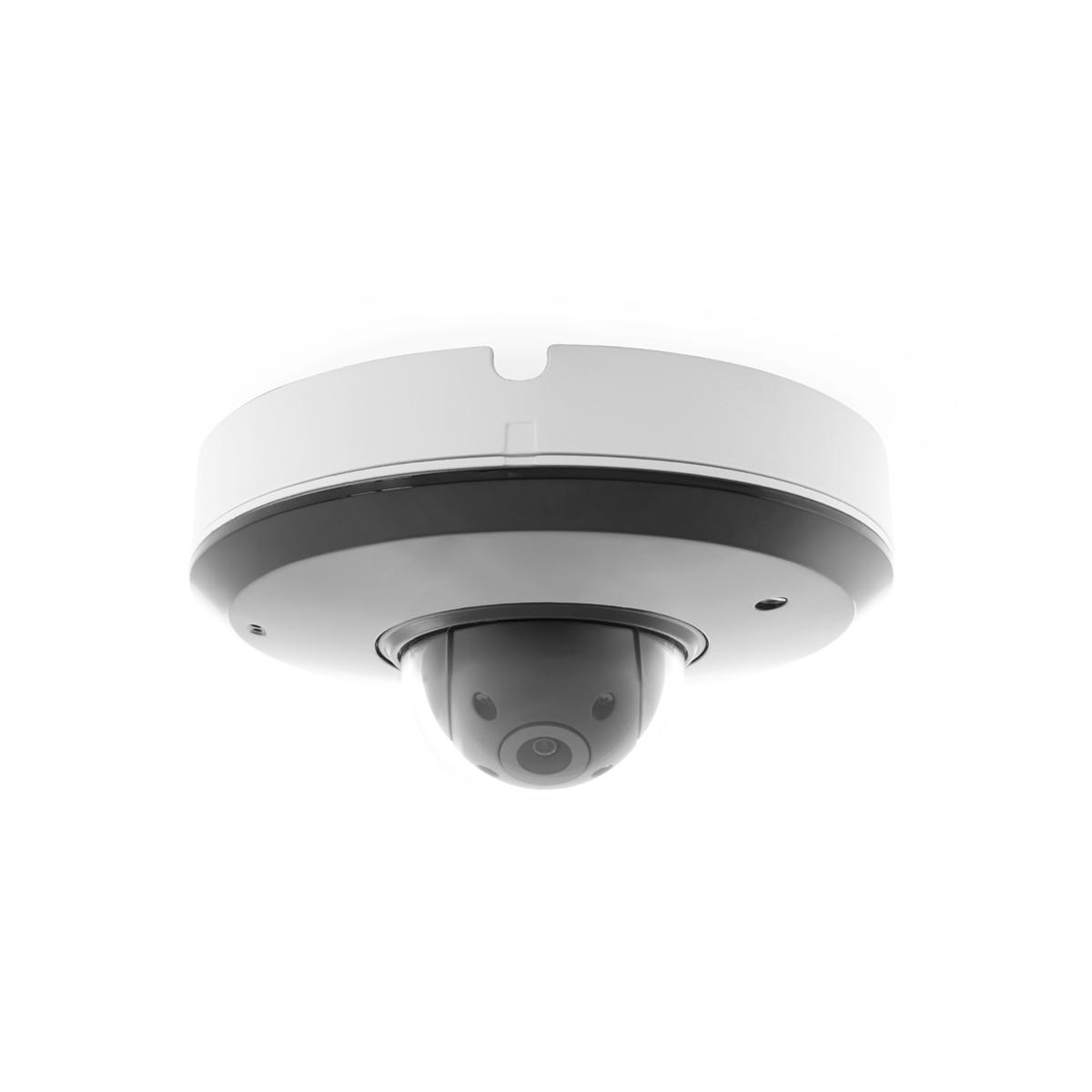

The IPFX-P4004-IRW1 is a compact, professional-grade mini-PTZ designed for applications that need movement, clarity, and AI analytics in a small footprint. It delivers 4MP resolution, smooth pan/tilt operation, and a 4× optical zoom lens that brings distant details into focus without distortion.<><>Powered by Starlight low-light technology and 65ft IR illumination, it captures clean, defined images even in challenging nighttime conditions. This mini-PTZ is engineered for residential and commercial sites where wide-angle domes aren’t enough, but full-size PTZs are too large or costly.<><>With built-in intelligent analytics, face detection, perimeter protection, and advanced iMD filtering, the IPFX-P4004-IRW1 provides reliable automation and alerting for modern installations.
IC Realtime - IPFX-P4004-IRW1 - Features
- 1/2.8" CMOS
- 30fps@4MP
- Pan, Tilt and Zoom
- H.265 & H.264 triple-stream encoding
- 2.8 mm–12 mm Varifocal Lens | 4X Optical Zoom
- Intelligent Motion Detect 2.0 | Perimeter Protection
- Starlight Support | Max IR distance: 65ft
- Built-in Mic | IP66 | IK08| PoE
Specifications
Specifications
IC Realtime - IPFX-P4004-IRW1 - Specifications
| Image Sensor | 1/2.8" CMOS |
|---|---|
| Effective Pixels | 2560 (H) × 1440 (V), 4 Megapixels |
| RAM/Rom | 256MB/ 512MB |
| Scanning System | Progressive |
| Minimum Illumination | 0.005 lux@F1.8 (Color, 30 IRE);; 0.0005 lux@F1.8 (B/W, 30 IRE);; 0 lux (illuminator on) |
| Illumination Distance | 65.62 ft (20m) |
| Illumination On/Off Control | Manual; SmartIR; Off |
| Illumination LEDs | 3 |
| Camera Illumination Type | IR |
| Lens Type | Motorized Varifocal |
| Focal Length | 2.8 mm–12 mm |
| Max. Aperture | 2.8 mm–12 mm |
| Angle of View | H: 96.9°–31.6°; V: 51.4°–17.8° |
| Optical Zoom | 4x |
| Focus Control | 0.66 ft– 1.64 ft (0.2 m–0.5 m) |
| Close Focus Distance | 0.66 ft– 1.64 ft (0.2 m–0.5 m) |
| DORI - Detect | 787 ft |
| DORI - Observe | 311 ft |
| DORI - Recognize | 157 ft |
| DORI - Identify | 78 ft |
| Audio I/O | Built-in Microphone; 1 channel Input (bare wire)/;1 channel Output (bare wire) |
| Alarm I/O | - |
| Memory Slot | Micro SD card (512 GB) |
