Brand: IC Realtime | SKU: 10675469

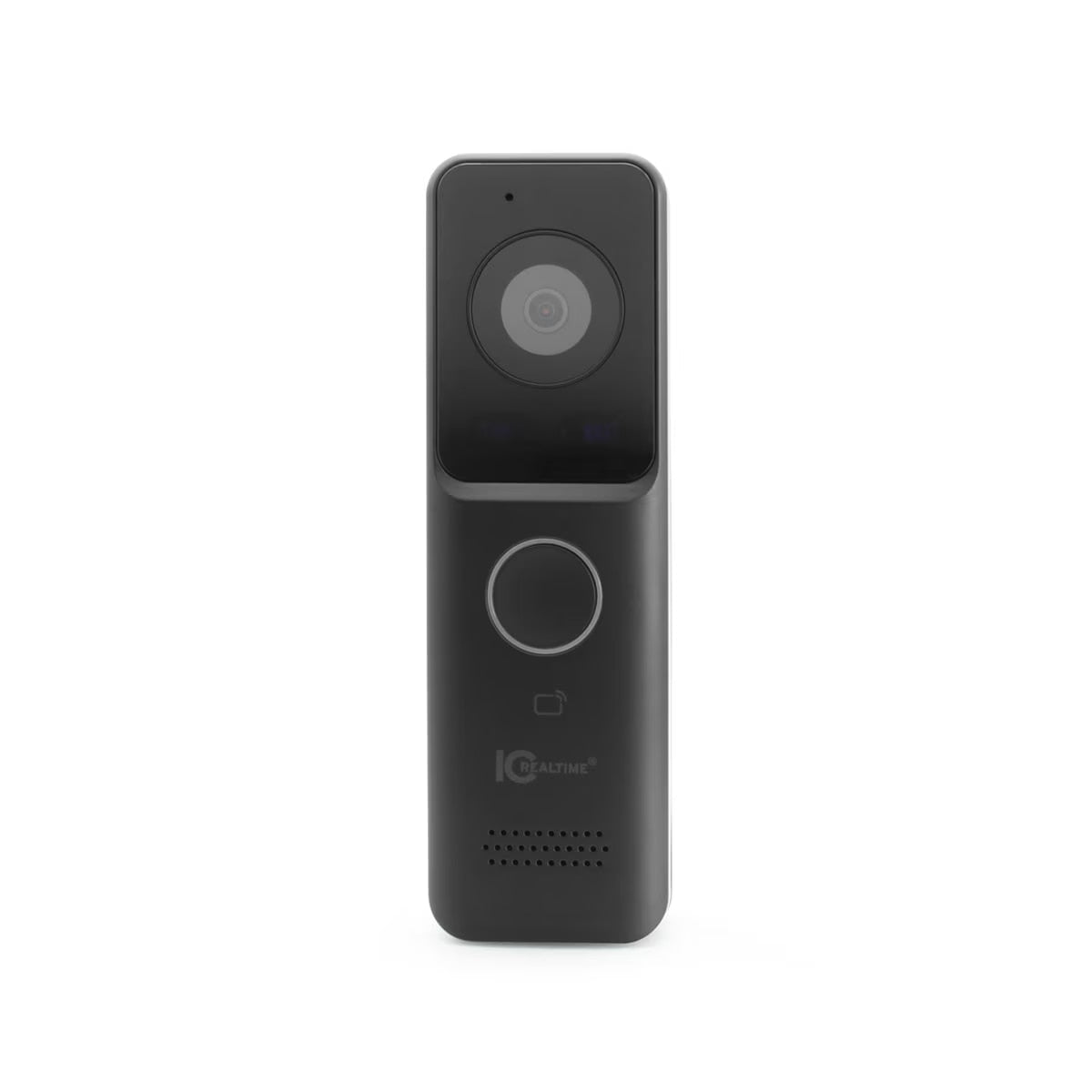

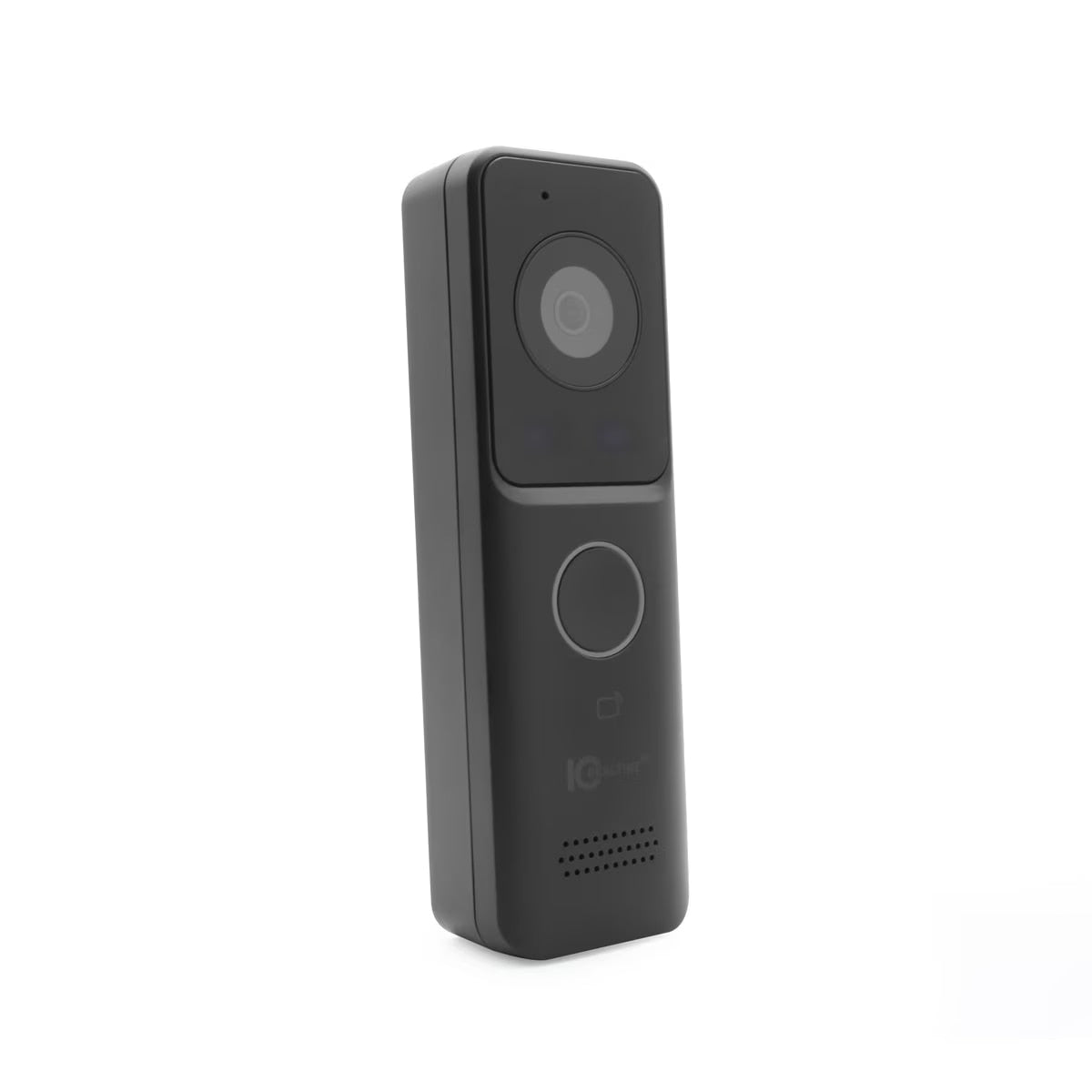

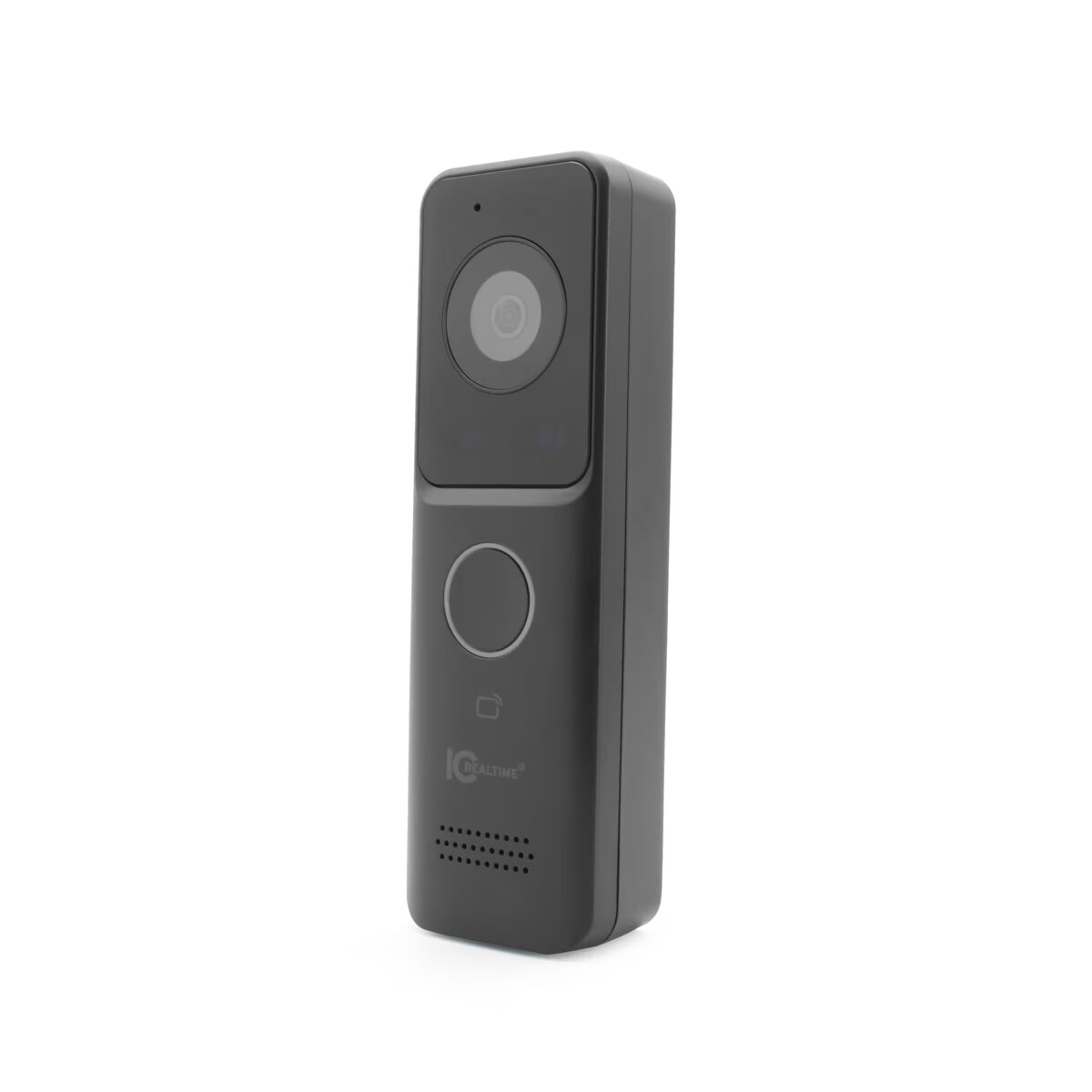

IC Realtime IPMX-DB20-IRB1 | 2MP PoE Video Entry Station with IR Night Vision, Built-In Microphone and Speaker

Regular price $598.00
Shipping calculated at checkout.
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Description

IC Realtime IPMX-DB20-IRB1 | 2MP PoE Video Entry Station with IR Night Vision, Built-In Microphone and Speaker

2MP PoE video door station with IR night vision, two-way audio, SIP intercom support, and reliable wired networking for integrated residential and SMB installations. The Dinger Pro Door Station is a professional-grade video entry solution designed for residential and small-business installations where reliability, integration, and privacy matter. Built primarily for PoE installations, it delivers stable power and network connectivity through a single Ethernet cable—eliminating common issues associated with wireless doorbells such as signal dropouts, latency, and battery maintenance.<><>With 2MP resolution, IR night vision, and a wide 110° field of view, it provides clear visitor identification day or night. Its SIP-based communication architecture allows it to function as a true intercom endpoint, routing calls across intercom panels, mobile apps, and monitoring software. As a hybrid entry solution within the IC Home lineup, the Dinger Pro Door Station gives dealers the flexibility to support both Wi-Fi-based installs and fully integrated structured-wiring environments.

IC Realtime - IPMX-DB20-IRB1 - Features

  • 2MP (1920 × 1080) @30 FPS
  • H: 110°; V: 62°; D: 133° FoV
  • 16.5ft IR Distance
  • Ethernet or WiFi network connection
  • IP65 | DC 12-33V or PoE
  • Built-In Mic & Speakers | 2-Way Talk
  • SIP Server and Protocol support
  • 256GB Micro SD Support (memory card not included)

Specifications

IC Realtime - IPMX-DB20-IRB1 - Specifications

Image Sensor1/2.8" CMOS
Effective Pixels1920 (H) ×1080 (V)
RAM/Rom128MB / 256MB
Illumination Distance16.5ft (5m)
Illumination On/Off ControlAuto / Manual
Illumination LEDs2
Camera Illumination TypeIR
Lens TypeFixed
Max. ApertureF2.1
Angle of ViewH: 110°; V: 62°; D: 133°
DORI - Detect99.5 ft
DORI - Observe39.7 ft
DORI - Recognize19.88 ft
DORI - Identify10 ft
Operating Conditions-40°F to +140°F (-40°C to +60°C)
Operating Humidity10%–90% (RH), non-condensing
Ingress ProtectionIP65
