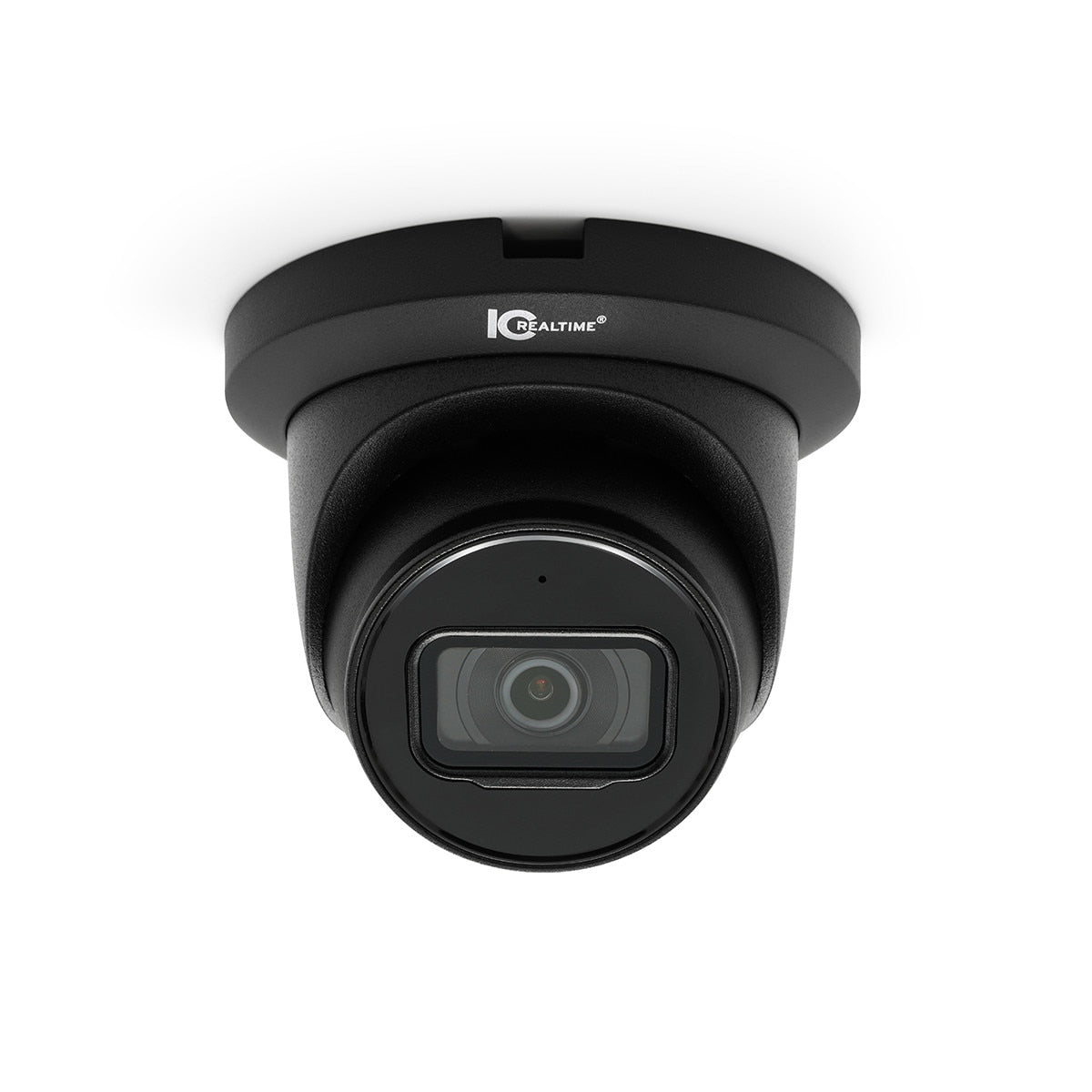

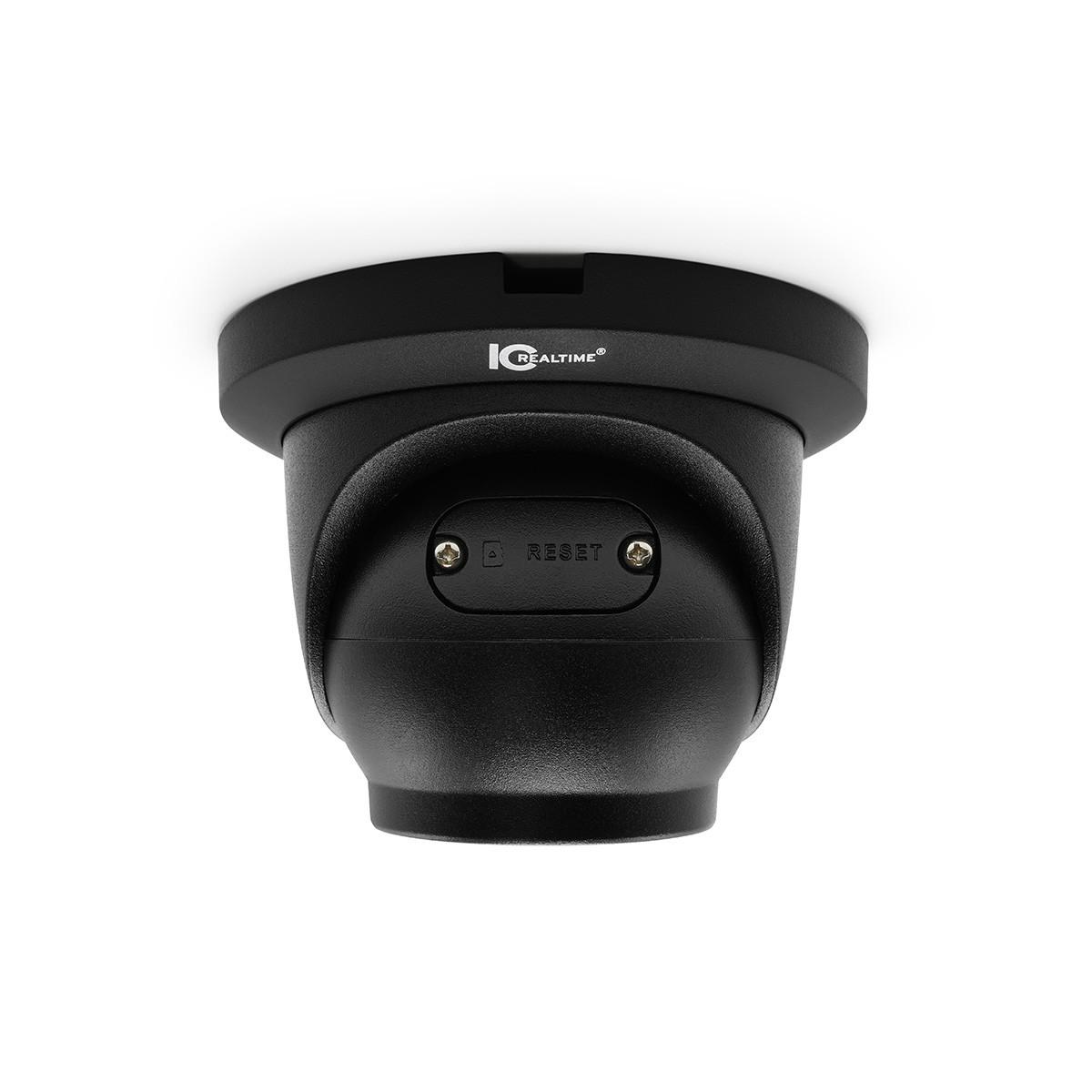

IC Realtime IPMX-E40F-IRB3 | 4MP IP Indoor/Outdoor Eyeball Dome Camera with Black Housing
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description
IC Realtime's new IPMX-E40F-IRB3 keeps the sleek Factory Black finish, cutting-edge 4MP QHD Starlight video sensor, built-in audio mic, easy installation, and FOV aiming of its IRB2 series predecessor. But detection-wise, the IRB3 is a whole new camera inside. This new version of our popular eyeball dome has our latest video enhancement innovations that deliver perfect images day & night, rain or shine. Then those ultra-detailed images are instantly used by our next-generation iMD 2.0 AI & metadata detection system. <><>Inside IPMX-E40F-IRB3, we’ve added the next evolution of IC Realtime’s FlexSmartAi detection features, our new iMD 2.0. While keeping the iMD system’s current capabilities, it now also discerns & streams frame-by-frame image metadata. While all of IC Realtime’s iMD versions use AI to some degree, iMD 2.0 takes AI object detection to the next level. Object data is extracted from and added to every video frame. The camera then encodes & streams it with the video for AI Object search on our new AI NVRs. <><>When recorded by an IC Realtime AI NVR equipped with our "select & click" multi-channel Object Search, this metadata lets the NVR find your selection on every channel equipped with an IC Realtime's iMD 2.0 AI camera. One object select & click. All iMD 2.0 channels - searched. The level of camera-based “on the fly” metadata detection & streaming needed to make this work used to be impossible. Now IC Realtime builds it in. <><>Inside the IP67 weather-resistant camera ball of IPMX-E40F, under its 102°H x 54°V FOV lens, is our advanced 4MP QHD Starlight video chipset. It delivers vibrant color streams down to .005 lux and 164 ft. of SmartIRs, meaning clear grayscale night vision even in total darkness. Those video frames are then handed off to E40F's FlexSmartAi video management suite. The secret of IC Realtime’s superior video performance, it combines 120db of WDR with built-in Smart IR illuminators & Starlight technology. The new IRB3 version’s AI now uses these tools along with Scene Self-Adaptation. AI SSA constantly rides image controls to achieve the best possible video streams 24/7 in rain, fog, backlight, or variable light.
IC Realtime - IPMX-E40F-IRB3 - Features
- 4MP, 1/3” CMOS image sensor
- Low illuminance, high image definition
- H.265 & H.264 triple-steam encoding
- AI SSA
- Intelligent Motion Detect 2.0 |Perimeter Protection
- 2.8 mm fixed lens | Built-in Microphone
- Starlight support | Max. IR LEDs Length 164 ft
- 256GB Micro SD support | IP67 | PoE
Specifications
Specifications
IC Realtime - IPMX-E40F-IRB3 - Specifications
| Image Sensor | 1/3" CMOS |
|---|---|
| Effective Pixels | 2688 (H) ×1520 (V) |
| RAM/Rom | 128MB/512MB |
| Scanning System | Progressive |
| Minimum Illumination | 0.005 lux@F1.4 (Color, 30 IRE); 0.0005 lux@F1.4 (B/W, 30 IRE); 0 lux (Illuminator on) |
| Illumination Distance | 164.0 ft (50 m) |
| Illumination On/Off Control | Auto / Manual |
| Illumination LEDs | 2 |
| Camera Illumination Type | IR |
| Lens Type | Fixed focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm |
| Max. Aperture | F1.4 |
| Angle of View | Horizontal:102°; Vertical: 54° |
| Close Focus Distance | 2.3ft (0.7m) |
| DORI - Detect | 208ft |
| DORI - Observe | 83ft |
| DORI - Recognize | 41ft |
| DORI - Identify | 21ft |
| Power Supply | DC12V, PoE (802.3af) |
| Power Consumption | Basic: 3.3 W (12 VDC); 4.2 W (PoE);Max. (WDR + IR intensity + Intelligence): 7.1 W (12 VDC); 7.9 W (PoE) |
