Description
Description

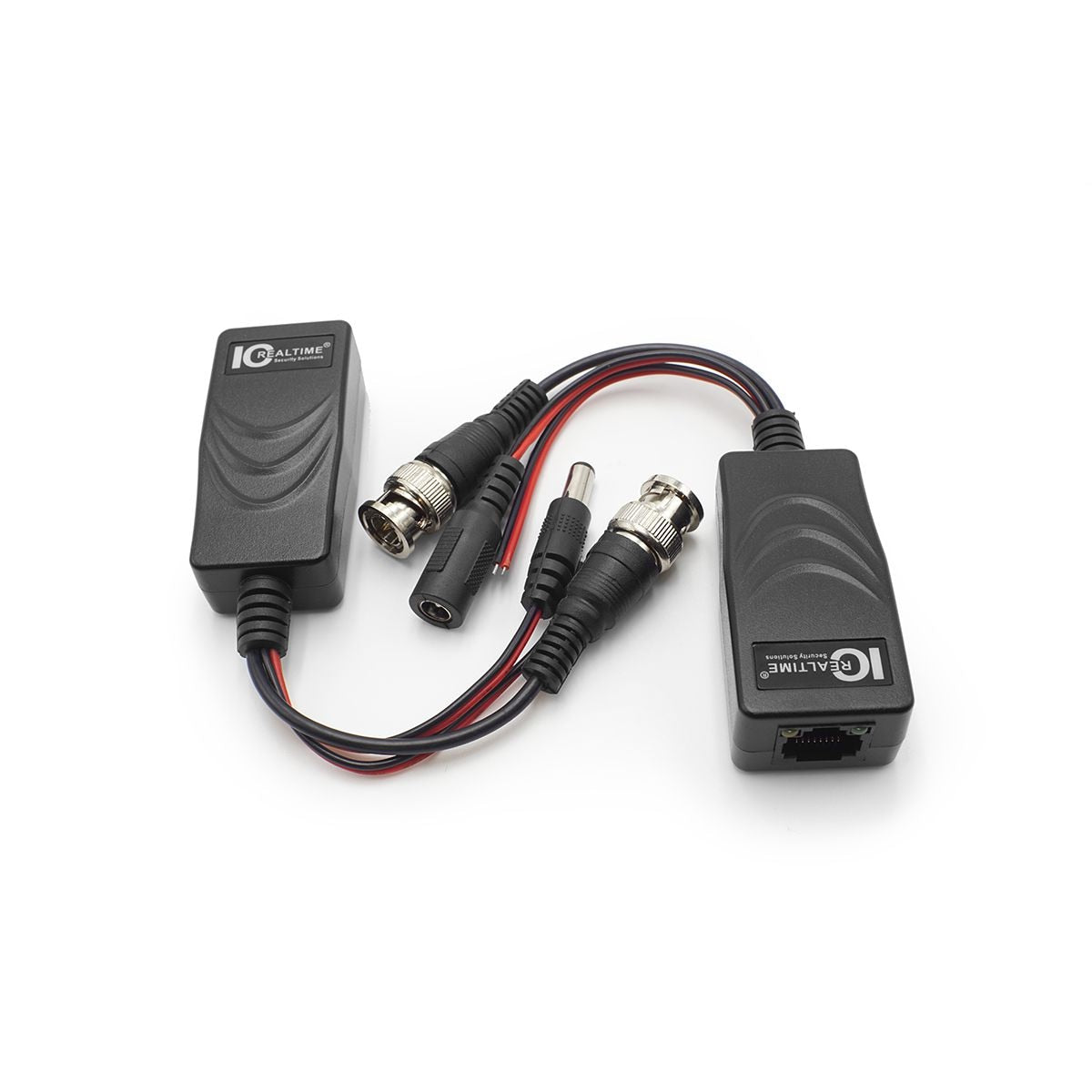

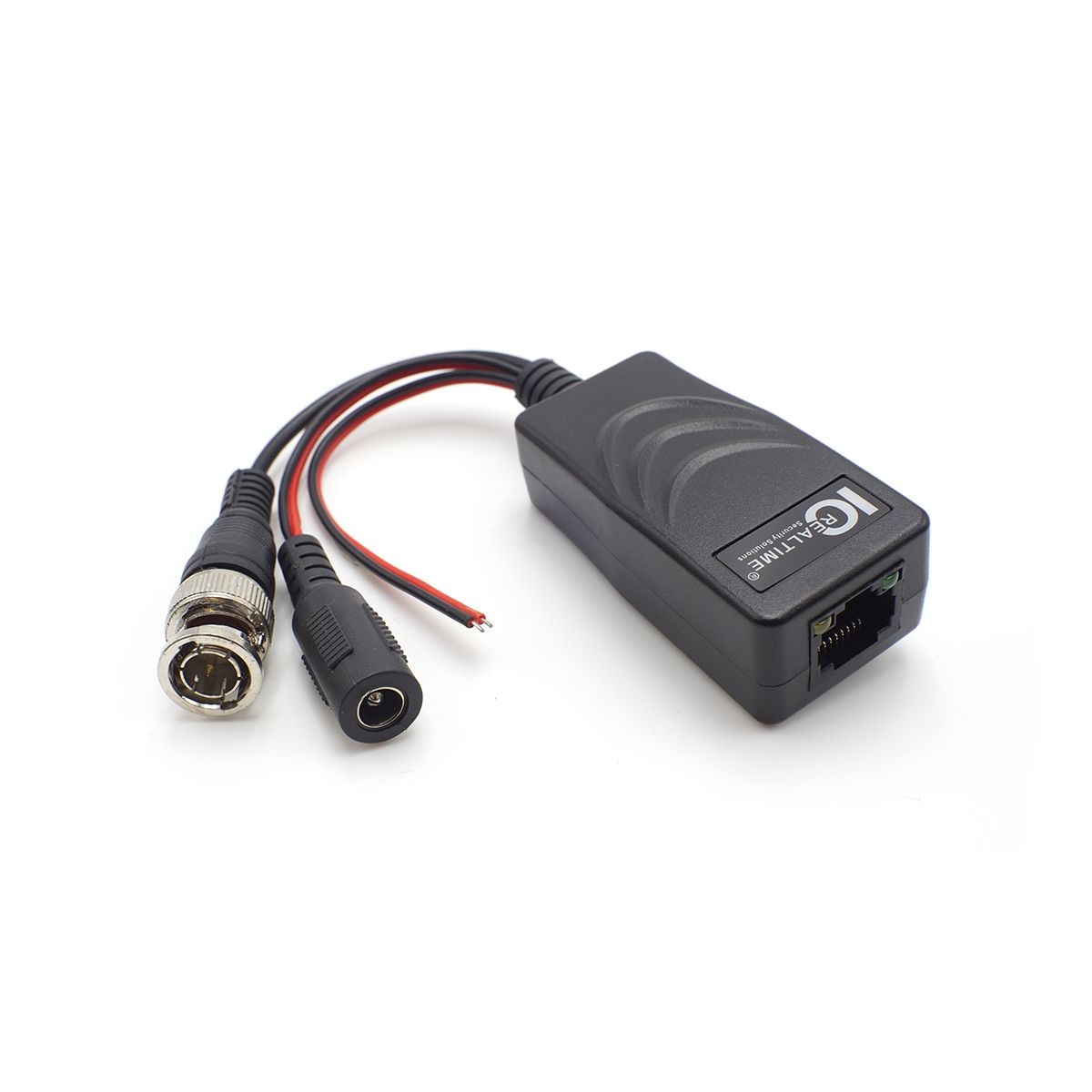

The IVB-213VPD video balun is a passive (non-amplified) device that allows the transmission of real-time CCTV video signal via cost-effective unshielded Twisted Paired (UTP) cable. Baseband (composite) signals of any type are support. Used in pairs, IVB-213VPD eliminates costly and bulky coaxial cable, allowing live CCTV color video signal (1080P max resolution support) up to 1312ft (400m), power transmission up to 656ft (200m) and PTZ signal up to 984ft(300m) The superior interference rejection and low emissions of the IVB-213VPD allow video signals to coexist in the same wire bundle as telephone, datacom, or low-voltage power circuits. This allows the use of a shared or existing cable plant. IVB-213VPD has built-in surge suppressor to protect video equipment against damaging voltage spikes. Its crosstalk and noise immunity ensure quality video signals.
IC Realtime - IVB-213VPD - Features
- Real-time transmission over UTP cat5e/6
- No power required | RJ-45 Jack for UTP cable
- Compatible with all HD- AVS/TVI/CVI/AHD/CVBS analog cameras
- Audio distance up to 984ft (300m) via UTP cat5e/6
- 1080P max resolution support
Specifications
Specifications
IC Realtime - IVB-213VPD - Specifications
| Resolution | Up to 1080P max resolution |
|---|---|
| Compatibility | AVS/TVI/CVI/AHD/CVBS analog cameras |
