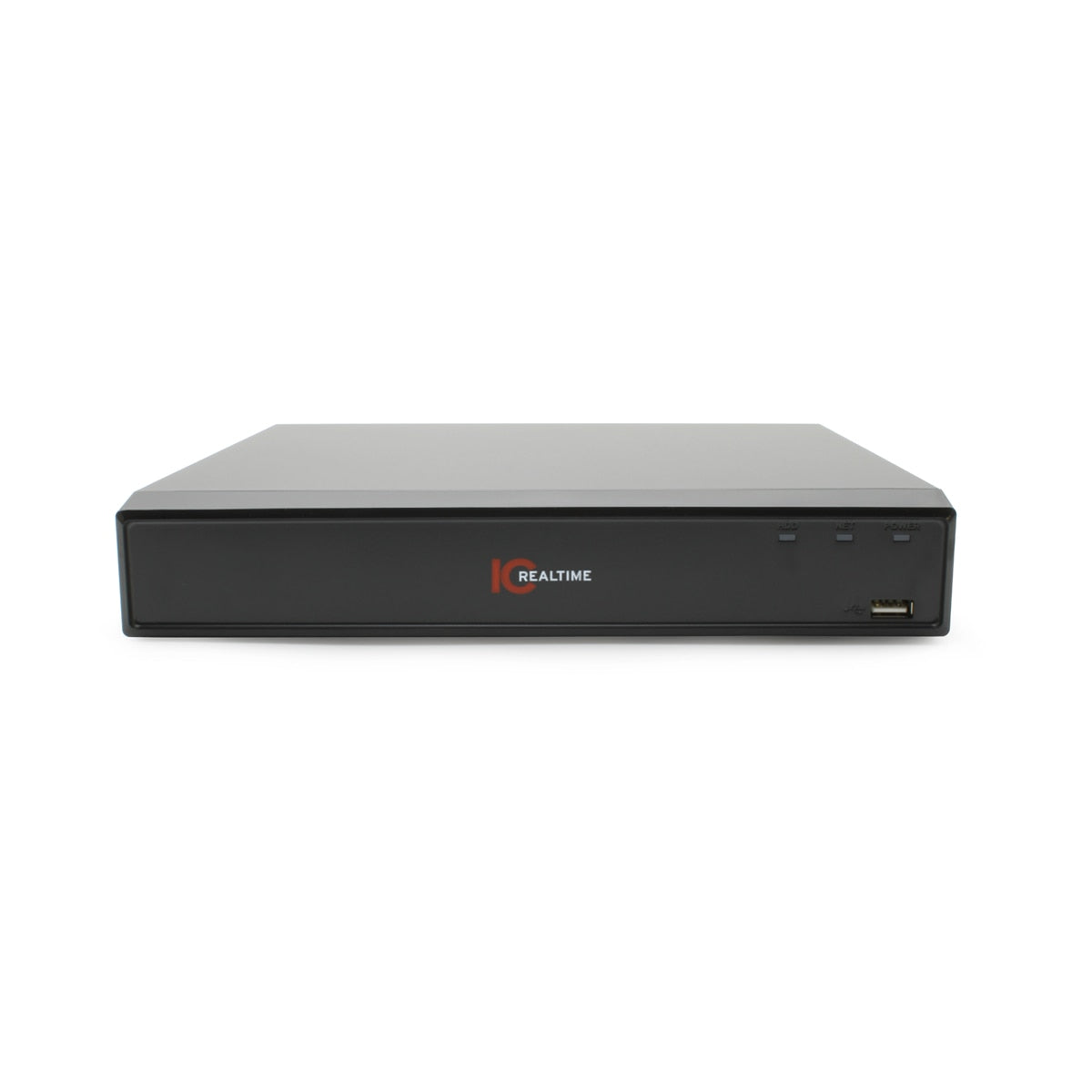

IC Realtime NVR-MX08POE-1U-4KM1-2TB | 8-Channel NVR with Integrated 8-Port PoE Switch
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
IC Realtime NVR-MX08POE-1U-4KM1-2TB | 8-Channel NVR with Integrated...
Description
Description
IC Realtime’s NVR-MX08POE-1U-4KM1 packs features like 8MP/4K resolution support and output as well as H.265 encoding technology in a compact form factor, boasting excellent performance at an affordable price. This 8 channel NVR has a built in 8 port PoE for easy plug-and-play install with IC Realtime cameras.
The NVR also supports a variety of Intelligence features by camera, such as Perimeter Protection and Intelligent Motion Detect for Human and Vehicle Recognition, as well as Face Detect. These features can be utilized by the NVR’s AI search.
IC Realtime - NVR-MX08POE-1U-4KM1-2TB - Features
- 8 Channels | Up To 12MP | 160Mbps Bandwidth
- 1 HDD | 16 TB Max (Starting At 2TB HDD)
- ICR OS 4.0 | 8 port PoE | AI+ IVS Support
- 2 USB | 1 HDMI +1 VGA
- ONVIF Conformant | 1U | Desktop Mountable
Specifications
Specifications
IC Realtime - NVR-MX08POE-1U-4KM1-2TB - Specifications
| Main Processor | Industrial-grade embedded processor |
|---|---|
| Operating System | Embedded LINUX, ICR 4.0 |
| Display Interface | 1 HDMI, 1 VGA, |
| Display Resolution | HDMI: 3840 × 2160; 1920 × 1080; 1280 × 1024; 1280 × 720; VGA: 1920 × 1080; 1280 × 1024; 1280 × 720 |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Display Split | Main Screen: 1/4/8/9 Sub Screen: 1/4/8/9 |
| HDMI Decoding | AI disabled: 1-channel 12 MP@30 fps; 2-channel 8 MP@30 fps; 3-channel 5 MP@30 fps; 4-channel 4 MP@30 fps; 8-channel 1080p@30 fps; AI enabled: 1-channel 12 MP@30 fps; 1-channel 8 MP@30 fps; 2-channel 5 MP@30 fps; 3-channel 4 MP@30 fps; 7-channel 1080p@30 fps |
| Display Out Max Decode | Simultaneous? HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 ; Different Outputs: HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Ethernet | 1 (10/100/1000 Mbps Ethernet port, RJ-45) |
| Protocol | HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search(Supports IC Realtime IP cameras, NVR, NVS, etc.); P2P; auto register |
| Web Viewer | Chrome, IE 9 or later, Edge, Safari, Firefox |
| Management Software | IC Now, IC Now Pro |
| Smart Phone | Android, iOS, iPhone (IC VIew+) |
| PoE | 8 Ports, 10/100 Mbps, IEEE 802.3 af/at; Bridge Mode |
