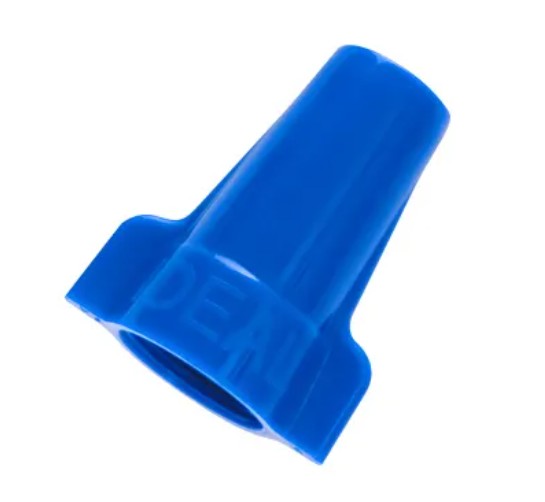

Ideal Industries 30-454 | Conn Twist-On Splice 12-6AWG Nylon Blue Spring Wing-Nut Series

The IDEAL Wing-Nut Wire Connector provides an easy, secure grip when connecting a wide range of wires. The specially designed contoured wings make for extra torque and quick work on any electrical job. The wide range, live-action spring is flexible enough to handle small combinations with ease but then expands to accept large combinations when you need it. It can also be reused on same size or larger combinations for quick and easy circuit changes and additions. Copolymer shell expands for smooth, progressive tightening providing dependable connections For use with #14 to #6 AWG copper conductors Minimum wire range: three # 12 AWG, maximum wire range: one # 6 AWG with two # 8 AWG Rated to 600-Volt max, 1000-Volt signs and fixtures Deep skirt helps protect against flash-over and turned-back strands for maximum dielectric protection Tough UL 94-Volt-2 flame-retardant shell rated at 221 degrees F UL listed to 486C and CSA certified to C22.2 #188 Live-action spring expands to accept wire shape and size with no pre-twisting required Use on bare copper wire Made in the U.S.A. of U.S. and global components WireTermination.
