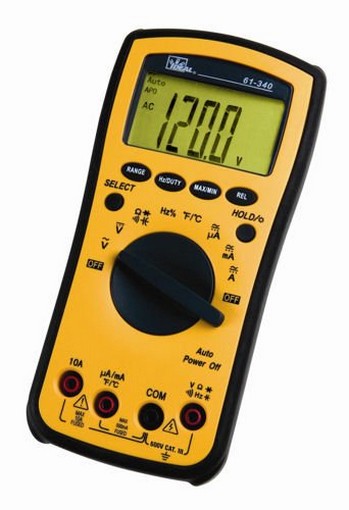

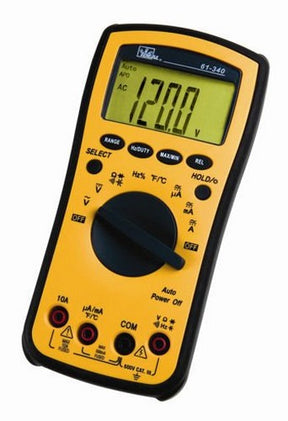

Ideal Industries 61-340 Test-Pro Multimeter
Regular price
$151.79
Unit price
Brand: Ideal Industries Usa
|
SKU:
395743
Regular price
$151.79
Unit price
Description
Description
This multifunctional multimeter also measures Relative mode, Temperature, Frequency, Capacitance, Audible continuity, and Resistance.
Features AC/DC current
AC/DC voltage
Backlight
Relative mode
Temperature
Frequency
Capacitance
Audible continuity
Resistance
Min/max
Data hold
Low battery indication
Auto power off
Specs Manufacturer Ideal Industries Usa
Condition New
Display count 3 3/4 digit liquid crystal display, max count 3999
Numeric update rate 2.5 times / sec
Polarity display Automatic
Over range display “OL” is displayed
Low battery indicator Battery symbol indicated
Automatic power-off time Automatic power off ? 10minutes
Power source 9.0V battery: types- NEDA 1604, JIS006P, IEC6F22 for both 61-340 and 61-342
Maximum input voltage 1000Vrms CAT III between V and COM
Maximum floating voltage 1000Vrms CAT III between any terminal and earth ground
Maximum input current 400mA between ?A /mA and COM
Overload protection mA connector 500mA (500V) fast blow fuse
Overload protection 10A connector 10A (500V) fast blow fuse
?A /mA connector ?A, mA, Temp
Temperature Coefficient 0.1×(Spec. Accuracy) per °C, <18°C or >28°C
Battery Life Alkaline 9V, ? 200 hours for 61-340
