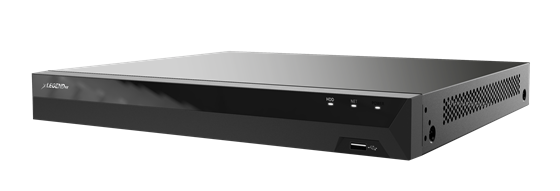

Inaxsys Security Systems | 16-Channel 4K Universal DVR
Regular price
$646.83
Unit price
Brand: Inaxsys Security Systems
|
SKU:
10498653
Regular price
$646.83
Unit price
Description
Description
Inaxsys Security Systems LGNX1624KUVR | 16CH 4K UNIVERSAL DVR
Inaxsys Security Systems - LGNX1624KUVR - Features
- This UVR device supports multiple video input formats, including HDCVI, AHD, TVI, CVBS, and IP, with a maximum of 20 IP channels and up to 4K resolution. It features 16 channels of smart motion detection, audio over coaxial for all channels, and has 4 audio inputs, 1 audio output, 16 alarm inputs, and 4 alarm outputs with a bandwidth of 72Mbps.
- Supports HDCVI/AHD/TVI/CVBS/IP video inputs
- Maximum 16 channels smart motion detection
- Audio In/Out: 4/1, Alarm In/Out: 16/4
- Bandwidth : 72Mbps
- All channels Audio over coaxial
- Maximum 20 channels IP Camera inputs, up to 4K
- Ordering Information
- Storage Capacity
- LGNX1624UVR2T
- 2 TB
- LGNX1624UVR4T
- 4 TB
- LGNX1624UVR6T
- 6 TB
- LGNX1624UVR8T
- 8 TB
- LGNX1624UVR10T
- 10 TB
- LGNX1624UVR12T
- 12 TB
- LGNX1624UVR14T
- 14 TB
- LGNX1624UVR16T
- 16 TB
- LGNX1624UVR20T
- 20 TB
Specifications
Specifications
Inaxsys Security Systems - LGNX1624KUVR - Product Categories
- Security
- Video Surveillance
- Video Recorders
Inaxsys Security Systems - LGNX1624KUVR - Specifications
| Brand Name | Inaxsys Security Systems |
|---|---|
| Manufacturer Part Number | LGNX1624KUVR |
| Item Description | 16CH 4K UNIVERSAL DVR |
| Type | Dvr |
| UNSPSC Code | 46171621 |
| UPC | 685225309086 |
| Analog Video Input | 16-Channels (1.0Vp-p, 75 ?) |
| HDTVI Input | 8MP / 5MP / 4MP / 1080P / 720P |
| CVI Input | 8MP / 4MP / 1080P / 720P |
| AHD Input | 8MP / 5MP / 4MP / 1080P / 720P |
| CVBS Input | Supported |
| IP Video Input | Up to 20-Channels, Resolution up to 8MP |
| Audio Input | 4-Channels, RCA (2.0Vp-p, 1K?) |
| Two-Way Audio | 1-Channel, multiplex with Audio Input (RCA) |
| HDMI | 1-Channel, Resolution: 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| VGA | 1-Channel, Resolution: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| CVBS | 1-Channel, BNC (1.0Vp-p,75?), Resolution: PAL: 704 x 576, NTSC: 704 x 480 |
| Audio Output | 1-Channel, RCA (Linear, 1k?) |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Encoding Resolution | 8MP / 5MP / 4 MP / 1080P / 1080P Lite / 720P / 960H / D1 |
| Resolution Main stream | 8MP @ 7fps, 8MP-N @ 15fps, 5MP @ 12fps, 4MP @ 15fps, 1080P/720P/960H/D1 @ 25fps (P) /30fps (N) |
| Frame Rate | PAL: 1-25fps NTSC: 30fps |
| Audio Compression | G.711a |
| Audio Bit Rate | 64kbps |
| Playback Number | 8-Channels: 8MP Playback, 8-Channels: 8MP-N Playback |
| Smart Playback | Enhanced playback with advanced search features, such as motion or object detection for faster review |
| Normal Playback | Standard, continuous playback of recorded footage |
| Segmented Playback | Splits recorded footage into time segments for easier navigation |
| Tagged Playback | Allows playback of video segments that have been labeled or tagged for easy access |
| Event Playback | Focuses playback on recorded events like motion detection or alarms |
| Picture Playback | View recorded footage in still image format for detailed inspection |
| Backup Mode | USB Device / Network |
| Smart Detection Analog | 16-Channels: line crossing detection, intrusion detection |
| Smart Detection IP Camera | Line crossing detection / Area intrusion detection |
| Smart Playback Analog | Line crossing / Area Intrusion / Motion Detection |
| Smart Playback IP Camera | Line crossing / Area Intrusion / Motion Detection |
| Cloud Storage | Support |
| Cloud Upgrade | Support |
| Ethernet | 1 RJ-45 10/100/1000Mbps self-adaptive Ethernet interface |
| Network Function | HTTPs, HTTP, TCP/IP, IPv4, UPnP, Onvif 2.6, RTSP, RTCP, UDP, SMTP, SNMP, Multicast, IGMP, NTP, DHCP, DNS, DDNS, FTP, P2P |
| SATA | 2 SATA Interfaces |
| Capacity | Up to 8TB for each HDD |
| Serial Interface | 1*Standard RS-485 (Half-Duplex) |
| USB Interface | Front panel: 1 × USB 2.0, Rear panel: 1 × USB 3.0 |
| Alarm In | 16-Channels |
| Alarm Out | 4-Channels |
| Power Supply | DC12V, 2A; Power Consumption ?20W (without HDD) |
| Working Environment | -10°C ~ 55°C (14°F ~ 131°F); Humidity 10% to 90% |
| Dimensions | 380 × 330.9 × 45 mm (14.96” × 13.03” × 1.77”) |
| Weight | 7.27 lb / 3.3 Kg |
