Inaxsys Security Systems | 2.4MP 1080P HDCVI 25X PTZ
Regular price
$1,157.01
Unit price
Brand: Inaxsys Security Systems
|
SKU:
940357
Regular price
$1,157.01
Unit price
Description
Description

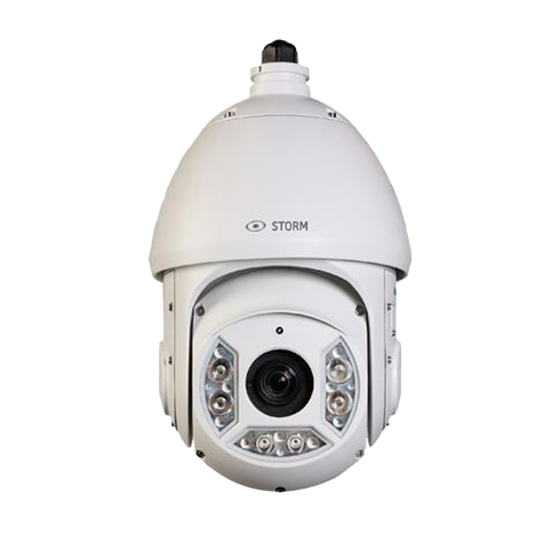

Inaxsys Security Systems INSDO2IRCPTZ25X | 2.4MP 1080P HDCVI 25X PTZ
Inaxsys Security Systems - INSDO2IRCPTZ25X - Features
- The 2.4MP 1080P HD over Coax 25X PTZ Camera offers advanced surveillance capabilities with exceptional detail and flexibility. Equipped with a 2-megapixel STARVIS™ CMOS sensor, this camera provides stunning 1080P video at up to 50/60 fps, ensuring smooth and clear images in various lighting conditions.
- With a powerful 25x optical zoom and Starlight Technology, it excels in low-light environments, delivering vibrant color and clarity even in darkness. The True Wide Dynamic Range (WDR) of 120dB enhances image quality in high-contrast scenes, while the impressive IR range of up to 150 meters allows for reliable nighttime monitoring. This PTZ camera is ideal for comprehensive surveillance in any setting.
Specifications
Specifications
Inaxsys Security Systems - INSDO2IRCPTZ25X - Product Categories
- Security
- Video Surveillance
- Video Accessories
Inaxsys Security Systems - INSDO2IRCPTZ25X - Specifications
| Brand Name | Inaxsys Security Systems |
|---|---|
| Manufacturer Part Number | INSDO2IRCPTZ25X |
| Item Description | 2.4MP 1080P HDCVI 25X PTZ |
| Type | Monitor Mount |
| UNSPSC Code | 31162308 |
| UPC | 685225607250 |
| Image Sensor | 1/2.8” progressive scan STARVIS™ CMOS 2 Megapixels |
| Effective Pixels | 1920(H) x 1080(V) |
| Scanning System | Progressive |
| DORI Distance | PAL: 1/3s~1/30,000s; NTSC: 1/4s~1/30,000s |
| Minimum Illumination | Color: 0.005 Lux at F1.6; B/W: 0.0005 Lux at F1.6; 0 Lux at F1.6 (IR on) |
| S/N Ratio | More than 55 dB |
| IR Distance | Distance up to 150m (492ft) |
| IR LEDs | 6 |
| Day/Night | Auto(ICR) / Color / B/W |
| Backlight Compensation | BLC / HLC / WDR(120dB) |
| White Balance | Auto, ATW, Indoor, Outdoor, Manual |
| Gain Control | Auto/Manual |
| Noise Reduction | Ultra DNR (2D / 3D) |
| Digital Zoom | 16x |
| Privacy Masking | Up to 24 areas |
| Defog | Supported |
| Flip | 180° |
| Focal Length | 4.8 mm – 120 mm |
| Max. Aperture | F1.6 – F4.4 |
| Viewing Angle | H: 62.8° ~ 2.6° |
| Focus Control | Auto / Manual |
| Pan/Tilt/Rotation | Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°, auto flip 180° |
| Max. Aperture | F1.6 – F4.4 |
| Viewing Angle | H: 62.8° ~ 2.6° |
| Optical Zoom | 25x |
| DORI Distance | Detect: 1613m (5292ft); Observe: 646m (2119ft); Recognize: 323m (1060ft); Identify: 161m (528ft) |
| Video Resolution | 1080P(1920×1080) / 720P(1280×720) |
| Frame Rate | 25/30fps at 1080P; 25/30/50/60fps at720P |
| Video out | 1-channel BNC high definition video output / CVBS standard definition video output (switchable) |
| Manual Control Speed | Pan: 0.1° ~160° /s; Tilt: 0.1° ~120° /s |
| Preset Speed | Pan: 240° /s; Tilt: 200° /s |
| Presets | 300 |
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan, Auto Scan |
| Speed Setup | Human-oriented focal Length / speed adaptation |
| Power up Action | Auto restore to previous PTZ and lens status after power failure |
| Idle Motion | Activate Preset / Scan / Tour / Pattern if there is no command |
| Video Interface | 1 |
| Audio Interface | 1 |
| Alarm In/Out | 2/1 |
| Power Supply | AC24V/3A(±10%) |
| Power Consumption | Less than 23W |
| Working Environment | -40°C ~ 60°C (-40°F ~ +140°F) / Less than 95% RH |
| Vandal Resistance & IP | IP66 |
| Weight | 18.3 lbs (8.3kg) |
| Dimensions | ?205(mm) x 336(mm) |
