Inaxsys Security Systems INXDO20360IRWA | INAXSYS NDAA 20MP 360 CAMERA (4X 5MP AUTO FOCUS)
Inaxsys Security Systems - INXDO20360IRWA - Features

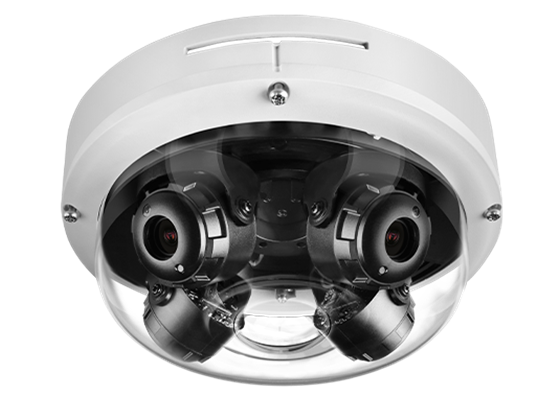

- Introducing our NDAA-compliant 360-degree MultiLens Vandal-Proof Camera, equipped with four 5MP AutoFocus lenses (2.8-8mm, Flexible sensor positioning with magnets). This advanced surveillance solution boasts a true Wide Dynamic Range (WDR) at 120dB, ensuring crystal-clear image quality in various lighting conditions.
- With an IK10 vandal resistance rating and IP67 weatherproofing, this camera is designed to withstand harsh environments. Additionally, it supports Power over Ethernet Plus (PoE+) for simplified installation and efficient power management.
- Please note that this camera operates exclusively using ONVIF standards for seamless integration with your existing security infrastructure. Trust in this cutting-edge technology to enhance your surveillance capabilities with reliability and precision.
Specifications
Specifications
Inaxsys Security Systems - INXDO20360IRWA - Product Categories
- Security
- Video Surveillance
- Surveillance Cameras
Inaxsys Security Systems - INXDO20360IRWA - Specifications
| Brand Name | Inaxsys Security Systems |
|---|---|
| Manufacturer Part Number | INXDO20360IRWA |
| Item Description | INAXSYS NDAA 20MP 360 CAMERA (4X 5MP AUTO FOCUS) |
| UNSPSC Code | 46171610 |
| UPC | 685225103530 |
| Image Sensor | 1/2.8” 5.69MP CMOS; Flexible sensor positioning with magnets |
| Channels | 4 |
| Total Pixel | 2704(H) x 2104(V) |
| Max Resolution | 2592(H) x 1944(V) |
| Min. Illumination | Color: 0.1 Lux; BW: 0.05 Lux |
| Only installer Video Output | 1 [CVBS 1.0V p-p (75Ohms)] |
| S/N (signal/noise) Ratio | 50dB |
| Scanning Mode | Progressive Scan |
| Focal Length | 2.8mm - 8mm |
| Aperture | F1.6 |
| Lens Type | Motorized Lens |
| IRIS Type | Auto Exposure |
| Horizontal Angle | D: 64 - 119 / H:51 - 93 / V: 39 - 68 |
| Pan / Tilt / Zoom | Optical Zoom: 2.8x |
| Shutter Speed | Auto / Manual (1/15 - 1/32,000); Anti-Flicker; Slow Shutter |
| Auto Gain Control | Auto |
| Day & Night | TDN (True Day & Night) |
| Digital Noise Reduction | Reduction 3D DNR |
| Wide Dynamic Range | 120dB or above (2x) |
| LEDs | Non-IR |
| LED Distance | No |
| Privacy Zone | Yes |
| Function | Motion Detection; Mirror & Flip |
| Video Compression | H.265; H.264; MJPEG |
| Resolution | H.265: 2592x1944 / 2560x1440 / 1920x1080 / 704x576 / 640x480 (4ch) H.264: 2592x1944 / 2560x1440 / 1920x1080 / 704x576 / 640x480 (4ch) MJPEG: 1920x1080 / 1280x720 / 800x600 / 768x432 / 704x576 (4ch) |
| Intelligent Codec | Yes |
| Multiple Profile Streaming Performance | 4 Triple Streaming (3rd only MJPEG) |
| Video BitRate | 100Kbps-10Mbps |
| BitRate Control | Multi Streaming CBR/VBR at H.265 (Controllable Frame Rate and Bandwidth) |
| Video BitRate extra comment | Multi-Rate for preview and Recording |
| Special Feature | Dynamic Region of Interest |
| Audio Compression | G.711 ulaw |
| Audio In/Out | 1 Line [1.0Vms, 3K ohm] / 1 Line |
| Alarm In/Out | 1 Line/1 Line |
| Microphone | No |
| Event Trigger | Motion Alarm, Network Disconnection, Temperature Critical, Illegal Login, Schedule, Sensor Detection |
| Event Notification | FTP; E-mail; Alarm Out; SD Card |
| Ethernet | RJ45 (1000Base-T(1Gbps)) |
| Protocol | TCP/IP; UDP; AutoIP; TRP(UDP/TCP); RTSP; NTP; HTTP; HTTPS; SSL; DNS; DDNS; DHCP; FTP; SMTP; ICMP; SNMPv1/v2/v3(MIB-2); ONVIF |
| Security | HTTPS(SSL); IP Filtering; 802.1x; Digest Authentication |
| Application Programming | CGI; API; ONVIF |
| Web Viewer | MS Edge; Google Chrome |
| VMS | Arkiv |
| Edge Storage | MicroSD; MicroSDHC; MicroSDXC |
| SD Card Socket | 4 |
| Power Supply | Adaptor is not included; DC12V; PoE IEEE 802.3 bt Class5 // DC Max: 28W; PoE Max: 31W |
| Operating Temperature | -20°C to 50°C / 10-90% RH (Non-Condensing) |
| Certification | FCC; CE; ROHS; UL |
| Material | Aluminum-Die Casting |
| IP & IK | IP67, IK10 |
| Color | White |
| Dimensions | 210mm x 92mm |
| Weight | 1.9kg |
