Inaxsys Security Systems | 32-Channel 4K NVR
Regular price
$976.42
Unit price
Brand: Inaxsys Security Systems
|
SKU:
10508309
Regular price
$976.42
Unit price
Description
Description

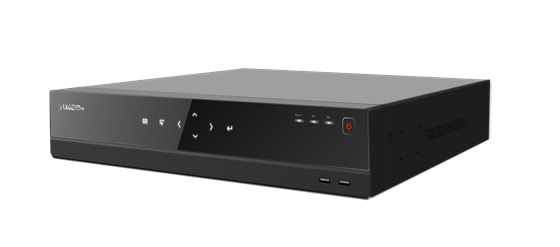

Inaxsys Security Systems LGNX324KN | 32 CHANNEL 4K NVR
Inaxsys Security Systems - LGNX324KN - Features
- This 32-channel IP video recorder supports up to 12MP resolution with H.265+/H.265 compression, offering 256Mbps bandwidth for smooth video streaming. It features advanced AI functions like SMD, perimeter protection, and face detection, along with asynchronous 4K HDMI outputs and compatibility with ONVIF and RTSP protocols.
- 32-Channels IP Video input, up to 12MP
- AI Camera : SMD, perimeter protection, face detection
- Incoming & Outgoing bandwidth : 256Mbps
- Supports ONVIF & RTSP protocols
- Asynchronous HDMI 1/ HDMI 2 outputs up to 4K
- H.265+/H.265
- Ordering Information
- Storage Capacity
- LGNX324KN4T
- 4 TB
- LGNX324KN8T
- 8 TB
- LGNX324KN10T
- 10 TB
- LGNX324KN12T
- 12 TB
- LGNX324KN16T
- 16 TB
- LGNX324KN20T
- 20 TB
- LGNX324KN24T
- 24 TB
- LGNX324KN28T
- 28 TB
- LGNX324KN32T
- 32 TB
- LGNX324KN36T
- 36 TB
- LGNX324KN40T
- 40 TB
Specifications
Specifications
Inaxsys Security Systems - LGNX324KN - Product Categories
- Security
- Video Surveillance
- Video Recorders
Inaxsys Security Systems - LGNX324KN - Specifications
| Brand Name | Inaxsys Security Systems |
|---|---|
| Manufacturer Part Number | LGNX324KN |
| Item Description | 32 CHANNEL 4K NVR |
| Capacity | 32 Channel |
| Type | Nvr |
| UNSPSC Code | 46171621 |
| UPC | 685225308829 |
| IP Video Input | 32-Channels |
| Audio Input | 1-Channel, RCA |
| HDMI 1 | 4K (3840 × 2160) /30Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| HDMI 2 | 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| VGA | 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| Audio Output | 2-Channels, RCA |
| Playback Resolution | 12MP / 8MP / 5MP / 4MP / 3MP / 1080P / 720P / D1 / CIF / QCIF |
| Decoding | 2-Channels @ 12M 20fps, 4-Channels @ 8M 30fps, 6-Channels @ 5M 30fps, 8-Channels @ 4M 30fps, 16-Channels @ 1080P 30fps |
| Synchronous Playback | 16-Channel |
| Smart Playback Mode | Enhanced playback with advanced search features, such as motion or object detection for faster review |
| Normal Playback | Standard, continuous playback of recorded footage |
| Segmented Playback | Splits recorded footage into time segments for easier navigation |
| Tagged Playback | Allows playback of video segments that have been labeled or tagged for easy access |
| Event Playback | Se concentre sur les événements enregistrés comme la détection de mouvement ou les alarmes |
| Picture Playback | View recorded footage in still image format for detailed inspection |
| Backup Mode | USB Device / Network / eSATA |
| Smart Detection | Advanced detection capabilities include Area Intrusion, Line Crossing, Region Entry/Exit, Rapid Movement, Object Removal, Unattended Object, Loitering, Parking, Face Detection, Crowd Gathering Detection, Blur Detection, Scene Change Detection, Audio Anomaly Detection, Human and Vehicle Detection, Smart Motion Detection (SMD), and Perimeter Protection (PP) |
| Smart Playback | Face detection / Line Crossing / Area Intrusion / Motion Detection / Human Detection / Vehicle Detection |
| Cloud Storage | Supported |
| Cloud Upgrade | Supported |
| Incoming Bandwidth | 256 Mbps |
| Outgoing Bandwidth | 256 Mbps |
| Ethernet | 2 RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet interface |
| Network Compatibility | HTTPs, HTTP, TCP/IP, IPv4, UPnP, RTSP, UDP, SMTP, SNMP, NTP, DHCP, DNS, IP Filter, DDNS, FTP, P2P, ONVIF |
| Smart Phone | IOS (iPhone, iPad), Android (Phone, Pad) |
| SATA | 4 SATA interfaces |
| Capacity | Up to 18TB capacity for each HDD |
| USB Interface | Front panel: 2 × USB 2.0, Rear panel: 1 × USB 3.0 |
| eSATA | 1 × eSATA |
| Alarm In | 16-Channels |
| Alarm Out | 4-Channels |
| Power Supply | AC 100 ~ 240V |
| Power Consumption | ?20W (without HDD and POE) |
| Working Environment | -10°C ~ +55°C (14°F ~ 131°F)/10% ~ 90%RH |
| Dimensions | (W×D×H): 440 × 448 × 70 mm (17.32" × 17.64" × 2.76") |
| Weight | 13.44 lb / 6.1 Kg |
