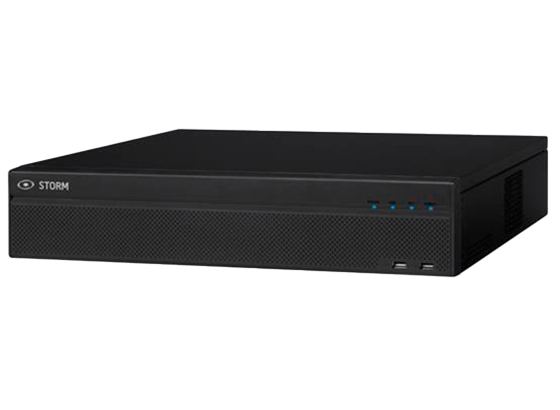

Inaxsys Security Systems | 32-Channel 4K NVR (No Drives)
Regular price
$1,576.17
Unit price
Brand: Inaxsys Security Systems
|
SKU:
924095
Regular price
$1,576.17
Unit price
Description
Description
Inaxsys Security Systems INS324K | 32 CHANNEL 4K NVR (No Drives)
Inaxsys Security Systems - INS324K - Features
- The 32-Channel 4K 2U NVR with 8 HDD bays is a robust solution for high-demand video surveillance environments, capable of handling up to 1024 Mbps incoming bandwidth and supporting ultra-clear 32MP resolution for preview and playback. This NVR leverages H.265+ and H.264+ smart decoding, optimizing storage and bandwidth efficiency while maintaining high video quality.
- Enhanced with edge AI features, it includes advanced analytics like Area Protection and Face Detection, bringing intelligent monitoring to your security setup. With 8 SATA ports supporting up to 16 TB per HDD, this NVR offers extensive storage capacity, ensuring reliable, long-term data retention for large-scale surveillance systems.
Specifications
Specifications
Inaxsys Security Systems - INS324K - Product Categories
- Security
- Video Surveillance
- Video Recorders
Inaxsys Security Systems - INS324K - Specifications
| Brand Name | Inaxsys Security Systems |
|---|---|
| Manufacturer Part Number | INS324K |
| Item Description | 32 CHANNEL 4K NVR (No Drives) |
| Capacity | 32 Channel |
| Type | Nvr |
| UNSPSC Code | 46171621 |
| UPC | 685225604730 |
| Raid | - |
| Main Processor | Intel Dual-core Processor |
| Operating System | Embedded LINUX |
| Operation Interface | Web; local GUI |
| Area Protector Performance (Channels) | 24 channels (by recorder), 10 IVS rules for each channel; 32 channels (by camera) |
| Area Protector AI Search | Search for pictures by channel, time and event type |
| Smart Motion Detection Performance (Channels) | 32 channels (by camera), 32 channels (by recorder) |
| Smart Motion Detection AI Search | Search by target classification (Human, vehicles). Minimizing false alerts triggered by foliage, precipitation, and shifts in lighting conditions |
| Face Detection Performance (Channels) | 32 channels (by camera), 4 channels (by recorder) |
| Face Attributes | Mask; beard; gender; age; glasses; expression |
| AI Search Rate | Up to12 face images/s (by recorder); up to 20 face images/s (by rec+cam) |
| Facial Recognition Performance (Channels) | 32 ch-s (by camera); 20 ch-s (by camera + recorder); 4 ch-s (by recorder) |
| Capacity for Facial Databases | Support for 40 facial databases comprising 300,000 images, with a combined storage capacity of 48 GB. Each facial image can include details such as name, gender, birthdate, address, credential type, credential number, country/region, and state |
| Facial Recognition AI Search | Search for pictures by channel, time and face attributes |
| Video Metadata Performance (Channels) | 32 channels (by camera); 8 channels (by recorder) |
| Human Attributes | Color, type, bottom color, bottom type, hat, bag, age, gender, umbrella |
| Motor Vehicle / Non-motor Vehicle Attributes | License plate, plate color, vehicle body, vehicle model, vehicle logo, calling, seatbelt, vehicle interior, vehicle registration location / Vehicle model, vehicle color, number of persons, helmet |
| Video Metadata AI Search | Supports searching for target video by metadata |
| Advanced smart functions AI by Camera | People counting; stereo analysis; crowd distribution; vehicle density; object monitoring; ANPR, create up to 20,000 plate numbers; blocklist and allowlist (32 channels) |
| Video Channels | 32 channels |
| Network Bandwidth | AI disabled: Entry, retention at 1024Mbps, transmission at 800Mbps AI enabled: Entry, retention at 512Mbps, transmission at 400Mbps |
| Resolution | 32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 5 MP; 4 MP; 1080p; 720p; D1 |
| Decoding Capability | AI disabled: 2-channel 32MP at 20fps; 2-channel 24MP at 20fps; 4-channel 16MP at 30fps; 5-channel 12MP at 30fps; 8-channel 8MP at 30fps; 12-ch 5MP at 30fps; 16-ch 4MP at 30fps; 32-ch 2MP at 30fps AI enabled: 1-channel 32MP at 20fps; 1-channel 24MP at 20fps; 2-channel 16MP at 30fps; 4-channel 12MP at 30fps;4-channel 8MP at 30fps; 8-channel 5MP at 30fps; 12-ch 4MP at 30fps; 24-ch 2MP at 30fps |
| Video Output | 2-channel VGA, 4-channel HDMI video output |
| Multi-screen Display | Main screen: 1/4/8/9/16/25/36; Sub screen: 1/4/8/9/16/25/36 |
| Third Party Camera Access | Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, Canon and more |
| Video Compression | Vidéo H.265+; H.264+; H.265; H.264; MJPEG |
| Audio Compression | G.711A; G.711U; PCM; G726 |
| Multi-channel Playback | Up to 16 channels |
| Record Mode | Manual; alarm; motion detection; scheduled |
| Backup | Portable hard drive, eSATA disk, burner, USB device and network |
| Playback Mode | 1. Play, pause, stop, fast forward, fast backward, rewind, play by frame 2. Full screen; backup (cut/file); partially enlarge; audio on/off |
| Network Mobile Phone Access | Android; iOS |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration; ISCSI |
| Interoperability | ONVIF (profile T/S/G); CGI; SDK |
| Network Mode | Multi-address mode, load balance, fault tolerance and other network port binding modes |
| Alarm General | Motion detection; video tampering; video loss; scene changing, PIR alarm, IPC external alarm |
| Anomaly | Offline cameras; storage error; full storage; IP conflict; MAC conflict; login locked; network security anomaly; abnormal behavior of fan |
| Smart Alarm | Area Protector; face detection & recognition; SMD; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map |
| Alarm Linkage | Record; snapshot; IPC external alarm output; buzzer; log, preset; email |
| Disk Group | Supported |
| Hot Swapping | Supported |
| RAID | 0/1/5/6/10 |
| Audio Input | 1 channel, RCA connector |
| Audio Output | 2 channel, RCA connector |
| HDD | 8 SATA port, up to 16 TB. The maximum HDD capacity varies with environment temperature |
| USB | 2 front USB 2.0 ports, 2 rear USB 3.0 ports |
| Alarm In/Out | 16/8 |
| HDMI/VGA | 4/2 |
| eSATA | 1 |
| RS-232 | 1 |
| RS-485 | 1 × A/B |
| Network | 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet port |
| Certification | FCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032:2020, Class A; EN IEC 61000-3-2:2019; EN 61000-33:2013+A1:2019; EN 55024:2010+A1:2015; EN 55035:2020; EN 501304:2011+A1:2014; CE-LVD: EN 62368-1:2014+A11:2017 |
| Installation | Rack or desktop |
| Power Supply | 100–240 VCA, 50/60 Hz |
| Power Consumption | Less than 18W (without HDD) |
| Unladen/Laden Weight | 14.11 lbs (6.4kg)/22.82 lbs (10.35kg) |
| Dimensions | 444.0 mm × 456.6 mm x 95.0 mm (17.48” × 17.98” × 3.74”) (W × D × H) |
| Operating Temperature | 10°C to +55°C (+14°F to +131°F); 10%–93% (RH) |
| Installation | Desktop or rack |
