Brand: Inaxsys Security Systems | SKU: 10508253

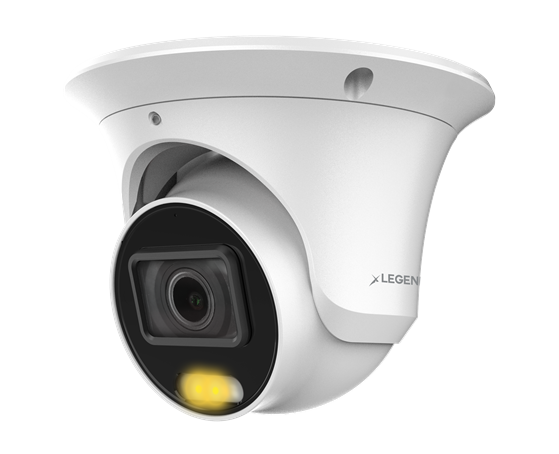

Inaxsys Security Systems | 4.1MP ChromaView Fixed Lens Turret Network Camera

$277.76

  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Description
Inaxsys Security Systems LGNXTO4CVWF | 4.1 MP CHROMAVIEW FIXED TURRETNETWORK CAMERA

Inaxsys Security Systems - LGNXTO4CVWF - Features

  • This advanced surveillance camera delivers 4MP high-resolution imaging with 130 dB superior True WDR technology, ensuring clear and balanced footage in challenging lighting conditions. Featuring ChromaView for 24/7 color imaging, IP67-rated water and dust resistance, a built-in microphone with an audio and alarm interface, and advanced H.265+ compression, it provides reliable security in any environment.
  • 4MP High-Resolution Imaging
  • 130 dB Superior True WDR Technology
  • ChromaView: 24/7 Color Imaging
  • IP67: Water and dust resistant
  • Built-in microphone, audio & alarm interface
  • Advanced H.265+ Compression

Specifications

Inaxsys Security Systems - LGNXTO4CVWF - Product Categories

  • Security
  • Video Surveillance
  • Surveillance Cameras

Inaxsys Security Systems - LGNXTO4CVWF - Specifications

Brand NameInaxsys Security Systems
Manufacturer Part NumberLGNXTO4CVWF
Item Description4.1 MP CHROMAVIEW FIXED TURRETNETWORK CAMERA
Lens TypeFixed
Position TypeFixed
UNSPSC Code46171610
UPC685225308928
Image Sensor1/1.8” Progressive Scan CMOS Sensor
Minimum IlluminationColor: 0.0005 Lux, 0 Lux with light
Illumination Distance30m / 98.43ft (Warm light)
Strobe Light-
Smart IR-
Pan / Tilt / Rotation RangePan: 0° ~ 360° Tilt: 0° ~ 75° Rotation: 0° ~ 360°
Focal Length2.8 mm
ApertureF1.0
Field of View2.8 mm: Horizontal FOV: 112°, Vertical FOV: 60°, Diagonal FOV: 131°
Lens MountM16
DORI2.8 mm: Detection: 60m, Observe: 23.5m, Recognize: 11.8m, Identify: 5.9m
Maximum Resolution4MP (2688 × 1520)
Frame Rate (Main Stream)50Hz: 25fps 4MP (2688 × 1520), 25fps 4M (2560 × 1440), 25fps 1080P (1920 × 1080); 60Hz: 30fps 4MP (2688 × 1520), 30fps 4MP (2560 × 1440), 30fps 1080P (1920 × 1080)
Frame Rate (Sub Stream)50Hz: 25fps 720P (1280 × 720), 25fps D1(704 × 576), 25fps CIF(352 × 288); 60Hz: 30fps 720P (1280 × 720), 30fps D1 (704 × 480) , 30fps CIF ( 352 × 240)
Frame Rate (Third Stream)50Hz: 25fps CIF (352 × 288); 60Hz: 30fps CIF (352 × 240)
Image SettingBrightness / Contrast / Saturation / Hue / Sharpness
Shutter TimeAuto/Manual, 1/3 ~ 1/100000s
Day/NightColor Imaging, 24/7
Wide Dynamic Range130 dB
Digital Noise Reduction2D/3D DNR
BLCSupported
HLCSupported
ROISupported
RotateSupported
Video CompressionH.264 / H.264+ / H.265 / H.265+ / MJPEG
H.264 Codec ProfileBase / Main / High profile
H.265 Codec ProfileMain Profile
Video Bit Rate11 Kbps ~ 10 Mbps
Triple StreamsSupported
Audio CompressionG.711A, G.711U
Audio Bit Rate64 Kbps
Basic EventsMotion detection, Video Tampering
Smart EventsSmart Motion Detection, Line Crossing, Intrusion Detection, Monitoring entry and exit for specific regions (with alarm triggers for human and vehicle detection) and Scene Alteration Detection
Face DetectionSupported
Network StorageNAS (NFS, SMB/CIFS), ANR
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P
System CompatibilityOnvif (Profile S, Profile G, T), SDK
SecurityPassword protection, complex passwords, HTTPS encryption, IP address filtering, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
UsersMaximum 40 users
Web BrowsersPlug-in required live view: IE 10, IE 11; Local service: Chrome 57.0+, Firefox 52.0+
Mobile SurveillanceiOS, Android
Communication Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
StorageUp to 256GB
MicrophoneSupported
Speaker-
Audio I/O1/1
Alarm I/O1/1
Reset ButtonSupported
Operating Conditions40°C ~ 60°C (-40°F ~ 140°F); Humidity 95% or less (non-condensing)
Power SupplyDC12V ± 25%
PoEPoE (802.3 af)
Power ConsumptionLess than 7W
Protection LevelIP67
MaterialMetal
Dimensions? 140 × 104.7 mm (? 5.51’’ × 4.12’’)
Gross Weight1.92lb / 870g
