Brand: Inaxsys Security Systems
|
SKU:
10508265
Inaxsys Security Systems | 4K Active Deterrence Fixed Lens Turret Network Camera
Regular price
$281.46
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Inaxsys Security Systems | 4K Active Deterrence Fixed Lens Turret N...
Regular price
$281.46
Unit price
Brand: Inaxsys Security Systems
|
SKU:
10508265
Regular price
$281.46
Unit price
Description
Description

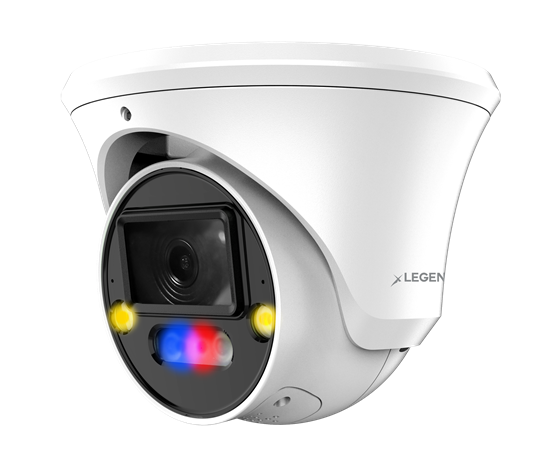

Inaxsys Security Systems LGNXTO4KADWF | 4K ACTIVE DETERRENCE TURRET NETWORK CAMERA FIXED LENS
Inaxsys Security Systems - LGNXTO4KADWF - Features
- This advanced surveillance camera offers 8MP high-resolution imaging with extreme AI analytics, providing smart target recognition of humans and vehicles powered by deep learning. Featuring 120 dB True WDR technology, active deterrence with red and blue lights, IP67 water and dust resistance, embedded microphone and speaker with audio and alarm interface, and advanced H.265+ compression, it ensures reliable security in any environment.
- 8MP High-Resolution Imaging
- High IQ: Extreme AI Analytics
- Smart target recognition of humans & vehicles powered by deep learning
- 120 dB true WDR Technology
- Active Deterrence with Red & Blue lights
- IP67: Water and dust resistant
- Built in microphone & speaker, audio & alarm interface
- Advanced H.265+ Compression
Specifications
Specifications
Inaxsys Security Systems - LGNXTO4KADWF - Product Categories
- Security
- Video Surveillance
- Surveillance Cameras
Inaxsys Security Systems - LGNXTO4KADWF - Specifications
| Brand Name | Inaxsys Security Systems |
|---|---|
| Manufacturer Part Number | LGNXTO4KADWF |
| Item Description | 4K ACTIVE DETERRENCE TURRET NETWORK CAMERA FIXED LENS |
| Lens Type | Fixed |
| Position Type | Fixed |
| UNSPSC Code | 46171610 |
| UPC | 685225308997 |
| Image Sensor | 1/2.8” Progressive Scan CMOS Sensor |
| Minimum Illumination | Color: 0.003 Lux, 0 Lux with IR on |
| Illumination Distance | 30m / 98.43ft (IR light) |
| Illumination Distance | 30m / 98.43ft (Warm Light) |
| Strobe Light | - |
| Smart IR | Supported |
| Pan / Tilt / Rotation Range | Pan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotation: 0° ~ 360° |
| Focal Length | 2.8 mm |
| Aperture | F1.0 |
| Field of View | 2.8 mm: F1.0, Horizontal FOV: 105°, Vertical FOV: 56°, Diagonal FOV: 126° |
| Lens Mount | M12 |
| DORI | 2.8 mm Detection: 94m, Observe: 36.7m, Recognize: 18.4m, Identify: 9.2m |
| Maximum Resolution | 8MP (3840 × 2160) |
| Frame Rate (Main Stream) | 50Hz: 25fps 8MP (3840 × 2160), 25fps 6MP (3200 × 1800) , 25fps 5MP (3072 × 1728), 25fps 4MP (2560 × 1440) , 25fps 1080P(1920 × 1080); 60Hz: 30fps 8MP (3840 × 2160), 30fps 6MP (3200 × 1800), 30fps 5MP (3072 × 1728), 30fps 4MP (2560 × 1440), 30fps 1080P (1920 × 1080) |
| Frame Rate (Sub Stream) | 50Hz: 25fps 720P (1280 × 720), 25fps D1 (704 × 576) , 25fps CIF (352 × 288) (Default D1); 60Hz: 30fps 720P (1280 × 720), 30fps D1 (704 × 480), 30fps CIF (352 × 240) |
| Frame Rate (Third Stream) | 50Hz: 25fps CIF (352 × 288); 60Hz: 30fps CIF (352 × 240) |
| Shutter Time | Auto/Manual, 1/3 ~ 1/100000s |
| Day/Night | IR Cut filter |
| Wide Dynamic Range | 120 dB |
| Digital Noise Reduction | 2D/3D DNR |
| BLC | Supported |
| HLC | Supported |
| ROI | Supported |
| Rotate | Supported |
| Video Compression | H.264 / H.264+ / H.265 / H.265+ / MJPEG |
| H.264 Codec Profile | Base / Main / High profile |
| H.265 Codec Profile | Main Profile |
| Video Bit Rate | 11 Kbps ~ 16 Mbps |
| Triple Streams | Supported |
| Audio Compression | G.711A, G.711U |
| Audio Bit Rate | 64 Kbps |
| Basic Events | Motion detection, Video Tampering |
| Smart Events | Line Crossing Detection, Area Intrusion, Monitoring entry and exit for specific regions (supports alarm triggering by specified target types: human and vehicle), Scene Alteration Detection, Video Blur Detection |
| Face Detection | Supported |
| Network Storage | NAS (NFS, SMB/CIFS), ANR |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P |
| System Compatibility | Onvif (Profile S, Profile G, T), SDK |
| Security | Password protection, complex passwords, HTTPS encryption, IP address filtering, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Users | Maximum 40 users |
| Web Browsers | Plug-in required live view: IE 10, IE 11; Local service: Chrome 57.0+, Firefox 52.0+ |
| Mobile Surveillance | iOS, Android |
| Communication Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Storage | Up to 256GB |
| Microphone | Supported |
| Speaker | Supported |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Reset Button | Supported |
| Operating Conditions | -40°C ~ 60°C (-40°F ~ 140°F) Humidity 95% or less (non-condensing) |
| Power Supply | DC12V ± 25% |
| PoE | 802.3 af |
| Power Consumption | Less than 9.5W |
| Protection Level | IP67 |
| Material | Metal |
| Dimensions | ? 144.5 × 113.5 mm (? 5.68’’ × 4.47’’) |
| Gross Weight | 2.30lb / 1045g |
