Description
Description

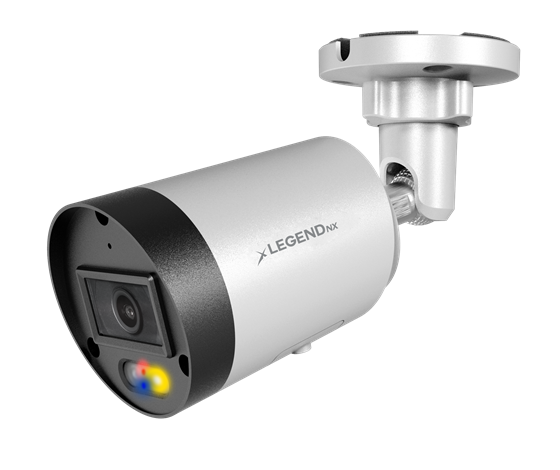

Inaxsys Security Systems LGNXBO4KDIWF | 4K INTELLIGENT DUAL LIGHT BULLET NETWORK CAMERA FIXED LENS
Inaxsys Security Systems - LGNXBO4KDIWF - Features
- This advanced surveillance camera features 8MP high-resolution imaging and smart target recognition for humans and vehicles, powered by deep learning, ensuring accurate and efficient classification. With active deterrence through red and blue lights, 120 dB True WDR technology, IP67 water and dust resistance, a built-in microphone, and advanced H.265+ compression, it provides reliable security in any environment.
- 8MP High-Resolution Imaging
- Smart target recognition for humans and
- vehicles, powered by deep learning
- Active Deterrence with Red & Blue lights
- 120 dB true WDR Technology
- IP67: Water and dust resistant
- Advanced H.265+ Compression
- Built-in microphone
Specifications
Specifications
Inaxsys Security Systems - LGNXBO4KDIWF - Product Categories
- Security
- Video Surveillance
- Surveillance Cameras
Inaxsys Security Systems - LGNXBO4KDIWF - Specifications
| Brand Name | Inaxsys Security Systems |
|---|---|
| Manufacturer Part Number | LGNXBO4KDIWF |
| Item Description | 4K INTELLIGENT DUAL LIGHT BULLET NETWORK CAMERA FIXED LENS |
| Form Factor | Bullet |
| Lens Type | Fixed |
| Position Type | Fixed |
| UNSPSC Code | 46171610 |
| UPC | 685225308881 |
| Image Sensor | 1/2.7” Progressive Scan CMOS Sensor |
| Minimum Illumination | Color: 0.006 Lux (F1.6 , AGC ON), 0 Lux with light |
| Illumination Distance | 30m / 98.43ft (IR light) 30m / 98.43ft (Warm light) |
| Strobe Light | - |
| Smart IR | Supported |
| Embedded Features | Built-in Mic, Built-in Reset Button, Red & Blue Light Warning, Smart IR Light, Illuminator (Warm Light) |
| External Features | DC12V ± 25% |
| Viewing Angle | Pano: 0° ~ 360° ; Tilt: 0° ~ 90° ; Rotation: 0° ~ 360° |
| Focal Length | 2.8mm |
| Aperture | F1.6 |
| Field of View | 2.8mm: Horizontal FoV: 110°, Vertical FoV: 58°, Diagonal FoV: 128° |
| Thread Mount | M12 |
| Maximum Resolution | 8MP (3840 × 2160) |
| Frame Rate (Main Stream) | 50Hz: 20fps 8MP (3840 × 2160), 20fps 6MP (3200 × 1800), 25fps 5MP (3072 × 1728), 25fps 4MP (2560 × 1440), 25fps 1080P (1920 × 1080); 60Hz: 20fps 8MP (3840 × 2160), 20fps 6MP (3200 × 1800), 30fps 5MP (3072 × 1728), 30fps 4MP (2560 × 1440), 30fps 1080P (1920 × 1080) |
| Frame Rate (Sub Stream) | 50Hz: 25fps 720P (1280 × 720), 25fps D1 (704 × 576), 25fps CIF (352 × 288) (Default D1); 60Hz: 30fps 720P (1280 × 720), 30fps D1 (704 × 480), 30fps CIF (352 × 240) |
| Frame Rate (Third Stream) | 50Hz: 25fps CIF (352 × 288); 60Hz: 30fps CIF (352 × 240) |
| Image Calibration | Brightness / Contrast / Saturation / Hue / Sharpness |
| Shutter Time | Auto/Manual, 1/3 ~ 1/100000s |
| Day/Night | IR Cut Filter |
| Wide Dynamic Range | True 120 dB |
| Digital Noise Reduction | DNR 2D/3D |
| Image Features | Backlight Compensation (BLC), Highlight Compensation (HLC), Region of Interest (ROI), Rotation |
| HLC | Supported |
| ROI | Supported |
| Video Compression | H.265+ / H.265/H.264 / H.264+ / MJPEG (Sub Stream) |
| Rotate | Supported |
| H.265 Codec Profile | Main Profile |
| H.264 Codec Profile | Base / Main / High profile |
| Video Bit Rate | 11 Kbps ~ 13 Mbps |
| Video Stream | Triple |
| Audio Compression | G.711A, G.711U |
| Audio Bit Rate | 64 Kbps |
| Basic Events | Motion detection, Video tampering |
| Smart Events | Advanced motion analysis includes boundary crossing, zone penetration, sector access, and perimeter exit, with alarm activation support for specific targets: persons and vehicles. |
| Network Storage | NAS (NFS, SMB/CIFS) |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P |
| Face Detection | - |
| System Compatibility | Onvif (Profile S, Profile G, T), SDK |
| Security | User authentication, IP address filtering, Video mask |
| Users | Maximum 40 users |
| Web Browsers | Internet Explorer 10 and 11 need a plug-in for live view support. Chrome 57.0+ and Firefox 52.0+ are required for local service. |
| Mobile Surveillance | iOS, Android |
| Communication Interface | 1 RJ45 10 M/100 M Self-Adaptive Ethernet Port |
| Storage | Up to 256GB |
| NDAA Compliant | Completely |
| Operating Conditions | -30°C ~ 60°C (-22°F ~ 140°F) Humidity 95% or less (non-condensing) |
| Power Supply | DC12V ± 25%/ PoE (802.3 af) |
| Microphone | Supported |
| Power Consumption | Less than 6.5W |
| Protection Level | IP67 |
| Speaker | - |
| Material | Metal |
| Audio I/O | - |
| Dimensions | ? 68 × 172.3 mm (? 2.67’’ × 6.78’’) |
| Alarm I/O | - |
| Gross Weight | 1.07lb / 485g |
| Active Deterrence Features | Red/Blue Light Warning |
| Humidity | 95% or less (non-condensing) |
| PoE | PoE (802.3 af) |
