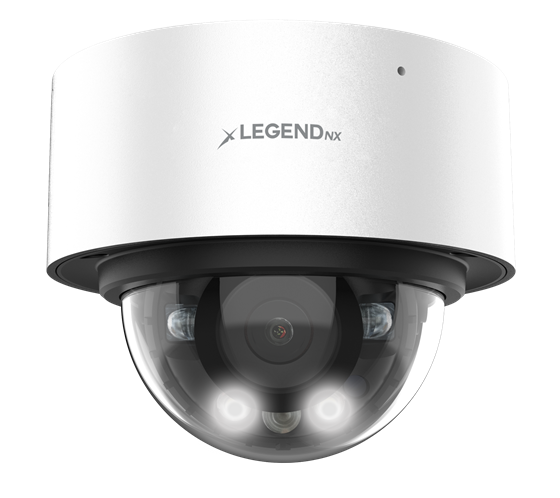

Inaxsys Security Systems | 4K IQ Fixed Lens Dome Network Camera
Regular price
$258.95
Unit price
Brand: Inaxsys Security Systems
|
SKU:
10508264
Regular price
$258.95
Unit price
Description
Description
Inaxsys Security Systems LGNXDO4KIQWF | 4K IQ FIXED LENS DOME NETWORK CAMERA
Inaxsys Security Systems - LGNXDO4KIQWF - Features
- This advanced surveillance camera offers 8MP high-resolution imaging and extreme AI analytics, ensuring smart target recognition of humans and vehicles powered by deep learning. Featuring 120 dB True WDR technology, IP67 water and dust resistance, IK10 vandal-proof protection, a built-in microphone for live audio, and advanced H.265+ compression, it provides reliable security in any environment.
- 8MP High-Resolution Imaging
- High IQ: Extreme AI Analytics
- Smart Target Recognition of humans & vehicles powered by deep learning
- 120 dB true WDR Technology
- IP67: Water and dust resistant
- IK10: Vandal-Proof
- Built-in microphone for live audio
- Advanced H.265+ Compression
Specifications
Specifications
Inaxsys Security Systems - LGNXDO4KIQWF - Product Categories
- Security
- Video Surveillance
- Surveillance Cameras
Inaxsys Security Systems - LGNXDO4KIQWF - Specifications
| Brand Name | Inaxsys Security Systems |
|---|---|
| Manufacturer Part Number | LGNXDO4KIQWF |
| Item Description | 4K IQ FIXED LENS DOME NETWORK CAMERA |
| Form Factor | Dome |
| Lens Type | Fixed |
| Position Type | Fixed |
| UNSPSC Code | 46171610 |
| UPC | 685225308942 |
| Image Sensor | 1/2.8” Progressive Scan CMOS Sensor |
| Minimum Illumination | Color: 0.006 Lux, 0 Lux with IR on |
| Illumination Distance | 30m / 98.43ft (IR Light) |
| Strobe Light | Supported |
| Embedded Features | Built-in Mic, Built-in Reset Button, Smart IR Light, Strobe Light |
| External Features | DC12V ± 25% |
| Viewing Angle | Pan: 0° ~ 355°; Tilt: 0° ~ 75°; Rotation: 0° ~ 355° |
| Focal Length | 2.8mm |
| Aperture | F1.6 |
| Field of View | 2.8mm: Horizontal FOV: 106°, Vertical FOV: 58°, Diagonal FOV: 125° |
| Lens Mount | M12 |
| DORI - 2.8mm | Detection: 88m; Observe: 34.7m; Recognize: 17.4m; Identify: 8.7m |
| Maximum Resolution | 8MP (3840 × 2160) |
| Frame Rate (Main Stream) | 50Hz: 25fps 8MP (3840 × 2160), 25fps 6MP (3200 × 1800), 25fps 5MP (3072 × 1728), 25fps 4MP (2560 × 1440), 25fps 1080P (1920 × 1080); 60Hz: 30fps 8MP (3840 × 2160), 30fps 6MP (3200 × 1800), 30fps 5MP (3072 × 1728), 30fps 4MP (2560 × 1440), 30fps 1080P (1920 × 1080) |
| Frame Rate (Sub Stream) | 50Hz: 25fps 720P (1280 × 720), 25fps D1 (704 × 576), 25fps CIF (352 × 288) (Default D1) ; 60Hz: 30fps 720P (1280 × 720), 30fps D1 (704 × 480), 30fps CIF (352 × 240) |
| Frame Rate (Third Stream) | 50Hz: 25fps CIF (352 × 288) ; 60Hz: 30fps CIF (352 × 240) |
| Image Setting | Brightness / Contrast / Saturation / Hue / Sharpness |
| Shutter Time | Auto/Manual, 1/3 ~ 1/100000s |
| Day/Night | IR Cut Filter |
| Wide Dynamic Range | 120 dB |
| Digital Noise Reduction | DNR 2D/3D |
| Image Features | Backlight Compensation (BLC), Highlight Compensation (HLC), Region of Interest (ROI), Rotation, Defog |
| HLC | Supported |
| ROI | Supported |
| Rotate | Supported |
| Video Compression | H.264 / H.264+ / H.265 / H.265+ / MJPEG |
| H.264 Codec Profile | Base / Main / High profile |
| H.265 Codec Profile | Main Profile |
| Video Bit Rate | 11 Kbps ~ 16 Mbps |
| Video Streams | Triple |
| Audio Compression | G.711A, G.711U |
| Audio Bit Rate | 64 Kbps |
| Basic Events | Motion Detection (supports alarm activation based on designated target types, including humans and vehicles), Video Tampering |
| Smart Events | Advanced motion analysis, boundary crossing, zone penetration, sector access, perimeter exit (supports alarm activation based on specified target categories: person and vehicle) and Scene Alteration Detection |
| Face Detection | Supported |
| Network Storage | NAS (NFS, SMB/CIFS), ANR |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P |
| System Compatibility | Onvif (Profile S, Profile G, Profile T), SDK |
| Security | Password protection, complex passwords, HTTPS encryption, IP address filtering, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Users | Maximum 40 users |
| Web Browsers | Plug-in required live view: IE 10, IE 11; Local service: Chrome 57.0+, Firefox 52.0+ |
| Mobile Surveillance | iOS, Android |
| Communication Interface | 1 RJ45 10 M/100 M Self-Adaptive Ethernet port |
| Storage | Up to 256GB |
| Microphone | Supported |
| Speaker | - |
| Audio I/O | - |
| Alarm I/O | - |
| Reset Button | Supported |
| Operating Conditions | -40°C ~ 60°C (-40°F ~ 140°F) |
| Humidity | 95% or less (non-condensing) |
| Power Supply | DC12V ± 25% |
| PoE | PoE (802.3 af) |
| Power Consumption | Less than 9W |
| Protection Level | IP67 |
| IK Rating | IK10 |
| Material | Metal |
| Dimensions | ? 114 × 91.8 mm (? 4.49’’ × 3.61’’) |
| Gross Weight | 1.76lb / 800g |
